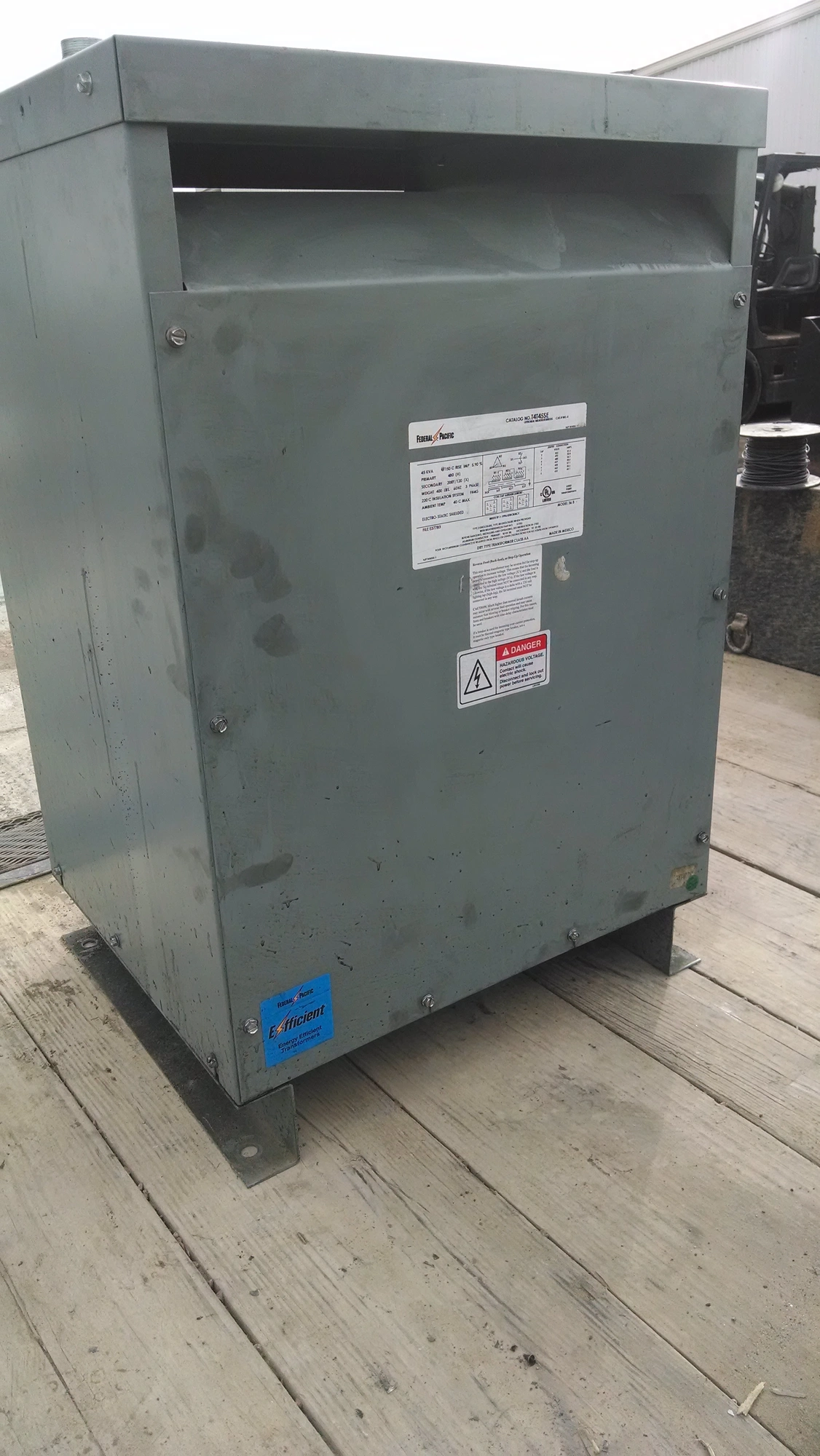

USED FEDERAL PACIFIC 45 KVA

(1) PREOWNED FEDERAL PACIFIC 3 PHASE DRY TYPE TRANSFORMER CLASS AA MODEL 36 B

SPECIFICATIONS:

45 KVA @ 150 C RISE IMP 5.90%
PRIMARY ---------------------------------- 480 (H)
SECONDARY -------------------------------- 208Y/120 (X)
WEIGHT ----------------------------------- 400 LBS

60 HZ
3 PH
220 C INSULATION SYSTEM FH4G
AMBIENT TEMP ------------------------------ 40 C MAX

FEATURES:

REVERSE FEED (BACK-FEED), OR STEP-UP OPERATION
-THIS STEP-DOWN TRANSFORMER MAY BE REVERSE FED FOR STEP-UP
OPERATION TO INCREASE VOLTAGE

-ELECTRO-STATIC SHIELDED

DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
