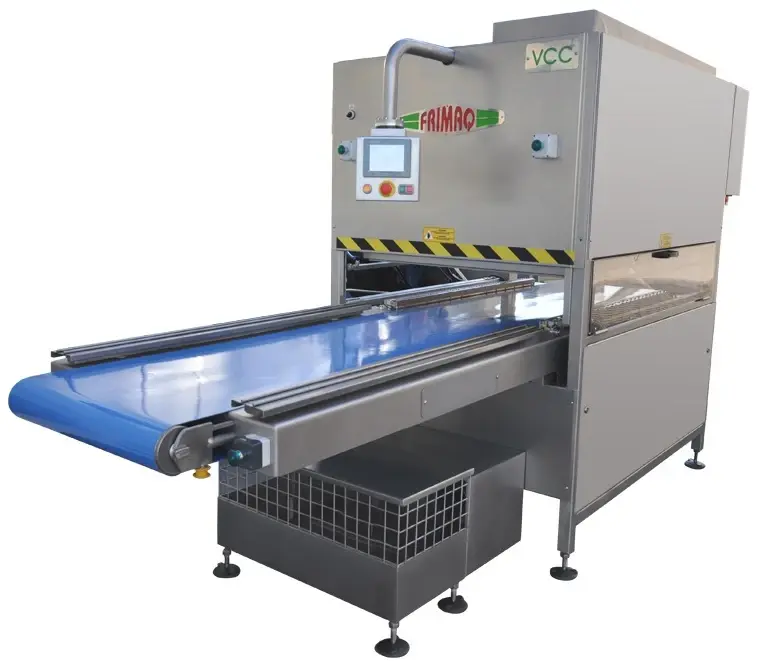

Frimaq Model VCC-Plus Vacuum Packaging Machine

The Frimaq Model VCC-Plus Vacuum Packaging Machine is an automatic process packaging machine, which takes product placed in a bag made of flexible or shrinkable material, then vacuum seals the product.
The Frimaq Model VCC-Plus Vacuum Packaging Machine Meats CE Standards.
RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Frimaq Model VCC-Plus Vacuum Packaging Machine and many others. Call or visit us today for more information!
Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879
[email protected]
The machine can be installed on both sides, towards the left or the right side.
Vacuum packaging machine of any type of product and any size.
Adjustable screen.
10 programs for different packaging products.
Vacuum by millibars, by time or both at the same time
Intermittent vacuum.
Vacuum alarm not reached.
Soft-air: filling of soft blinking air.
Shrinkable and non-shrinkable vacuum bags.
Operating mode (manual) (semi-automatic) and (automatic).
Special sealing for products containing oil, blood, fat, etc.
Movement of conveyor belt with adjustable speed.
Speed from 1 to 2.5 cycles/minute according to pumps
Securities according to standards.
Pneumatic system SMC and Festo.
Stainless steel chassis ultimate design.
Leveling feet of level and height.
Side doors for an easy access to maintenance.
Motor-driven conveyor belt by drum motor.
Easy cleaning of the conveyor belt suitable for food products.
Lip silicone gasket which closes the chamber automatically without pressure.
Easy changing of the lid gasket without adhesives nor tools.
Compressed air consumption: 800-1200 liters/minute/6 bars of pressure.
Maximum power: It depends on the pumps.
Total weight without pumps about 2500 Kg.
Bi-active bottom sealing cord of 3 or 10 mm specially for fats, liquids, etc.
Height of sealing bars: 35 or 70 mm (standard 24 mm).
Complete cutting.
Partial cutting.
Pre-cutting of extra-long bags.
Trims collector by vacuum suction + compressed air.
Trims collector just by compressed air.
Anti-blowing system in the bags.
BC, independent loading band
Statistical data export
Cooling in the sealing.
Spare parts kit.
Width between sealing bars: 600 700 800 900 1000 1100 1200 1300
Useful length of the sealing bar: 1000 1100 1200 1300 1400 1500 1600
