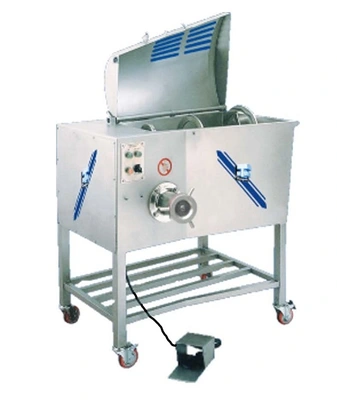

Thompson Meat Machinery Model 900E M-1 Ergonomic Meat Mixer Grinder

The Thompson Meat Machinery Model 900E M-1 Ergonomic Meat Mixer Grinder is designed with a conical bowl and mixing ribbon. This design offers many benefits in ergonomic operation like increased production and efficiency. This machine has been designed and developed to the high standards of safety and finish demanded by CE / USDA and GS regulations
The Thompson Meat Machinery Model 900E M-1 Ergonomic Meat Mixer Grinder has the ergonomic characteristics of low loading and high discharge heights making it easier for the operator to load lugs into the mixing bowl without spillage. The primary objective of the Thompson Meat Machinery Model 900E M-1 Ergonomic Meat Mixer Grinder is to eliminate the strenuous work practice of bending over the mincer discharge which is known to cause strain and discomfort to the operator.
The Thompson Meat Machinery Model 900E M-1 Ergonomic Meat Mixer Grinders design is not just user friendly but it is innovative as well. The feed screw operates at a right angle to the bowl offering unique advantages. This feature guarantees almost zero temperature increase during the mixer/ grinding process, extends shelf-life, improves product bloom and enhances the overall presentation.
Because its unique design the Thompson Meat Machinery Model 900E M-1 Ergonomic Meat Mixer Grinder achieves outstanding output. The Thompson Meat Machinery Model 900E M-1 Ergonomic Meat Mixer Grinder’s modern, compact and functional design is space a perfect addition for demanding meat processing operations.
RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the Thompson Meat Machinery Model 900E M-1 Ergonomic Meat Mixer Grinder and many others.
Call, E-mail or visit us today for more information!
235 Benjamin Dr. Suite 102
Corona, CA 92879
951-734-8152
[email protected]
Comfortable loading height of 42"
High discharge outlet height of 28.3"
Feedscrew operates at right angles to the bowl
Feedscrew channel is located at the high end of the bowl to ensure blood and juices do not drain back into the feedscrew channel. This also ensures minimal quantity of product falling into feedscrew channel when product is loaded
Heavy Duty Stainless Steel construction with continuous welded seams eliminates the possibility of cabinet breakage and ensure clean hygienic surfaces
Bin Loading Hoist allows mechanical loading of the product
Stainless Steel Tray Rack mounted next to the discharge outlet to assist operator with multiple tray and polystyrene container packing of mince portions
Adjustable legs for height variation
Pneumatic Foot Pedal allows hands-free operation for portion control of tray packing
Gemini System allows 2 machines to be joined for continuous 1st and 2nd cut operation

Grinding Motor: 4kW
Mix Motor: 1.1 kW
Bowl Capacity: 240lbs
Mix Capacity: 132lbs
AMPS: 20
Overall Dimensions L x W x H: 51" x 39.5" x 57"
Weight: 380 lbs
