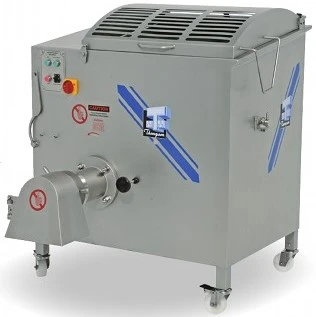

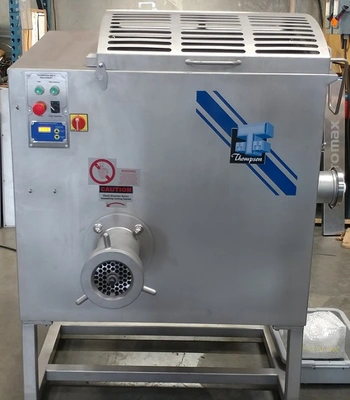

Thompson Meat Machinery Model 4200 Frozen Meat Mixer Grinder

The Thompson Meat Machinery Model 4200 Frozen Meat Mixer-Grinder is completely weld sealed both inside and out. This machine is perfect for high volume butcher shops, large wholesalers and industrial plants. The Thompson Meat Machinery Model 4200 Frozen Meat Mixer-Grinder comes in low loading form for easy loading capability. You can even request a raised machine. The Thompson Meat Machinery Model 4200 Frozen Meat Mixer-Grinder Offers Hopper Capacities ranging from 400 lbs to 800 lbs of fresh meat. This Thompson Machinery Model 4200 Frozen Meat Mixer Grinder will accept fist size pieces from a Roto Claw frozen block flaker machine and process them through the double cut system up to a maximum of 4000 kg per hour (66 kg / minute) depending on the product and temperature.
The standard height Thompson Meat Machinery Model 4200 Frozen Meat Mixer-Grinder machines incorporate a heavy gauged domed lid with an open grilled section for ingredients adding or viewing during the mix cycle. An ingredient/ liquids pouring channel is also offered as an option.

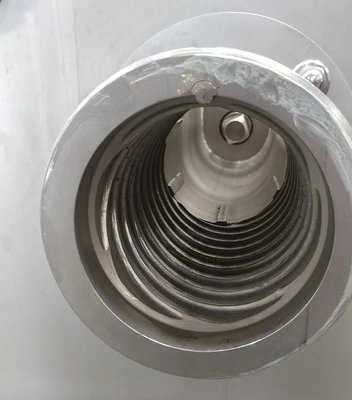

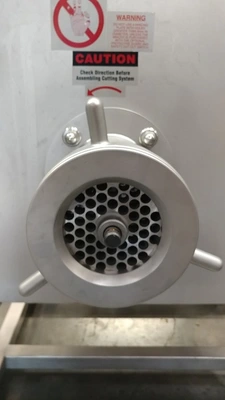

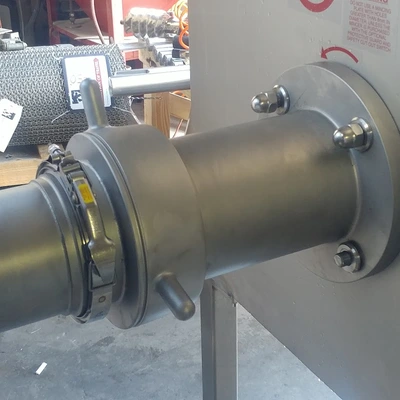

Heavy duty stainless steel mixing paddles, mincing barrel, feed screw and lock ring are standard construction on these renowned machines. The Thompson Meat Machinery 4200 Frozen Meat Mixer-Grinder series has been designed and developed to the high standards of safety and finish demanded by CE / USDA and GS regulations. All models specifically incorporate the **"SMART DESIGN" mixing bowl and paddle. The Thompson Meat Machinery Model 4200 Frozen Meat Mixer-Grinder is fully made of finished and smooth hygienic surfaces, panels and welds to achieve a clean bowl on product discharge. All this makes for an easy, fast and hygienic cleaning process at the end of production.
RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the Thompson Meat Machinery Model 4200 Frozen Meat Mixer Grinder and many others.
Call, E-mail or visit us today for more information!
235 Benjamin Dr. Suite 102
Corona, CA 92879
951-734-8152
[email protected]
Low loading height of 46"
High production rates of 6000 lbs /hour on primary cut
Constructed from heavy gauge Stainless Steel and fully seamed welded

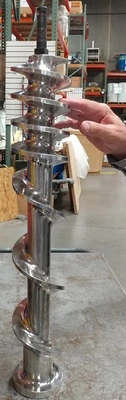

Stainless Steel feed-screw and paddle
Removable Stainless Steel mixing paddle
Lid with inspection slots to allow product to be added during operation
Stainless Steal elevating stands
Variable speed drives
Controllable mix / mince cycles
PLC pre-test programmable control
Feed-screw knife and plate trolley
Product temperture readout
Pneumatic lid operation
CO2 Cooling
Bone elemination system
Ingredients / Liquid chute in lid
Load cells to mixing bowl
Feedscrew ejector

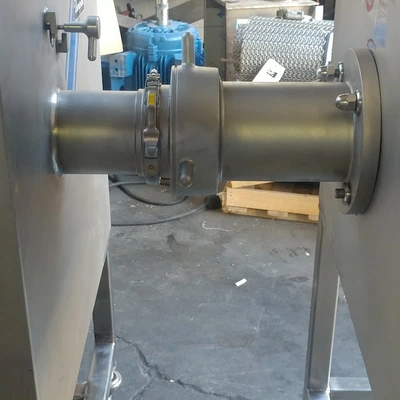

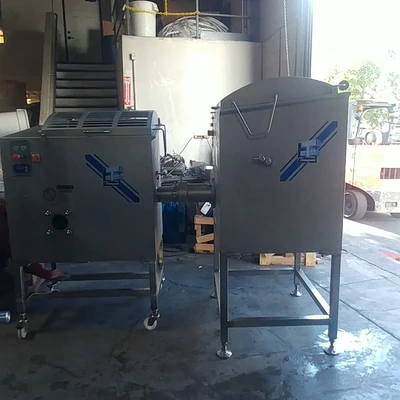

Gemini System allows 2 machines to be joined for continuous 1st and 2nd cut operation

Bowl Capacity: 700 lbs
Mix Capacity: 200 lbs.
Mixer motor: 4kW
Mince Motor: 15kW-2 speed or VSD
Full Load Current(50 hz): 37 AMP
Power Source: 80 AMP (2 speed)
