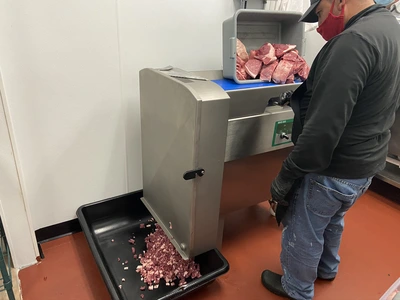

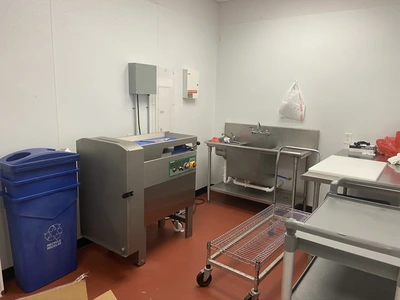

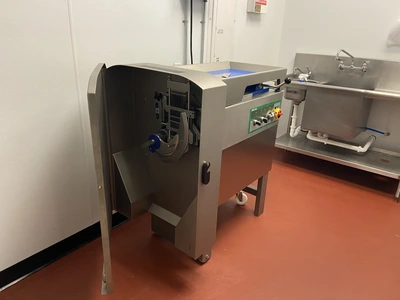

MHS Model 3100-140 Series Industrial Meat Dicers

The professional MHS Model 3100-140 Series Industrial Meat Dicers is perfect for the industry – thanks to a throughput of up to 3100 kg/h. The MHS Model 3100-140 Industrial Meat Dicers doesn't compromise on performance, with an incredible chamber size of 126mm and 140mm, these are unbeatable in price and performance.
MHS Model 3100-140 Series Industrial Meat Dicers Productivity:
MHS 3100 up to3100kg/h
Up to 800 cuts/minute
Automatic start by closing slider
MHS Model 3100-140 Series Industrial Meat Dicers Handling:

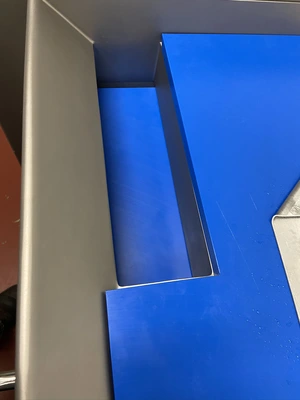

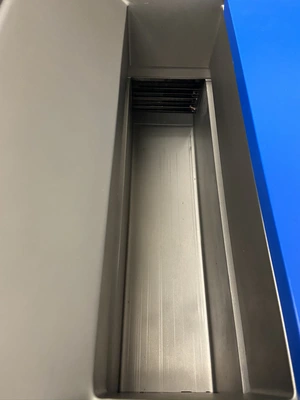

Double chamber system with simultaneous machine loading and slicing
Ergonomic single-hand operation of longitude slider
Product removal in 200 liter trolley
Outfeed conveyor belt for product discharge (optionally available)
MHS Model 3100-140 Series Industrial Meat Dicers Slicing result:
Forward feed mode selectable, continuous or step by step
Longitutional pre-compression adjustable

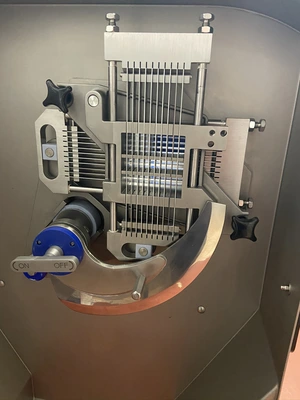

Reinforced grid with 4-fold suspension for hardest workload
The founder of RA Maxwell and Associates now RAM Manufacturing Equipment, located in Corona, California has been representing the MHS line of industrial meat dicers since 2004.
RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the MHS Model 3100-140 Series Industrial Meat Dicers and many others.
Call, E-mail or visit us today for more information!
235 Benjamin Dr. Suite 102
Corona, CA 92879
951-734-8152
[email protected]
3100: up to 3100 kg/h max
Up to 800 cuts/minute
Automatic start by closing slider
Duel chamber system with simultaneous machine loading and slicing
Ergonomic single-hand operation of longitudinal slider
Product removal in 200 liter trolley or containers of your choice
Product discharged via integrated outfeed belt
Chioce of clocked or continuous feeding
Adjustable horizonal compression
Reinforced grids with 4x suspension for hardest workload
Outfeed conveyor belt for product discharge (optionally available)
Lift device for 200 liter trolley (optionally available
Use of slicing disc for slicing stripes of slices (optionally available)

Max Input Lenght mm: 21"
Cross section mm (WxH): 5"W x 5"H
Throughput kg/h(highest feed rate,optimum chamber filling): 7000 lbs.
Cutting length in mm: 0-45
Grid sizes in mm: 5,6,7,8,10,14,18,20,24,28,35,46,70
Outer dimensions mm ( L xWxH): 80" L x40" W x 60" H
Connection (other voltages on request): 400 V /5.6 kW
Weight kg: 1000 lbs.
Voltage: 230 V /60Hz /3Ph
