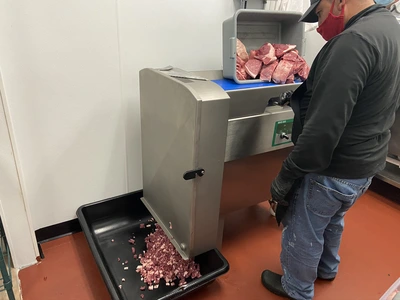

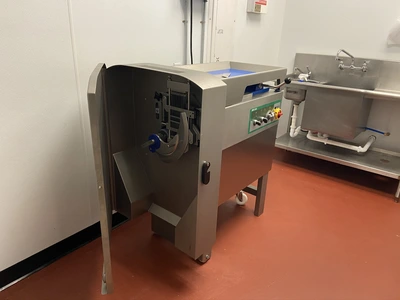

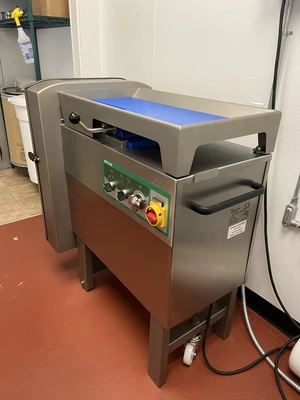

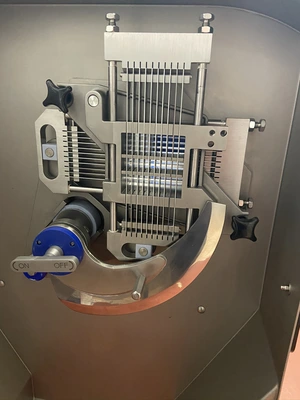

MHS Model 2400-120 Series Industrial Meat Dicers

The professional MHS Model 2400-120 Series Industrial Meat Dicers is perfect for the industry – thanks to a throughput of up to 3100 kg/h. The MHS Model 2400-120 Series Industrial Meat Dicers doesn't compromise on performance, with an incredible chamber size of 126mm and 140 mm, these are unbeatable in price and performance.
MHS Model 2400-120 Series Industrial Meat Dicers Productivity:
MHS 2400: up to 2400 kg/h
Up to 800 cuts/minute
Automatic start by closing slider
MHS Model 2400-120 Series Industrial Meat Dicers Handling:

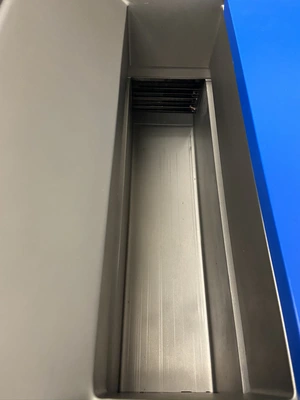

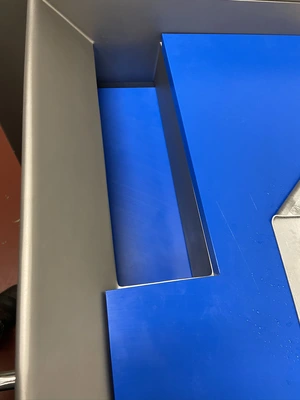

Double chamber system with simultaneous machine loading and slicing
Ergonomic single-hand operation of longitude slider
Product removal in 200 liter trolley
Outfeed conveyor belt for product discharge (optionally available)
MHS Model 2400-120 Series Industrial Meat Dicers Slicing result:
Forward feed mode selectable, continuous or step by step
Longitutional pre-compression adjustable

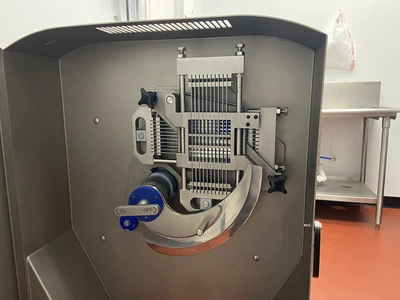

Reinforced grid with 4-fold suspension for hardest workload
The founder of RA Maxwell and Associates now RAM Manufacturing Equipment, located in Corona, California has been representing the MHS line of industrial meat dicers since 2004.
RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the MHS Model 2400-120 Series Industrial Meat Dicers and many others.
Call, E-mail or visit us today for more information!
235 Benjamin Dr. Suite 102
Corona, CA 92879
951-734-8152
[email protected]
MHS 2400: up to 2400 kg/h
Up to 800 cuts/minute
Automatic start by closing slider
Double chamber system with simultaneous machine loading and slicing
Ergonomic single-hand operation of longitude slider
Product removal in 200 liter trolley
Forward feed mode selectable, continuous or step by step
Longitutional pre-compression adjustable
Reinforced grid with 4-fold suspension for hardest workload
Outfeed conveyor belt for product discharge (optionally available)
Lift device for 200 liter trolley (optionally available)
Use of slicing disc for slicing stripes of slices (optionally available)

Max Input Lenght mm: 21"
Cross Section mm ( W xH): 5" W x 5" H
Throughput kg/h(highest feed rate,optimum chamber filling): 5300 lbs.
Cutting length in mm: 0-45
Grid sizes in mm: 4,5,6,8,10,12,15,20,24,30,40,60
Outer dimensions mm ( L xWxH): 80" L x 40" W x 60" H
Connection (other voltages on request): 400 V /5.6 kW
Weight kg: 950 lbs.
Voltage: 230 V /60Hz /3Ph
