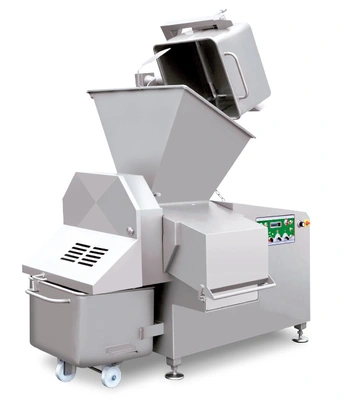

MHS Model 3200 Series Industrial Meat Dicers with Buggy Lift
Overview
Description
The MHS Model 3200 Series Industrial Meat Dicers with Buggy Lift are a perfect choice for high volume meat processing operations. The MHS Model 3200 Series Industrial Meat Dicers with Buggy Lift microprocessor controls are robust and simple to use. With throughputs up to 4000kg per hour and an automatic loading system these MHS Model 3200 Series Industrial Meat Dicers with Buggy Lift are truly set up for high volume operations. Options such as take away conveyor systems, the capability to use slicing disc cutters and conveyor loading systems as well as special fresh meat grids allow these MHS Model 3200 Series Industrial Meat Dicers with Buggy Lift to be configured to meet your specific needs.
The founder of RA Maxwell and Associates now RAM Manufacturing Equipment, located in Corona, California has been representing the MHS line of industrial meat dicers since 2004.
RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the MHS Model 3200 Series Industrial Meat Dicers with Buggy Lift and many others.
Call, E-mail or visit us today for more information!
235 Benjamin Dr. Suite 102
Corona, CA 92879
951-734-8152
[email protected]
Up to 7,054/h
Up to 1400 cuts/minute
Automatic mode
Funnel with 440/500 lbs capacity
Fully automatic processing of meat products with integrated input and output
Automatic pre-preparation of product through horizontal blade
Less preparation time due to huge filling chamber
Automatic working horizontal blade and lateral pre-compression
Convenient operation through integrated display
Lateral pre-compression
Adjustable longitudinal pre-compression
Speed control for slice-cut blade
Grid drive can be switched off

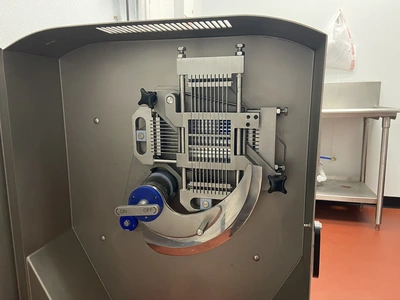

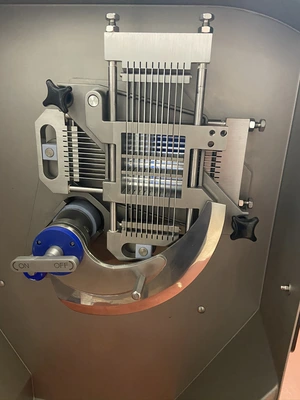

Reinforced grid with 4-fold suspension for hardest workload
Outfeed conveyor belt for product removal in 400 lbs trolley or similar
Use of slicing disc for slicing stripes of slices
Brilliant results by use of fresh meat cutting grids
Loading conveyor belt
Specifications
Max. Input Length: 24.4"
Cross Section W x H: 4.72" x 4.72"
Throughput (lbs/h): 7,054 lbs
Cutting Length in mm: 0 - 50
Grid Sizes: 4, 5, 6, 8, 10, 12, 15, 20, 24, 30, 40, 60
Overall Dimensions L x W x H: 138" x 59.2" x 108.2"
Voltage: 230V / 3ph
Weight: 3,748 lbs
Adjustable Longitudinal Precompression: Yes
Incl. 4-Side Precompression: No
Lateral Compression: Yes
Speed control grid drive and slice-cur blade: Yes
Conveyor Belt: Optional
Automatic Loading: Yes
