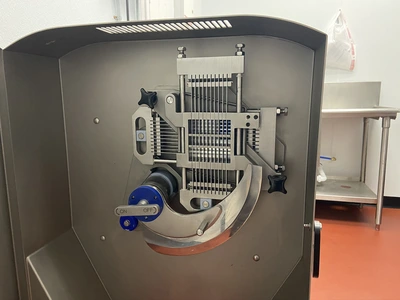

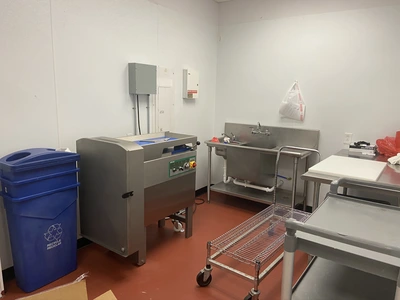

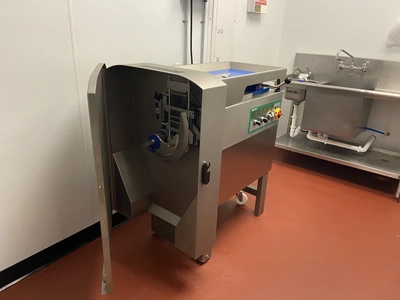

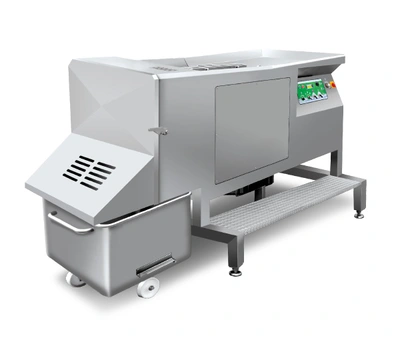

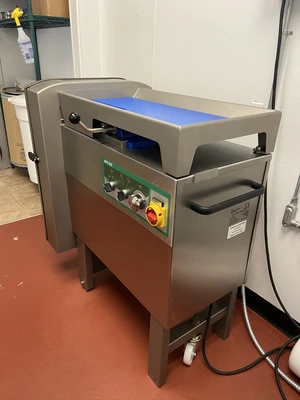

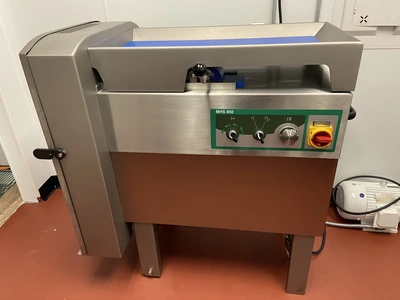

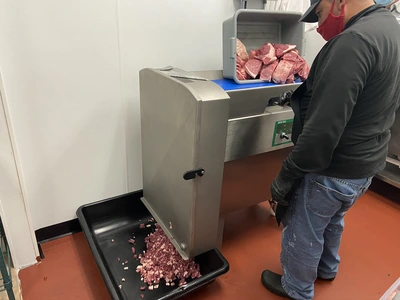

MHS Model 2900 Series Industrial Meat Dicers with optional take away conveyor and optional bin lifter

The MHS Model 2900 Series Industrial Meat Dicers with optional take away conveyor and optional bin lifter are a great choice for high volume meat processing operations. The MHS Model 2900 Series Industrial Meat Dicers with optional take away conveyor and optional bin lifter microprocessor controls are robust and simple to use. With throughputs up to 2900kg per hour and a dual chamber system that allows loading and dicing operations to proceed at the same time these MHS Model 2900 Series Industrial Meat Dicers with optional take away conveyor and optional bin lifter are truly set up for high volume operations. Options such as take away conveyor systems, the capability to use slicing disc cutters and automatic loading as well as special fresh meat grids allow these MHS Model 2900 Series Industrial Meat Dicers with optional take away conveyor and optional bin lifter to be configured to meet your specific needs.
The founder of RA Maxwell and Associates now RAM Manufacturing Equipment, located in Corona, California has been representing the MHS line of industrial meat dicers since 2004.
RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the MHS Model 2900 Series Industrial Meat Dicers with optional take away conveyor and optional bin lifter and many others.
Call, E-mail or visit us today for more information!
235 Benjamin Dr. Suite 102
Corona, CA 92879
951-734-8152
[email protected]
Up to 6,393 lbs/h
Up to 800 cuts/minute
Long life time due to soft-start and robust cutting grid
Automatic pre-preparation of product through horizontal blade

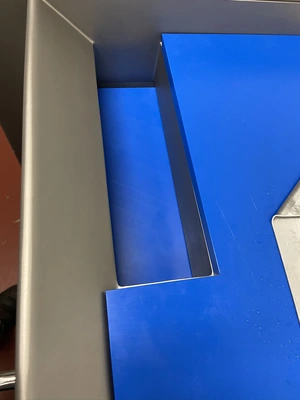

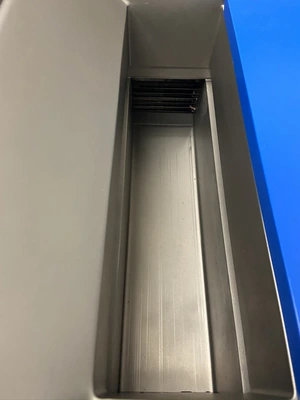

Double chamber system allows loading during slicing

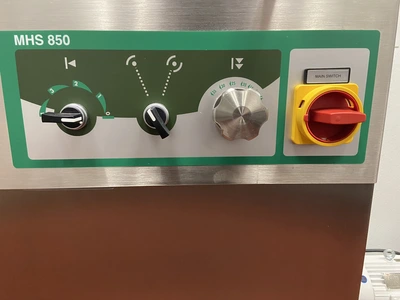

Simple adjustment of slicing parameter
Forward feed mode selectable, continuous or step by step
Longitudinal pre-compression adjustable

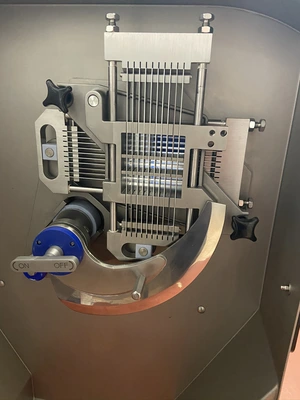

Reinforced grid with 4-fold suspension for hardest workload
Outfeed conveyor belt for product removal in 400 lbs trolley or similar
Use of slicing disc for slicing stripes of slices
Brilliant results by use of fresh meat cutting grids
Loading via lift device for 200 liter trolley or conveyor belt
Hopper for automated production

Max. Input Length: 21.7"
Cross Section W x H: 4.7" x 4.7"
Throughput (lbs/h): 6,393
Cutting Length in mm: 0 -50
Grid Sizes: 4, 5, 6, 8, 10, 12, 15, 20, 24, 30, 40, 60
Overall Dimensions L x W x H: 82.7" x 41.6" x 82.7
Voltage: 230V / 3ph
Weight: 1,279 lbs
Adjustable Longitudinal Precompression: Yes
Incl. 4-Side Precompression: No
Lateral Compression: No
Speed control grid drive and slice-cur blade: No
Conveyor Belt: Optional
Automatic Loading: Optional
