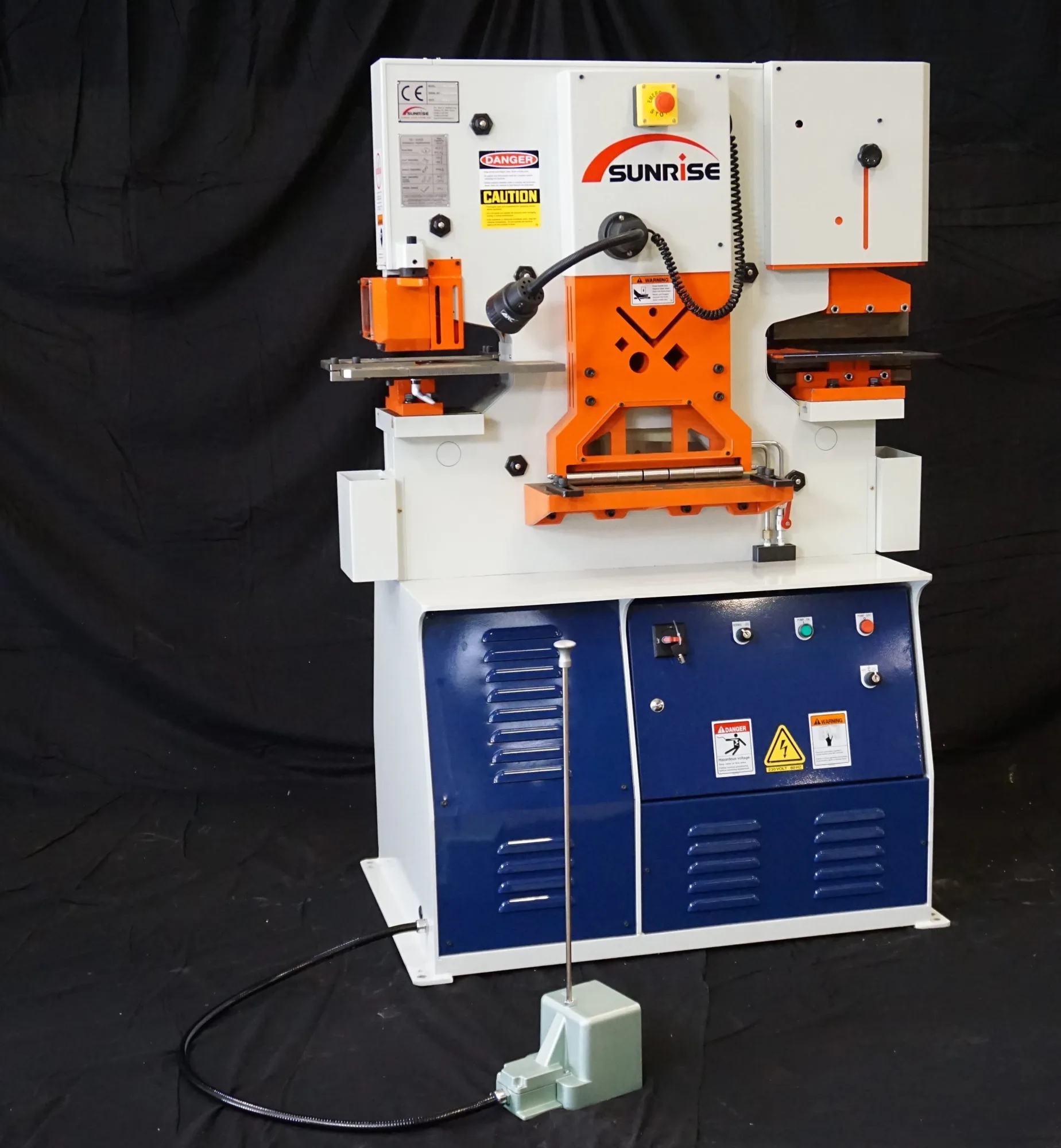

NEW SUNRISE IW-66KB

Introduced in 2004 the K-Series is a specially designed ironworker with vertical movement on all stations. The main slide moves up and down to provide optimum results for punching, shearing, notching, and bending without other moving parts.
Both the punching and notching bases use “T-slots” which provide a solid base for securing the punch tooling, as well as a wide range of optional and custom-designed tooling, such as press brakes, vee-notchers, pipe notching, and more! The 66KB and 66KBN feature integrated Press-Brake attachments!
Hydraulic hold-downs for shearing are standard on all models (except the IW-50K) which integrates into the standard electric back gauge, automating the shearing functions! The adjustable stroke, swing-away stripper, and high speed improve efficiency and allow greater operator control. The low-pressure mode for tooling alignment and blade changes provides the utmost safety for the operator, as well as multi-sided blades and adjustable blade gaps.
These models incorporate versatility, efficiency, accuracy, and ease of use at an excellent price. All K-Series models have a standard 3 Year Parts and 1 Year Labor Warranty!

Features:
• Single-Cylinder – Single-Operator – Vertical Design
• Integrated 12″ Press-Brake with Multi-Vee Die or 8″ Single-Vee Die
• Three fully integrated working stations, Shearing, Punching, and Bending
• Hydraulic Hold-Down for all Shear Functions
• Heavy-duty adjustable punch stripper with visibility window

All Sunrise K-Series Ironworkers come standard with the following:
• 40″ Touch-and-Cut Electric Back Gauge (Optional extensions to 12′ available)
• Machined Punch Gauge Table with X-Y Positioning System
• Machined Notcher Gauge Table with X-Y Positioning (Except 66KB)
• LED Magnetic-Base Work Light
• Set of 11 Punches & Dies from 3/8″ – 1-1/2″
• Structural Die Block for up to 1.5″ diameter hole capacity including overhang for angle (oversize tooling is available)
• Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic • Schematics printed and loaded on a USB
• HD Start Up Video including safety, maintenance, and operation
• Hydraulic Shearing Hold-Downs (Standard on IW-66K/KB/KBN)
• Extensive List of Optional Equipment: Accessory PDF
