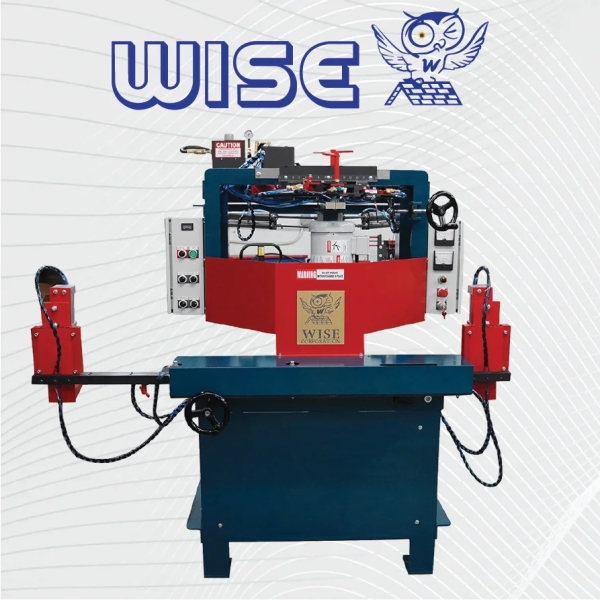

NEW WISE 5200

5200 Automatic Stair Router
The WISE 5200 Automatic Stair Router is a heavy duty, labor saving work center designed to simultaneously route both stringers with ease and efficiency. The continuous automatic feed and automatic shut off eliminate the need for high skilled labor, while fast and simple tread and riser settings produce error free operations for time tested and field proven stair building

Key Features
Fast simple tread, rise and run settings
Built in Jump Dado Function
Heavy Duty Tyler Spindles
Enclosed Valve Bank
Heavy Duty Clamp and Feed System

Specifications
Stringers up to 2" Thick x up to 12" Wide x Unlimited Length
Tread: up to 1-1/2" Thick x 8 to 11" Wide
Riser: 3/4" Thick x 5-3/4" to 9" High

Air Requirements
3 cfm at 110 psi – 3/4" Feed Line

Electrical Requirements
Standard: 230v, 3 Phase, 12 Amp, 60 HZ
Optional: 460v, 3 Phase, 5.4 Amps, 60 HZ

Dimensions
5' Long x 3' Wide x 5' Tall

Weight
1800 lbs

Optional: Check out the Wise 5210 Stringer Assembly Table
