NEW MIGHTY VIPER BCM

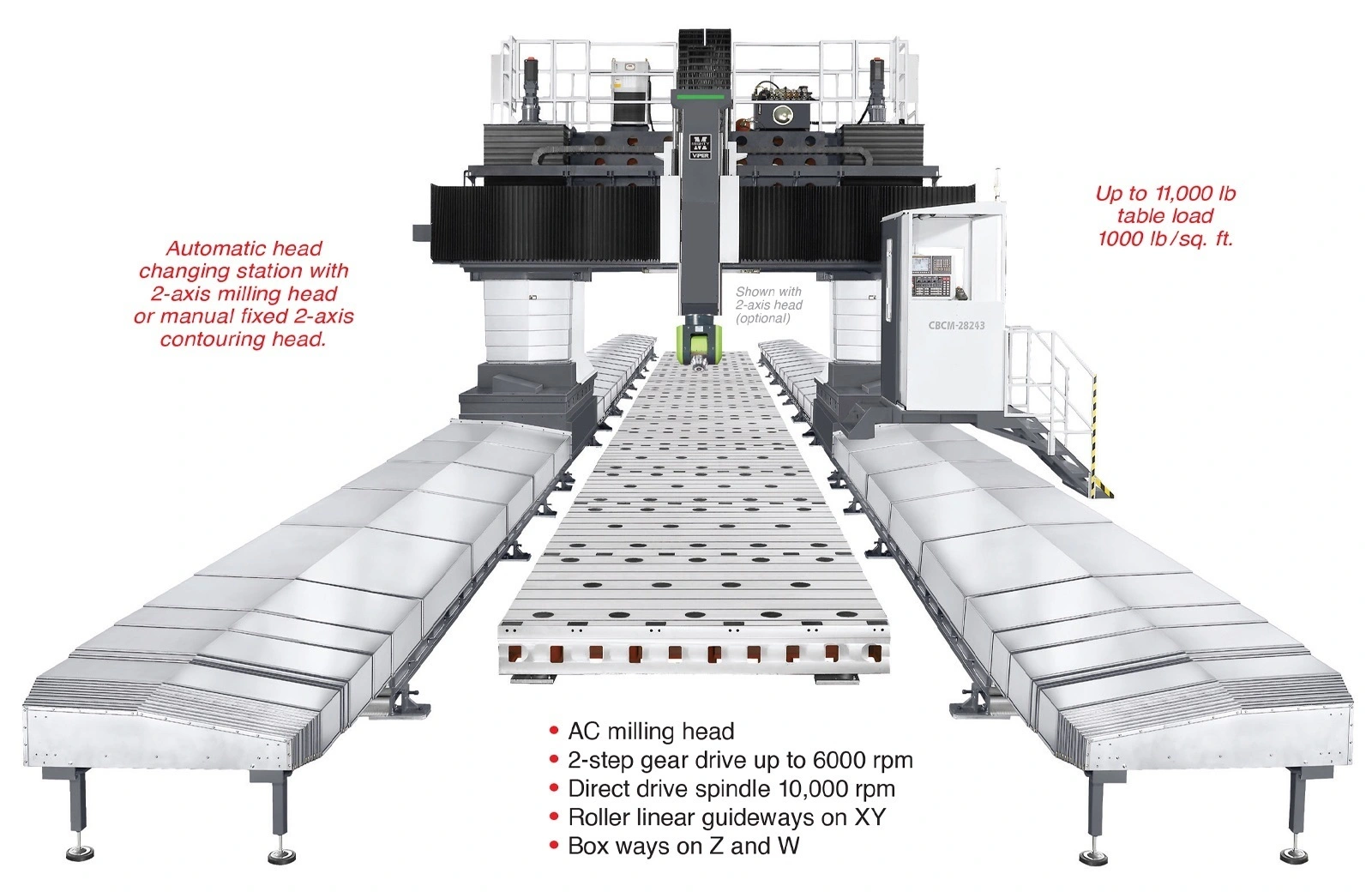

A gantry style 5-axis machining center with moving column and crossrail. Combines fast linear guideways on XY and rigid box ways on Zand W Heavy duty work table supports 1,000 lb/sq. ft.

Moving Column and Moving Crossrail

The BCM gantry machining center has a W-axis that allows the crossrail to move vertically over a range of 59˝ (1.5M). Progressive hydraulic clamping ensures accurate W-axis movement during cutting. Nose to table distance has up to 10 feet of clearance under the spindle.

Perform five-face machining with an angular head or 5-axis machining with a 2-axis contouring head. Smooth axial movement along hardened and rigid box ways on both the W-axis and Z-axis.

PERFORMANCE FEATURES

• Rigid tapping
• X/Y/Z absolute encoder
• Table sizes up to 1417˝ (L) × 138˝ (W)

Model ........... xx38 ....... xx43 ........ xx48 ...... xx53
X-Travel ......................... 244~1425
Y-Travel ........ 150 ........ 169 ......... 189 ....... 209
Z-Travel ......................... 39 (47/59)*
W-Travel ......................... 39 (47/59)*
Nose Taper ....................... BT-50
Speed (rpm) ...................... 6,000
Feed Rate (ipm) .................. 472 / 472 / 472 / 78
Motor** (hp) ..................... 29 135 (40 / 50)*

Unit= inch | *Optional accessory | **30 minute rating

Available Models: xx38, xx43, xx48, xx53
