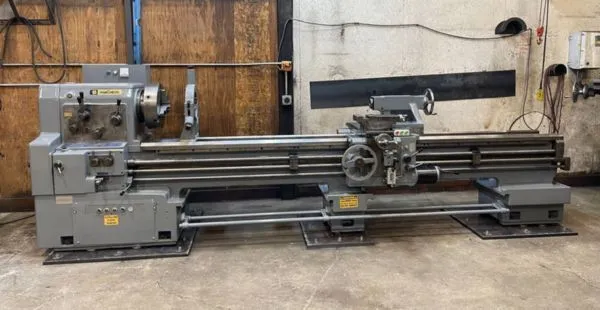

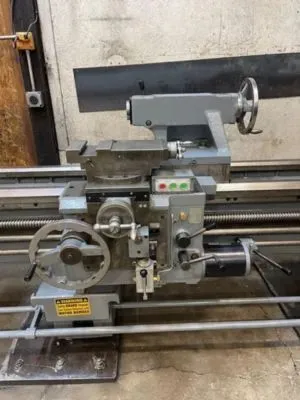

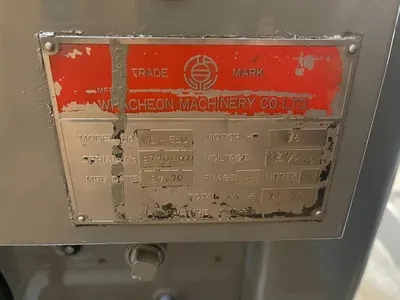

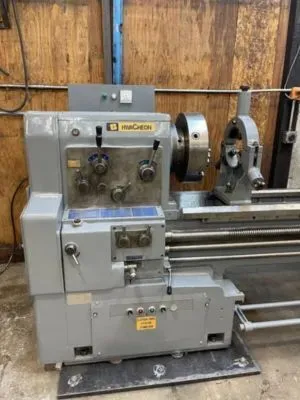

WHACHEON Model WL-630 24" X 120" Engine Lathe
Hwacheon Machine Tool is a Korean manufacturer of machine tools, founded in 1952. A pioneer of the South Korean machine industry, the company started from a small foundry after World War II and has since grown into a global provider of computer numerical control (CNC) lathes, machining centers, and automated manufacturing systems.
| Swing | 24" | 609.6 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 3" | 76.2 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,205 RPM | 1,205 RPM |
| Swing Over Cross Slide | 16.35" | 415.29 mm |
| Dimensions | 180"L x 50"W x 55"H | 180"L x 50"W x 55"H |
| Weight | 9.000 LBS | 9.000 LBS |
Specifications:
size 24" x 120"
Swing 24"
Swing Over Gap 33.25
Centers 120"
Spindle Bore 3"
Power 15 hp
RPM 1,205 RPM
Swing Over Cross Slide 16.25"
Power Required 220v - 440v 3 ph
THREADS Inch / metric
Inch Threads: 2-80 TPI
Metric Threads: 0.5-14mm Pitch
TAIL STOCK #5 Morse taper
Cross Slide Travel: 14.16"
Width of Bed: 18.12"
Length of Bed: 171.25"
Dimensions 180"x W-50"x H- 55"
Weight 9000
Equipped With:
Steady Rest
Tailstock
Power Rapid Traverse
15" 4 Jaw Chuck
16" 3 Jaw Chuck ( with 2 piece top jaws )
