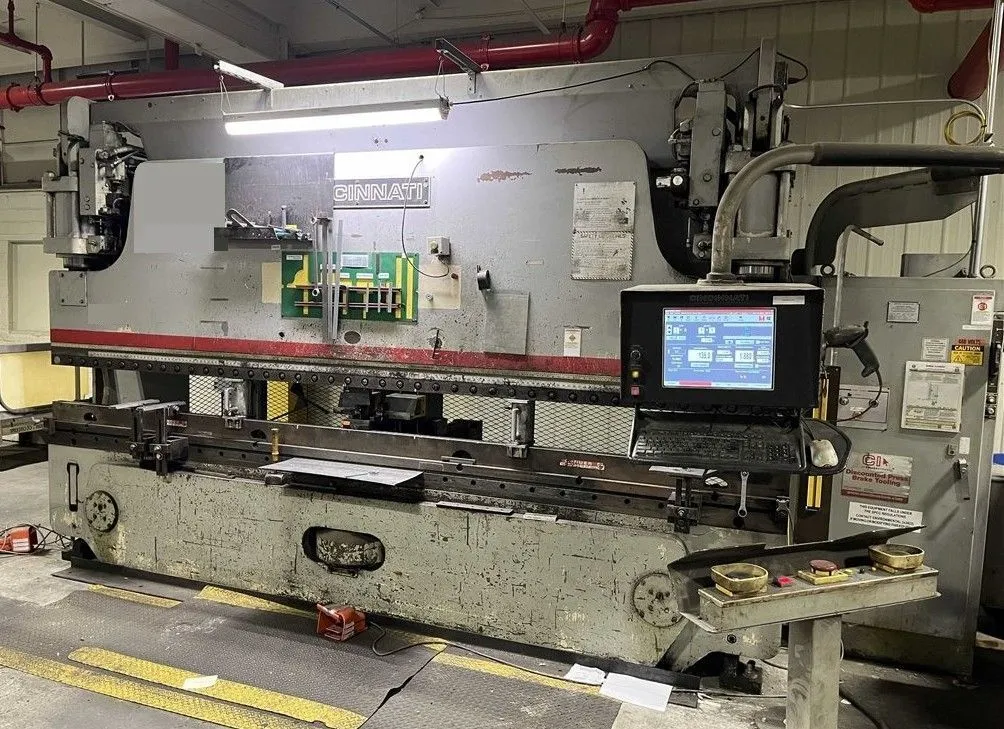

CINCINNATI AUTOFORM 135AF X 12 CNC PRESS BRAKE, NEW 1993
135 TONS
14' OVERALL
6-AXIS BACK-GAUGE
CINCINNATI GEN 6 AUTOFORM CONTROL - UPGRADED IN 2022
| Tonnage | 135 T | 122.47 t |
| Type | HYD | HYD |
| OA Length | 14' | 4.3 m |
| OA (Overall) Length | 168" | 4,267.2 mm |
| Between Housings | 12.5' | 3.8 m |
| Between Housings | 150.25" | 3,816.3 mm |
| Stroke | 8" | 203.2 mm |
| # Axis | 8 | 8 |
| Dimensions | 205"(L) x 60"(D) 111"(H) | 205"(L) x 60"(D) 111"(H) |
| Weight | 30,000 LBS | 30,000 LBS |
TONNAGE CAPACITY: 135
OVERALL LENGTH OF BED & RAM: 168"
DISTANCE BETWEEN HOUSINGS: 150.25"
STROKE: 8"
OPEN HEIGHT: 15"
CLOSED HEIGHT: 7"
THROAT CLEARANCE: 7"
SPEEDS:
- HIGH APPROACH: 290 IPM
- VARIABLE FORMING: 1 TO 80 IPM
- RETURN: 270 IPM
RAM REPEATABILITY: (+-) 0.0002"
DISTANCE FROM FLOOR TO BED TOP: 34"
WIDTH AT TOP OF BED: 4.5"
PIT REQUIRED: YES
MOTOR: 25 HP
APPROX. DIMENSIONS: 205(L) x 60"(D) x 111"(H)
APPROX. SHIPPING WEIGHT: 30,000 LBS
9-AXIS CINCINNATI GEN 6 AUTOFORM CONTROL - UPGRADED IN 2022
6-AXIS PROGRAMMABLE BACK-GAUGE (X1-X2, R1-R2, Z1-Z2)
DUAL RAM ENCODERS (Y1-Y2)
AUTO CROWN
UPPER POWER CLAMPING
PEDESTAL MOUNTED PALMBUTTON STATION
FOOT SWITCH
LIGHT GUARDS
SHEET SUPPORTS
