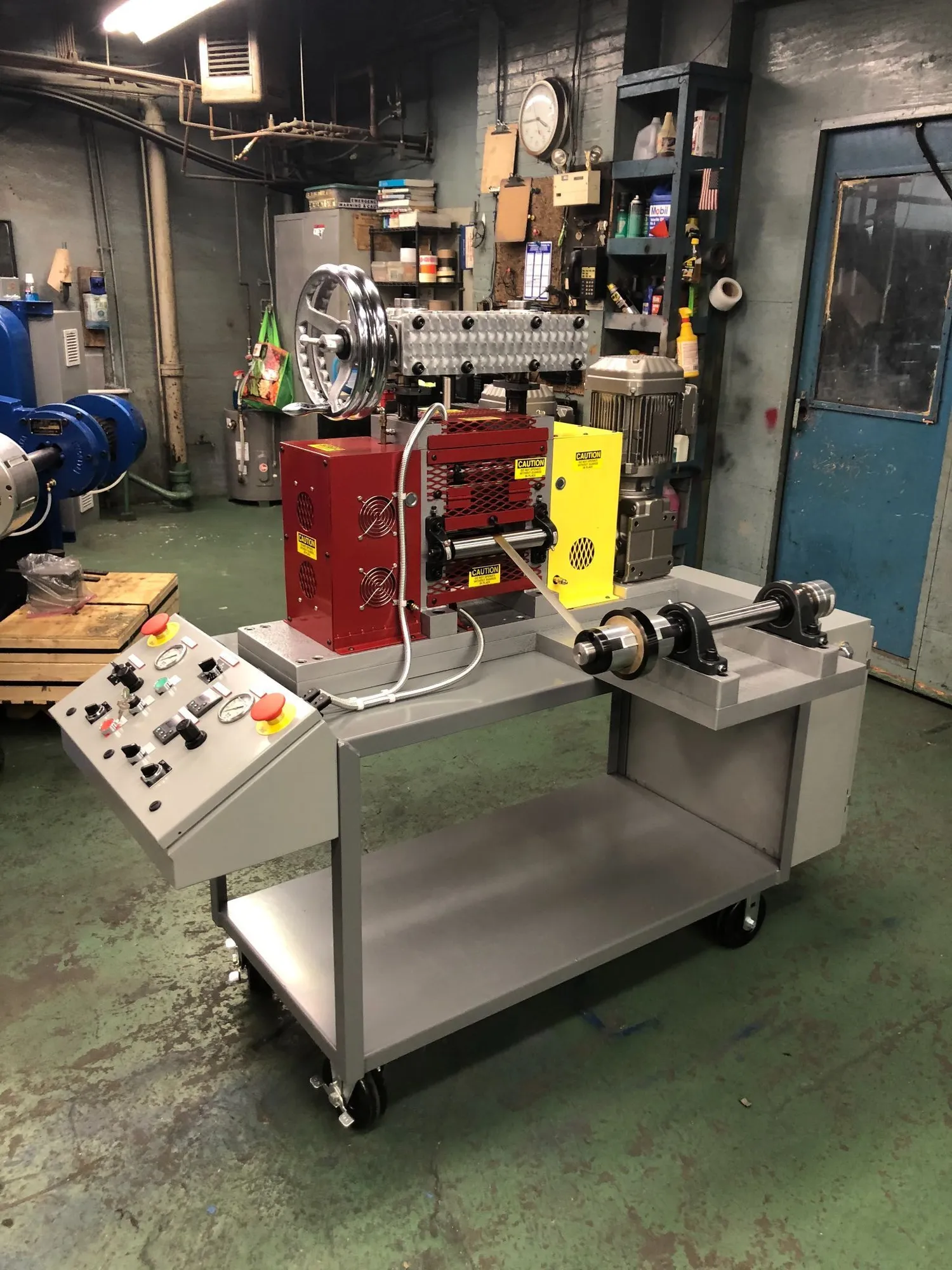

IRM Model 4060H Laboratory Rolling Mill used; 0.875" x 4" x 6" 2-High/4-High combination. Ideal for hot rolling applications. Reliable, compact, and efficient for advanced research and development tasks. Perfect for laboratory settings.
| Roll Diameter | 4" | 101.6 mm |
| Roll Width | 6" | 152.4 mm |
| Roll Finish | Satin | Satin |
| Roll Material | D2 | D2 |
| Roll Gap Adjustment | Dual handwheels can allow for simultaneous or independent roll gap adjustment. | Dual handwheels can allow for simultaneous or independent roll gap adjustment. |
| Mill Power | 2 HP | 2 HP |
| Mill Separating Force | Approximately 40,000 LBS | Approximately 40,000 LBS |
| Mill Voltage | Customer Choice | Customer Choice |
| Mill Phase | 3-Phase | 3-Phase |
| Mill Controls | New Variable Speed AC Inverter | New Variable Speed AC Inverter |
| Mill Tables | Tables will be installed on the entry and exit of the mill. | Tables will be installed on the entry and exit of the mill. |
| Mill Safety | All nip points will be guarded. | All nip points will be guarded. |
