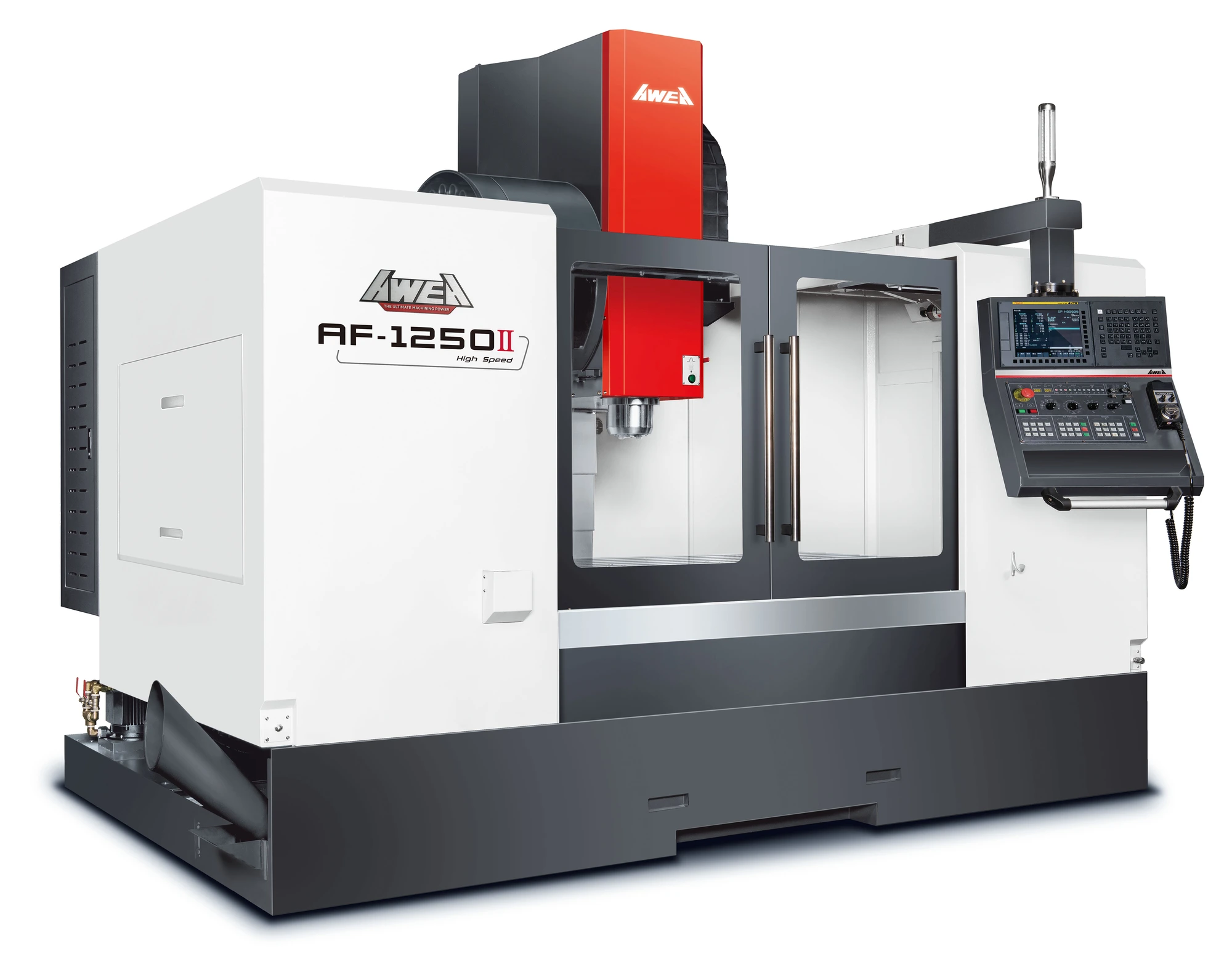

The AWEA AF-1250 Vertical Machining Center is built for high-precision performance with a 15,000 RPM CAT40 Big Plus direct drive spindle, linear guides on all axes, and a Mitsubishi M80 control with 15" LCD display. It comes equipped with a 36-tool arm-type ATC, coolant-through-spindle (300 PSI) and air-through-spindle, plus an efficient chip management system featuring a chain-type conveyor, dual augers, wash-down coolant, and oil skimmer. Operator-friendly features include a rotary operation panel, interlocked full splash guard, 3-light status indicator, automatic lubrication and power-off system, along with air and coolant guns, toolbox, and manuals. Designed for reliability, speed, and easy maintenance, the AF-1250 is a complete machining solution for aerospace, defense, automotive, and mold applications.
Key Features:
• High rigidity structure and three axes high precision linear guide way design
• Fast arm type ATC and chip conveying system for efficient operation
• Broadly used in high precision machine parts manufacturing, meeting current and future demands
• Specialized for high precision parts and mold machining industry, offering high precision and efficiency at a reasonable cost
• Three axes equipped with high precision linear guide way design for optimal control and efficient movement, with options for roller or ball type guide way
• Rotary operation panel and large width protection door for convenient operation and spacious loading/unloading
• Independent coolant tank system for easy maintenance, with a high-pressure coolant pump for efficient cooling capabilities.
| X-Axis Travel | 1,250 mm | 49.213" |
| Y-Axis Travel | 650 mm | 25.591" |
| Z-Axis Travel | 610 mm | 24.016" |
| Table Size-X | 1,350 mm | 53.15" |
| Table Size-Y | 650 mm | 25.591" |
| Table Load Capacity | 1,000 kg | 2,204.6 lb |
| Spindle Center to Column | 710 mm | 27.953" |
| Max Spindle Nose to Table | 735 mm | 28.937" |
| Spindle Speed | 15,000 RPM | 15,000 RPM |
| Spindle Taper | CAT40 Big Plus | CAT40 Big Plus |
| ATC | 36 | 36 |
| CN Control | Mitsubishi M80 w/ 15" LCD display | Mitsubishi M80 w/ 15" LCD display |
| # Axis | 3 | 3 |
MITSUBISHI M80 W/ 15" LCD DISPLAY
LINEAR GUIDES ON ALL AXIS
15,000 RPM DIRECT DRIVE SPINDLE CAT40 BIG PLUS
36 TOOLS ATC MAGAZINE (ARM TYPE)
CHAIN-TYPE CHIP CONVEYOR
DUAL COIL TYPE AUGERS
CHIP WASH DOWN BY COOLANT
COOLANT THROUGH SPINDLE 300 PSI
AIR THROUGH SPINDLE
3 LIGHT MACHINE STATUS INDICATOR
OIL SKIMMER
HEAT EXCHANGER ELECTRICAL CABINET
36 PULL STUDS (CTS TYPE)
FULLY SPLASH GUARD
INTERLOCKED DOOR
CENTRALIZED AUTOMATING LUBRICATION
AUTOMATIC POWER OFF SYSTEM
FOUNDATIONS BOLTS KIT
AIR AND COOLANT GUNS
TOOLBOX
OPERATION AND MAINTENANCE MANUAL
