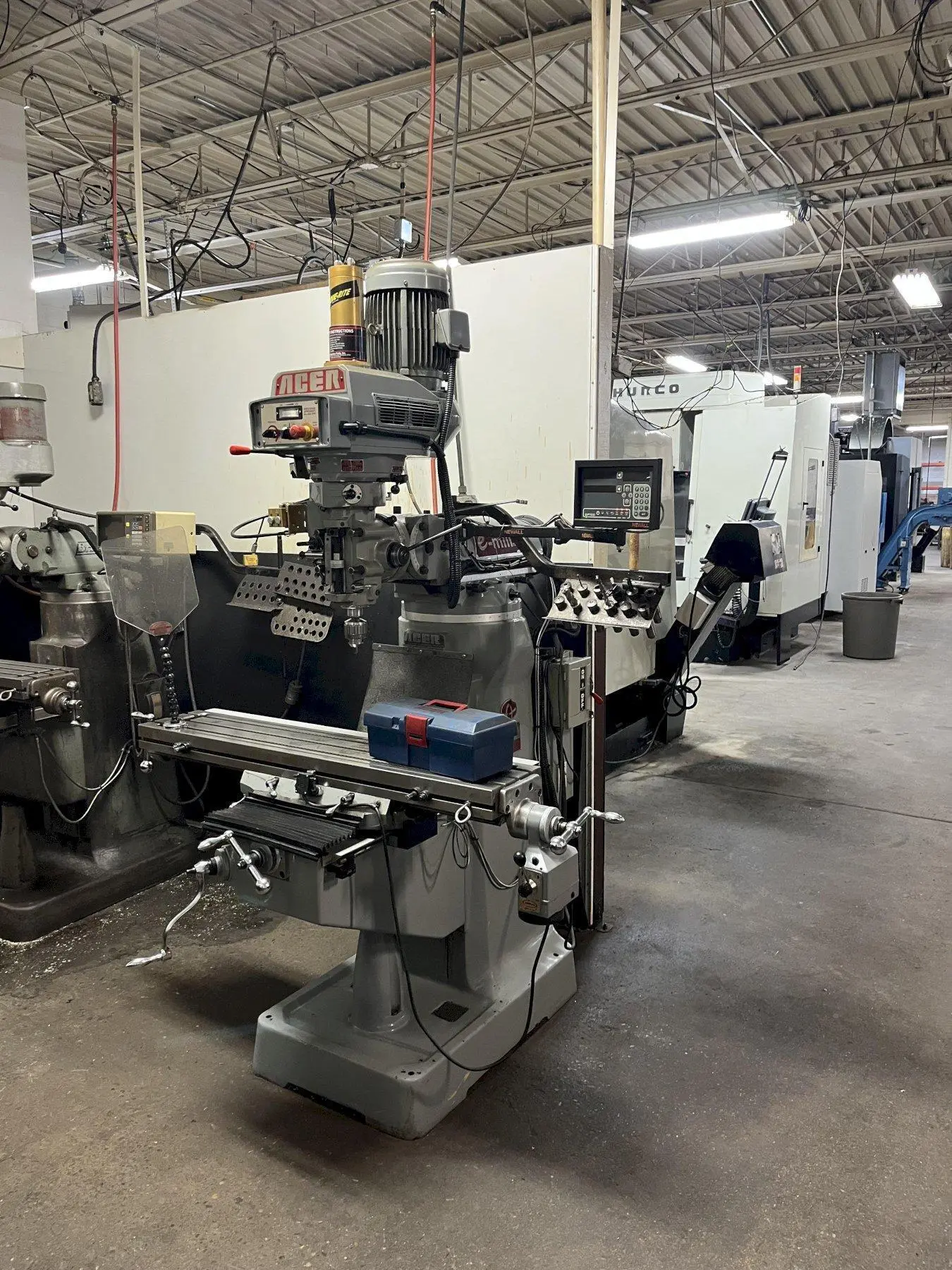

ACER EVS-3VSII vertical mill, 2013 model, used condition. Features include a 9" x 49" table, 28" longitudinal travel, 12" cross travel, 3 HP power, 4500 RPM, and R-8 taper. Ideal for precision milling tasks.
| Table-W | 9" | 228.6 mm |
| Table-L | 49" | 1,244.6 mm |
| Travel-Long | 28" | 711.2 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | R-8 | R-8 |
| Dimensions | 67" x 63" x 71" | 67" x 63" x 71" |
| Weight | 2380 LBS | 2380 LBS |
ACER EVS-3VSII KNEE MILL
S/N N10304182 Year: 2013
STANDARD SPECIFICATIONS
Power Table............................49”x 9”
Longitudinal Travel....................28”
Vertical Knee Travel...................16”
Cross Travel...........................12”
Spindle Speeds.........................6-4500 RPM
EQUIPPED WITH
Maxi Torque Rite, chuck torque.
Jacobs chuck.
2-Axis Newall model DP-700 DRO.
Precision X,Y axes & knee by hardened & ground dovetail ways.
3 HP Motor 220/440-3-60 cycles. (Inverter Motor)
1-Shot lubrication.
DIMENSIONS
67”x 63”x 71”
Approximate weight 2,380 LBS
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
