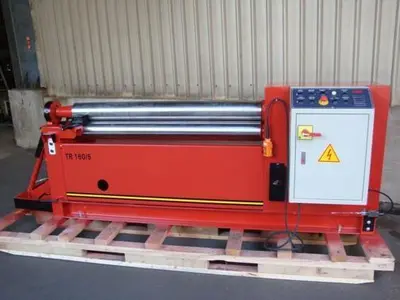

NEW LEMAS TR 160/5

SPECIFICATIONS:
CAPACITIES IN CARBON STEEL TYPE A-36 ---- 5 ft X 1/4 in
DIAMETER OF ALL ROLLS ------------------- 6.30 in
ROLLING SPEED (APPROX) ------------------ 16 ft PER MINUTE
TOTAL CONNECTED MOTOR POWER @ 480 VOLTS - 5 HP DRIVE MOTOR
1 HP HYDRAULIC SYSTEM
MOTOR
APPROX NET. WEIGHT ---------------------- 4,150 LBS
FEATURES:
* Positive drive regardless of position of pinch roll
* Grooves for 1/4”, 3/8”, 1/2” round bar
* Spherical roller bearings in roll shafts
* Rear bending roll hydraulically adjusted
* Hydraulic tilting of the rear bending roll for cone rolling
* Cone bending attachment
* Digital readout for position of rear bending roll
* Hydraulically operated drop end for quick removal of rolled product
* Hydraulic lower pinch roll adjustment with rapid pinch gauge control
* Manual tilt of the lower pinch roll
* Forward/Reverse rotation controls - Console mounted and remote hand control on cable
* Upper and lower pinch rolls driven
* All rolls heat treated to 50 Rc
* Electrics for 3/60/220 or 480 volt operation. Low voltage at the controls.
* Emergency stop palm button on the control console
* Emergency stop cable around the machine
* Hydraulic oil, tools, and instruction manual
EQUIPPED WITH:
* Capacities in mild steel with 36,000 PSI yield strength: 5' x 1/4"
* Diameter of all rolls: 6.30"
* Rolling speed - approximately 15' per minute
* Total connected motor power @ 480 volts – 5 HP drive motor; 1 HP hydraulic system motor
* Approximate net weight – 4,150 pounds
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
OPTIONAL FEATURES:
Variable rotation speeds via frequency changer in place of single speed drive. For in stock machines, adds about 2 weeks to lead time. For factory order machines, no increase in lead time. --------------------------------------- $2,495.00
DELIVERY:
10-12 WEEKS - SUBJECT TO STOCK
