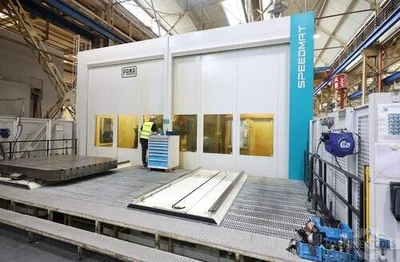

USED 2007 PAMA SPEEDMAT 4 TR 25

Siemens Sinumerik 840D CNC ControlWork table Clamping surface 2500 x 2000 mm Table height above floor 800 mmFeed speed x-axis 0.5 to 10000 mm/min y-axis 0.5 to 10000 mm/min Z-axis 0.5 to 10,000 mm/min Rapid traverse (X/Y/Z) 25 / 25 / 25 m/min Max. feed force (X/Y/Z) 28,000 / 27,000 / 28,000 NSpindle speeds Gear stage 1: 6 to 848 rpm Gear stage 2: 850 to 3000 rpmTool magazine: 306 slots divided as follows: Number of slots max. length 700 mm: 54 Number of slots max. length 450 mm: 54 Number of slots max. length 300 mm: 63 Number of slots max. length 200 mm: 135 Tool weight max. 35 kg Tool diameter with free auxiliary slots max. 325 mm Tool diameter without free secondary spaces max. 105 mmAccessories Approx. 30 nos. SK 50 tool holders 1 measuring probe Coolant system/paper belt filter & chip conveyor Cooler Oil mist extraction Documentation

Manufacturer: Pama
Model: Speedmat 4/TR 25
Year: 2007
Condition: Used
Stock Number: 5654239
Spindle diameter: 160 mm
Spindle speeds: 3,000 rpm
X axis travel: 4,000 mm
Y axis travel: 3,000 mm
Z axis travel: 2,200 mm
Quill stroke: 800 mm
Max workpiece weight: 20,000 kg
Tool taper: ISO 50 BIG PLUS DIN 69871
Max torque at spindle: 2,346
Total power requirement: 65 kW
Machine dimensions: 12.8 x 11.8 x 5.7 m
