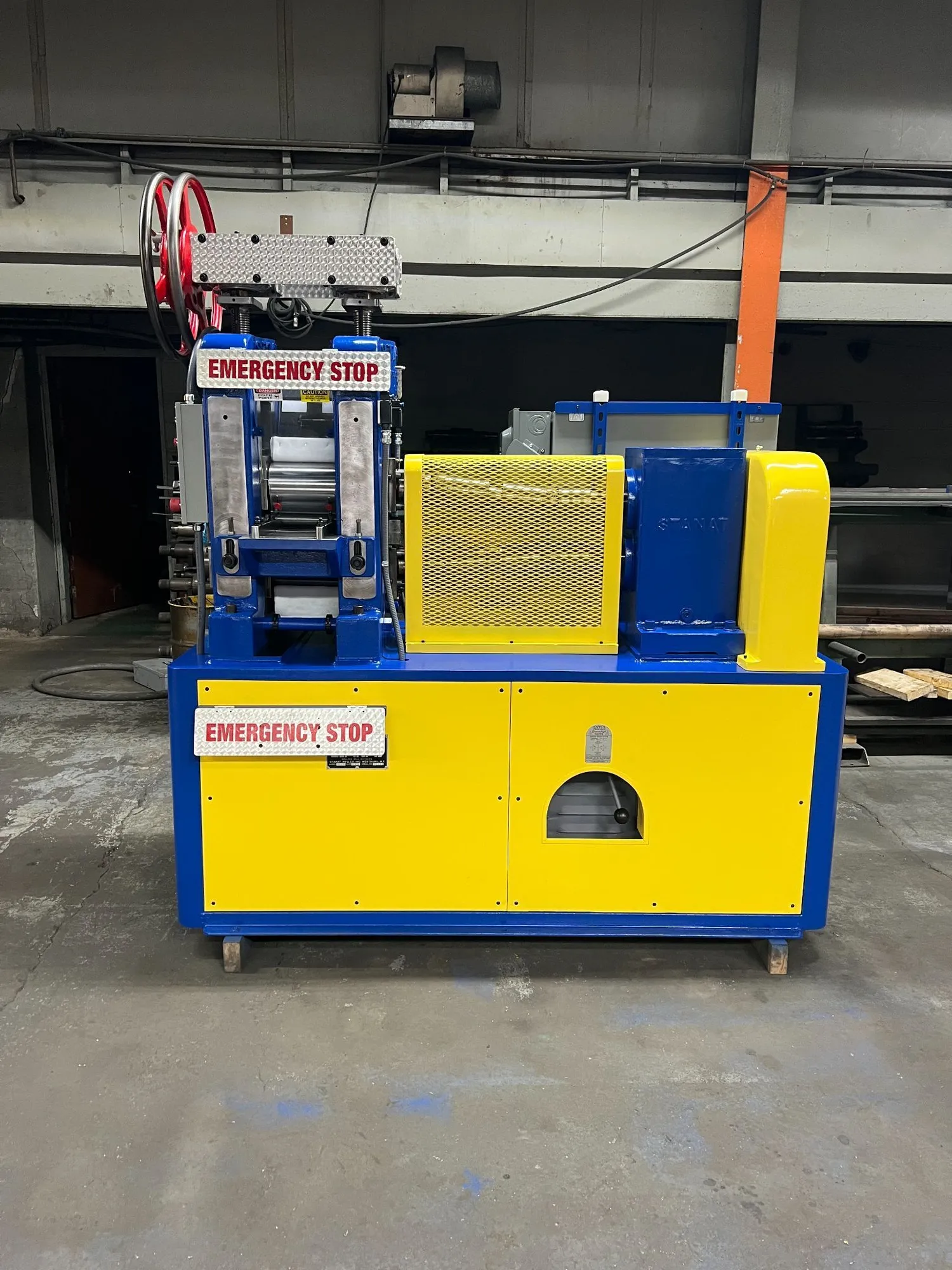

Stanat Model TA-315 1.5" x 5" x 8" 2-High / 4-High Combination Rolling Mill
| Work Roll Diameter | 1.5" | 38.1 mm |
| Work Roll Width | 8" | 203.2 mm |
| Backup Roll Diameter | 5" | 127 mm |
| Backup Roll Width | 8" | 203.2 mm |
| Roll Finish | Satin | Satin |
| Roll Material | High Carbon Chromium Alloy Steel | High Carbon Chromium Alloy Steel |
| Roll Gap Adjustment | Dual handwheels can allow for simultaneous or independent roll gap adjustment. | Dual handwheels can allow for simultaneous or independent roll gap adjustment. |
| Mill Power | 15 HP | 15 HP |
| Mill Separating Force | Approximately 100,000 LBS | Approximately 100,000 LBS |
| Mill Voltage | Customer Choice | Customer Choice |
| Mill Phase | 3-Phase | 3-Phase |
| Mill Controls | New Variable Speed AC Inverter | New Variable Speed AC Inverter |
| Mill Tables | Tables will be installed on the entry and exit of the mill. | Tables will be installed on the entry and exit of the mill. |
| Mill Safety | All nip points will be guarded. | All nip points will be guarded. |
