X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Number of t-slots: 3 on 6.3” centers
T-slot size: 0.708” (18 mm)
Auto mode (x and y axes): 1,417 in./min
Auto mode (z axis): 1,417 in./min.
Tool holder: CT40 or BT40
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

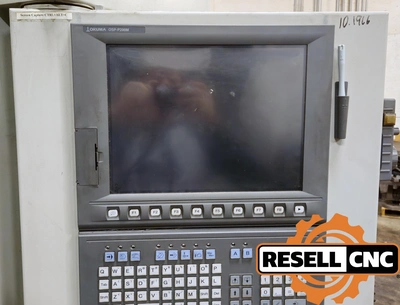

Control Make Model: Okuma OSP-P200M CNC Control
Coolant Type S: Thru-Spindle Coolant
Electrical: 220v
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 1760.0
Programmable Tailstock: false
Rotary Table Trunnion: 4th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Speed: 10000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Arm
Tool Magazine Capacity: 30.0
Twin Turret: false
Vertical Table Pallet Size: 44.16" x 21.25"
X Travel: 40.16
Y Axis: false
Y Travel: 21.25
Z Travel: 21.25
