Dual drive clamping beam with ball screw spindle system for more clamping power.
9.84 inch opening height on 180° rotating combi clamping beam with 2 tooling stations as 4.92 inch high segmented goat foot tools on station 1 and 30° single piece sharp nose tool on station 2.
ERFOLD BASIC CNC LBL control software on 15.6" touchscreen controller with swivel arm.
59 inch servo back gauge system with pneumatic solid fingers and sheet support table with ball casters
| Max Sheet Length | 125.9" | 3,197.9 mm |
| Max Sheet Length | 10' | 3 m |
| Mild Sheet | 0.118" | 2.9972 mm |
| Stainless | 0.078" | 1.9812 mm |
| Aluminum | 0.157" | 3.9878 mm |
| Upper Beam (Z axis) - Opening height (without tools) | 9.84 in. | 9.84 in. |
| Combi/Upper Beam (Z axis): Motor Power (Servo) | 2 X 3,5 kW | 2 X 3,5 kW |
| Upper Beam (Z axis) - Transmission system | Ballscrew spindle | Ballscrew spindle |
| Upper Beam (Z axis) - Clamping speed | 2.55 in. | 2.55 in. |
| Combi/Upper Beam (Z axis): Combi beam rotation (180°) time | 10 sec | 10 sec |
| Folding Beam (Y axis) - Folding angle | 0 - 150° | 0 - 150° |
| Folding Beam (Y axis) - Motor Power (Sew Eurodrive AC) | 2 X 4 kW | 2 X 4 kW |
| Folding Beam (Y axis) - Folding Speed | 70°/sec | 70°/sec |
| Folding Beam Height Adjustment (A1-A2 axis) - Adjustment height | 0 to 3.14 in. | 0 to 3.14 in. |
| Folding Beam Height Adjustment (A1-A2 axis) - Control | Manual | Manual |
| Back gauge system (X axis) - Movement speed | 11.81 in. /sec | 11.81 in. /sec |
| Back gauge system (X axis) - Motor Power (Servo) | 750 W | 750 W |
| Back gauge system (X axis) - Positioning / repeatability accuracy | +/- 0,1 mm | +/- 0,1 mm |
| Dimensions | 185 x 90.5 x 90.5 in. | 185 x 90.5 x 90.5 in. |
| Weight | 17,747 lbs. | 17,747 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

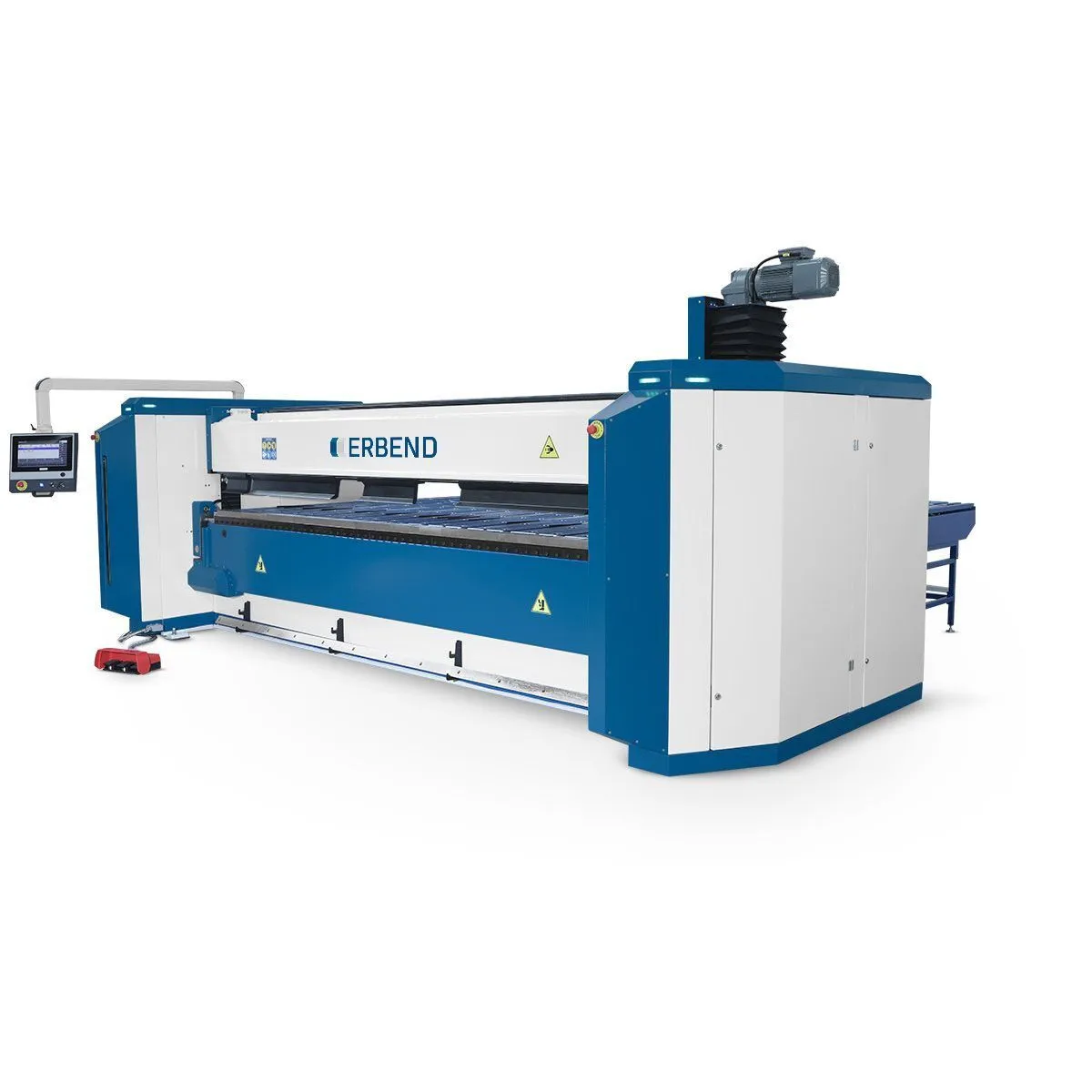

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
