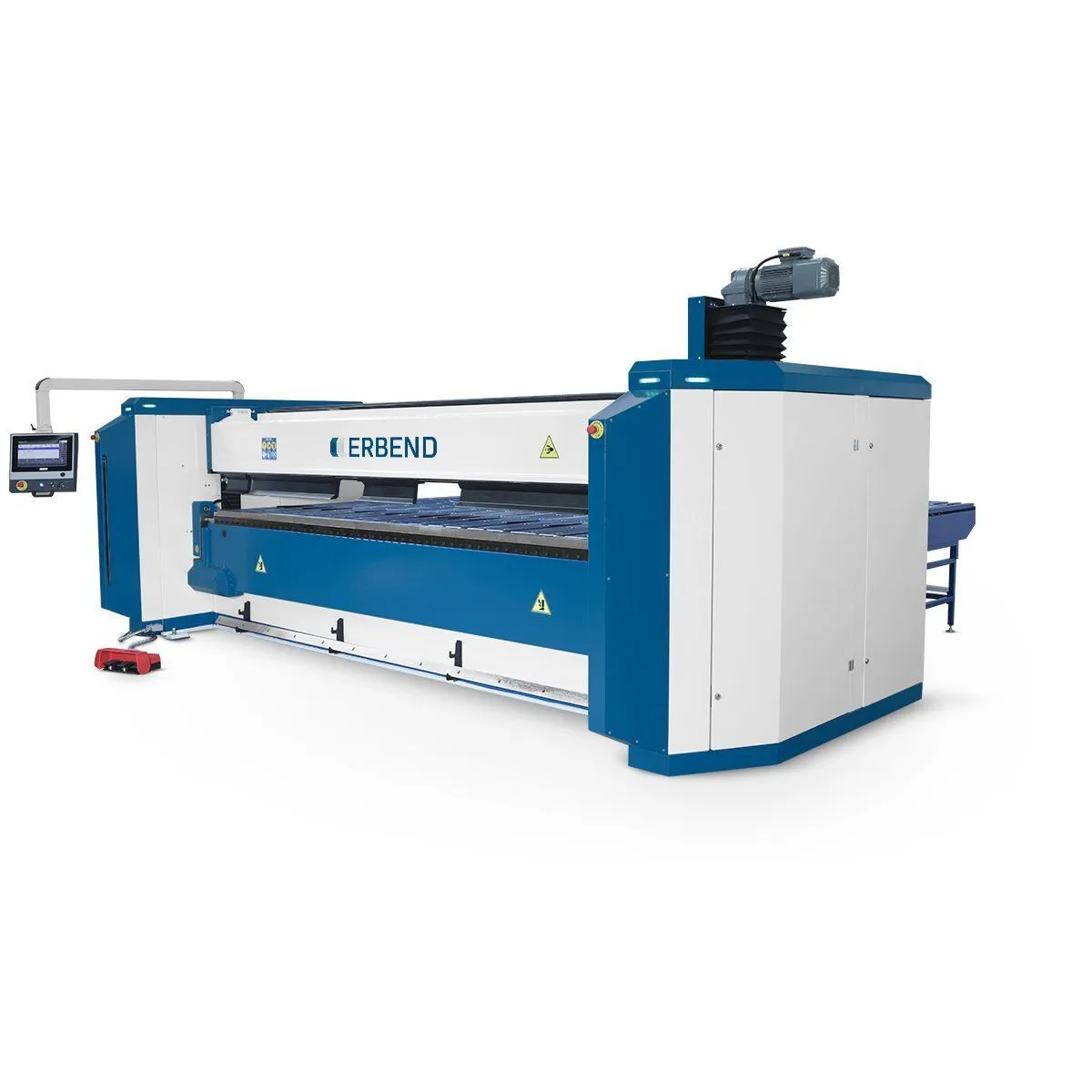

NEW ERBEND MFA 2040

Florida, United States
3,852Listings|9Followers
Overview
Folding machines

Discover precision with the new ERBEND MFA 2040 6 ft CNC Sheet Metal Folding Machine. Capable of folding angles up to 150°, it features a robust CNC system with quick clamp and folding speed, maximizing efficiency for a variety of metals.

Specs
Max Sheet Length
81"
2,057.4 mm
Max Sheet Length
6'
1.8 m
Mild Sheet
0.157"
3.9878 mm
Stainless
0.118"
2.9972 mm
Aluminum
0.236"
5.9944 mm
Upper Beam (Z axis) - Opening height (without tools)
9.84 in.
9.84 in.
Combi/Upper Beam (Z axis): Motor Power (Servo)
2 X 3,5 kW
2 X 3,5 kW
Upper Beam (Z axis) - Transmission system
Ballscrew spindle
Ballscrew spindle
Upper Beam (Z axis) - Clamping speed
2.55 in.
2.55 in.
Combi/Upper Beam (Z axis): Combi beam rotation (180°) time
10 sec
10 sec
Folding Beam (Y axis) - Folding angle
0 - 150°
0 - 150°
Folding Beam (Y axis) - Motor Power (Sew Eurodrive AC)
2 X 4 kW
2 X 4 kW
Folding Beam (Y axis) - Folding Speed
70°/sec
70°/sec
Folding Beam Height Adjustment (A1-A2 axis) - Adjustment height
0 to 3.14 in.
0 to 3.14 in.
Folding Beam Height Adjustment (A1-A2 axis) - Control
Manual
Manual
Back gauge system (X axis) - Movement speed
11.81 in. /sec
11.81 in. /sec
Back gauge system (X axis) - Motor Power (Servo)
750 W
750 W
Back gauge system (X axis) - Positioning / repeatability accuracy
+/- 0,1 mm
+/- 0,1 mm
Dimensions
142 x 90.5 x 90.5 in.
142 x 90.5 x 90.5 in.
Weight
14,551 lbs.
14,551 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
