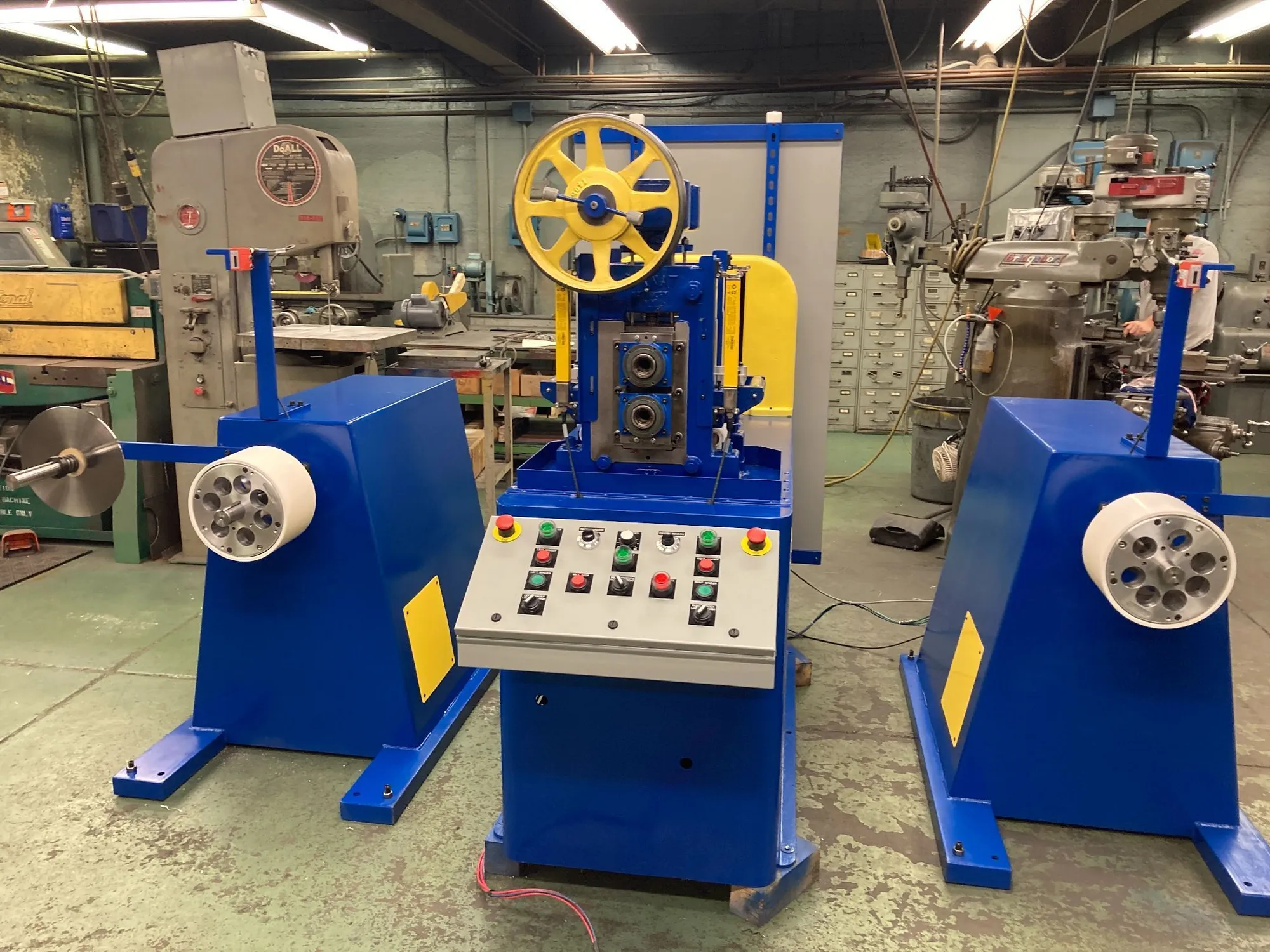

Introducing the Stanat TA-215 0.875" x 4" x 6" 2-High/4-High Reversing Rolling Mill, equipped with coil winders. This new combination mill is IRM factory refurbished, designed for superior performance and precision in demanding applications.
| Work Roll Diameter | 0.875" | 22.225 mm |
| Work Roll Width | 6" | 152.4 mm |
| Backup Roll Diameter | 4" | 101.6 mm |
| Backup Roll Width | 6" | 152.4 mm |
| Roll Finish | Satin | Satin |
| Roll Material | High Carbon Chromium Alloy Steel | High Carbon Chromium Alloy Steel |
| Roll Gap Adjustment | Dual handwheels can allow for simultaneous or independent roll gap adjustment. | Dual handwheels can allow for simultaneous or independent roll gap adjustment. |
| Mill Power | 5 HP | 5 HP |
| Mill Separating Force | Approximately 50,000 LBS | Approximately 50,000 LBS |
| Mill Voltage | Customer Choice | Customer Choice |
| Mill Phase | 3-Phase | 3-Phase |
| Mill Controls | New Variable Speed AC Inverter | New Variable Speed AC Inverter |
| Mill Tables | Tables will be installed on the entry and exit of the mill. | Tables will be installed on the entry and exit of the mill. |
| Mill Safety | All nip points will be guarded. | All nip points will be guarded. |
