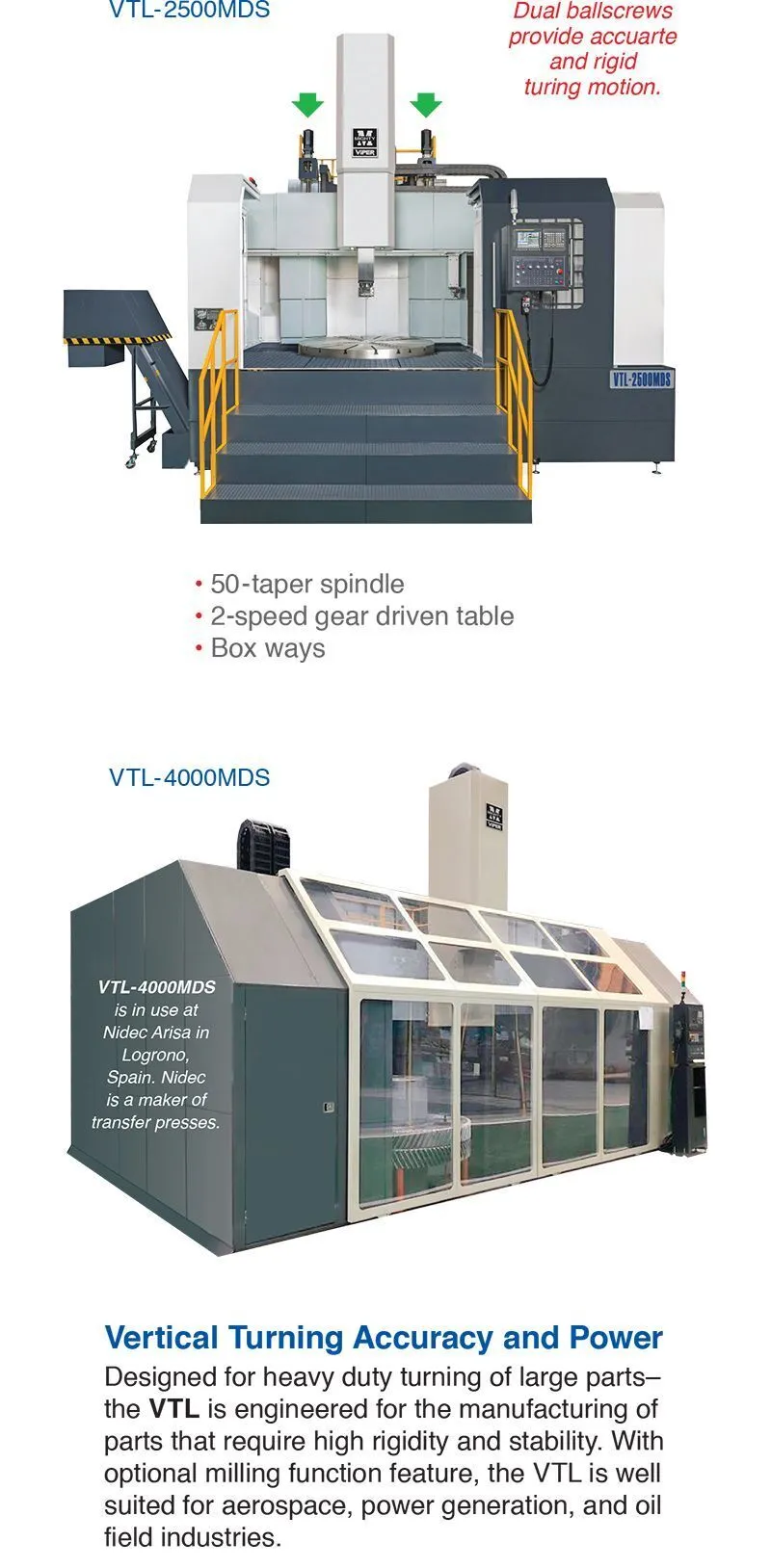

NEW MIGHTY VIPER VTL-MDS 2500-4000

Designed for large parts vertical turning with an optional milling function. Features a W-axis with dual columns, and dual ballscrews. And two spindle motors to power the work table.

Performance Specifications
Machine Model 2500MDS 4000MDS
Table Diameter 78 118
Turning Diameter Max. 96 157
Swing Max.
98 157
Table Load Max. (lb) 44,000 66,000
X-Travel
70 161
Z-Travel
39 59
Table Speed 2-step (rpm) 200 80
W-Axis Crossrail Stroke 32 59
Crossrail Levels – 9.8 x 7 levels
Main Table Motor** (hp) 50 x 2 60 x 2
ATC Tools 18 18
Unit= inch | *Optional accessory | **30 minute rating

Available Models: 2500, 4000
