3" OLIVER "600" WET-TYPE DRILL POINTER GRINDER - 0.5" to 3" Drill Diameter Range - Coolant System (Tank & Pump)
| Drill Capacity (min) | 0.5" | 12.7 mm |
| Drill Capacity (max) | 3" | 76.2 mm |
| Power | 1.5 hp | 1.1 kW |
| Max RPM | 2,200 RPM | 2,200 RPM |
| Dimensions | 37" x 49" x 50"H | 37" x 49" x 50"H |
| Weight | 1550 LBS | 1550 LBS |

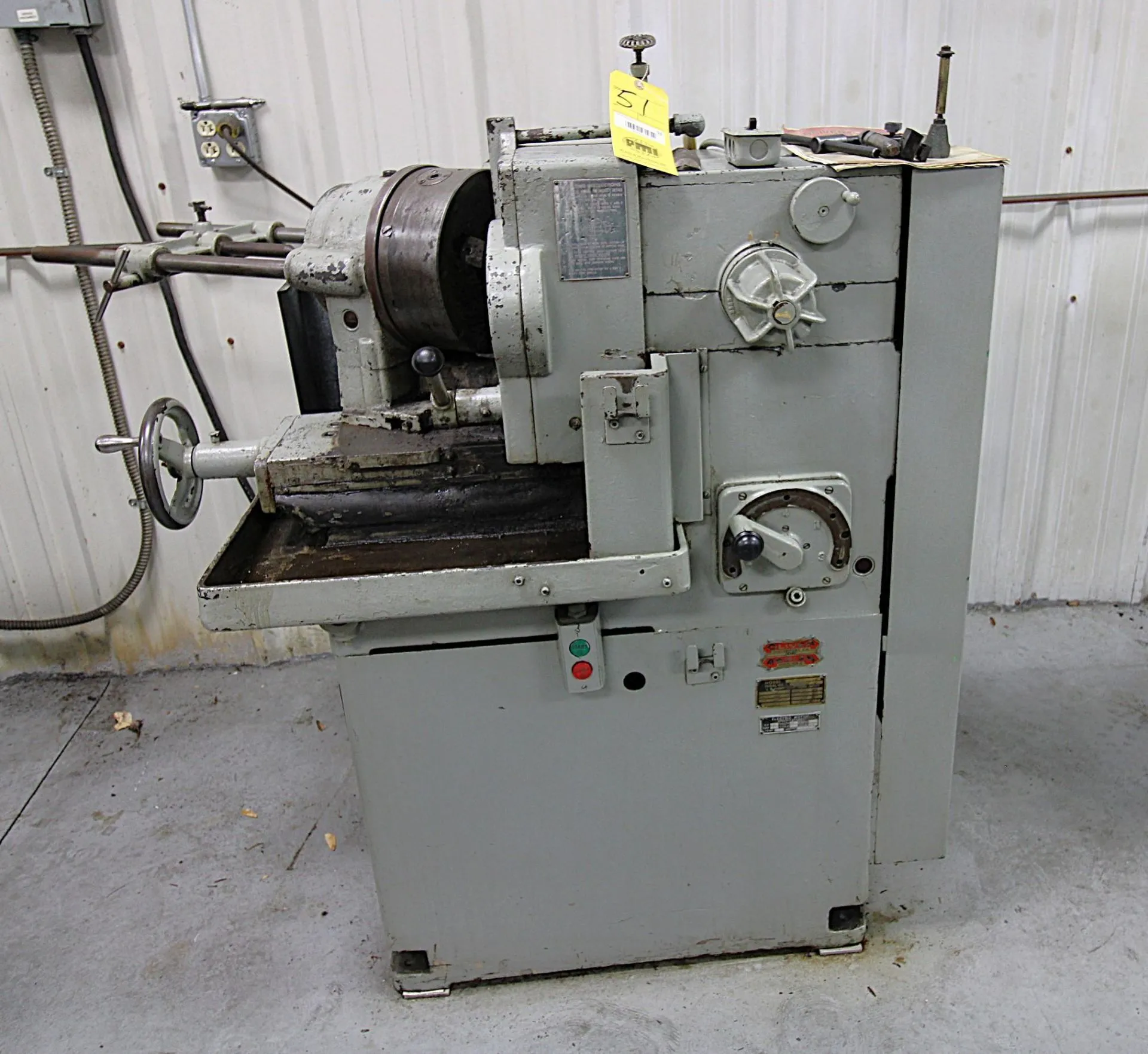

600 OLIVER WET-TYPE DRILL GRINDER
Serial No G6256, Model 600
EQUIPPED WITH:
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Drill Diameter Capacity, Range .5" to 3"
Drill Diameter Capacity, 3-Flute Drills 2.75"
Flute Capacity 2, 3, or 4
Point Angle Degrees, Included Range 80 to 160
Grinding Wheel Diameter (Cup-Type) 9"
Grinding Wheel Width 2"
Grinding Wheel Hole Diameter 5"
Grinding Spindle Speed 2200 RPM
Spindle Motor, Horsepower/RPM 1.5 HP/1800 RPM
Floor Space Required, W x D 3'1" x 4'1"
Overall Height 4'2"
Weight, Approximately 1530 LBS
F.O.B. ON WAY IN
