36" BLANCHARD "18D-36" VERTICAL SPINDLE ROTARY SURFACE GRINDER - Segmented Grinding Wheel - Coolant Filtration System - Electro-Magnetic Chuck w/Controls - 25 HP
| Chuck Size | 36" | 914.4 mm |
| Horz/Vert | 'Vert' | 'Vert' |
| Power | 25 hp | 18.6 kW |
| Swing | 38" | 965.2 mm |
| Under Wheel | 12" | 304.8 mm |
| Grinding Wheel Dia. | 18" | 457.2 mm |
| Dimensions | 9'4" x 5'5" | 9'4" x 5'5" |
| Weight | 13000 LBS | 13000 LBS |

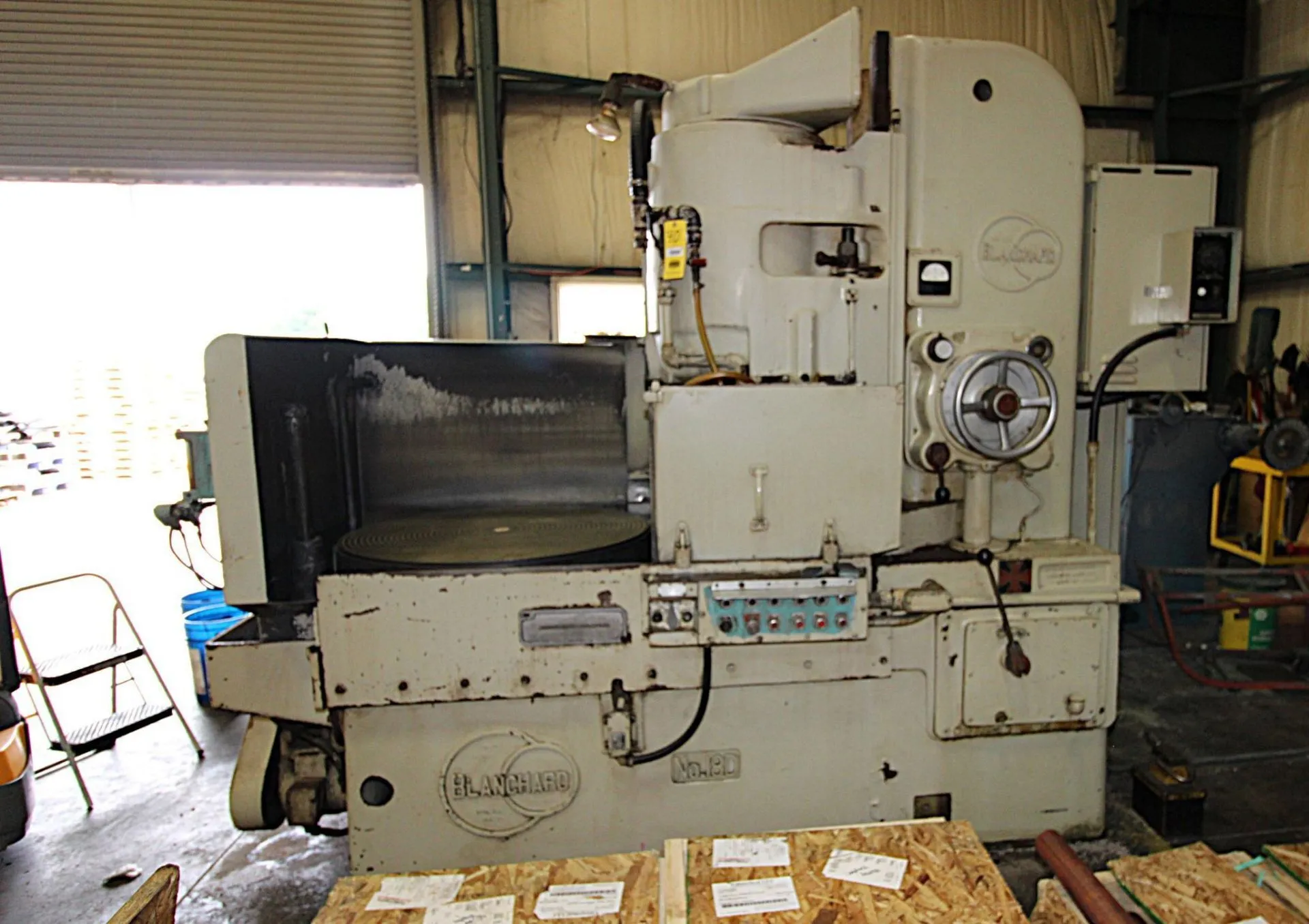

36" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 11558, Model 18D-36
EQUIPPED WITH:
Vertical-Spindle Machine Design
36" Diameter Magnetic Chuck w/Controls
Segmented Grinding Wheel
Coolant Filtration System
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 36"
Magnetic Chuck Work Load Capacity 3000 LBS
Height Under Grinding Wheel, Maximum 12"
Grinding Wheel Diameter, Maximum 18"
Grinding Wheel Speeds, Range 720 RPM
(6) Chuck Speeds, Range 6 to 33 RPM
Power Down Feeds, Range .004 to .080 IPM
Spindle Motor, Horsepower 25 HP
Electrical System 220-440/3/60
Overall Dimensions, W x D 9'4" x 5'5"
Weight, Approximately 12900 LBS
F.O.B. OUR WAREHOUSE
