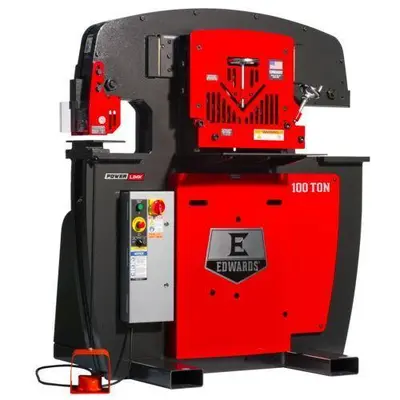

NEW EDWARDS 100 TON

SPECIFICATIONS:

PUNCH
Rating --------------- 100 Tons
Max. Capacity -------- 1-1/16 in Dia. in 1 in A36
(65,000 PSI Tensile)
Stroke --------------- 1-13/16 in
Throat Depth --------- 11 in
Open Height ---------- 8-3/4 in
Shut Height ---------- 6-15/16 in
Work Height ---------- 39-1/16 in

FLAT BAR SHEAR
Max. Capacity -------- 3/4 in x 14 in
1 in x 10 in
Max. Round ----------- 1-1/4 in
Max. Square ---------- 1-1/4 in
Work Height ---------- 37 in

ANGLE SHEAR
Max. Capacity -------- 6 in x 6 in x 1/2 in
Work Height ---------- 43-15/16 in

OPTIONAL COPER NOTCHER
Max. Capacity -------- 2-1/2 in x 6 in x 1/2 in
Work Height ---------- 42 in

OPEN STATION
Throat Depth --------- 14-3/4 in
Open Height ---------- 8-3/4 in
Shut Height ---------- 6-15/16 in
Stroke --------------- 1-13/16 in
Work Height ---------- 37 in

GENERAL SPECIFICATIONS
Standard Motor ------- 7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Optional Motors ------ 7.5 HP 3~ 460 V
1765 RPM 11 A

7.5 HP 3~ 575 V
1770 RPM 8 A

5 HP 1~ 208 V or 230 V
1725 RPM 23 A

*7.5 HP 1~ 230 V
1765 RPM 36 A
*Required for 1~
Hydraulic Accessory Pack
Hydraulic Pump ------- 10-1/2 GPM - 2 Stage
Valve Pressure ------- 3500 PSI
Reservoir ------------ 17 Gallons
Cylinder ------------- 3-1/2 in Ram

DIMENSIONS
Height --------------- 61-11/16 in
Width ---------------- 56-1/8 in
Depth ---------------- 45 in
Shipping Weight ------ 4650 lb

FEATURES:

Four Available Workstations
High Capacity Angle Shear
Universal Open Tooling Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls

If you ftre looking for versatility and power, the Edwards
100
Ton JAWS Ironworker is perfect for your shop. Standard
features
include a Punch Assembly, a 14 in wide Flat Bar Shear, a high
capacity Angle Shear and a universal open tooling station
designed for optional Tooling Accessories allowing you to
select the perfect tool for your needs.

The optional Hydraulic Accessory Pack allows your
Ironworker to
act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender,
20 Ton Shop Press and 40 Ton Shop Press.

SPECIFICATIONS SUBJECT TO VERIFICATION

OPTIONAL FEATURES:

1 PHASE, 230V --------------------------$ 300.00
3 PHASE, 460V --------------------------$ 120.00
3 PHASE, 575V --------------------------$ 604.00
HYDRAULIC ACCESSOR PACK NEW MACH. ONLY -$ 1,100.00
ACCESSORY LIGHT ------------------------$ 85.60
AUTO CUT -------------------------------$ 802.50
ANGLE NOTCHER 3 in X 3 in X 1/4 in -----------$ 1,162.02
8 in BRAKE W/4-WAY DIE 12 in ----------------$ 1,300.05
COPER NOTCHER ASSEMBLY -----------------$ 1,407.05
MULTI SHEAR (ANGLE, BAR, ROD SHEAR) ----$ 979.05
PIPE NOTCHER HOUSING:
(SCHEDULE 40 - 1/2 in - 2 in ) --------------$ 371.29
QUICK CHANGE PUNCH COUPLING ------------$ 665.54
ROD SHEAR & HOUSING:
(1/4 in , 3/8 in , 1/2 in , 5/8 in , 3/4 in , 1 in ) -----$ 1,358.90

DELIVERY: IMMEDIATE - SUBJECT TO PRIOR SALE
