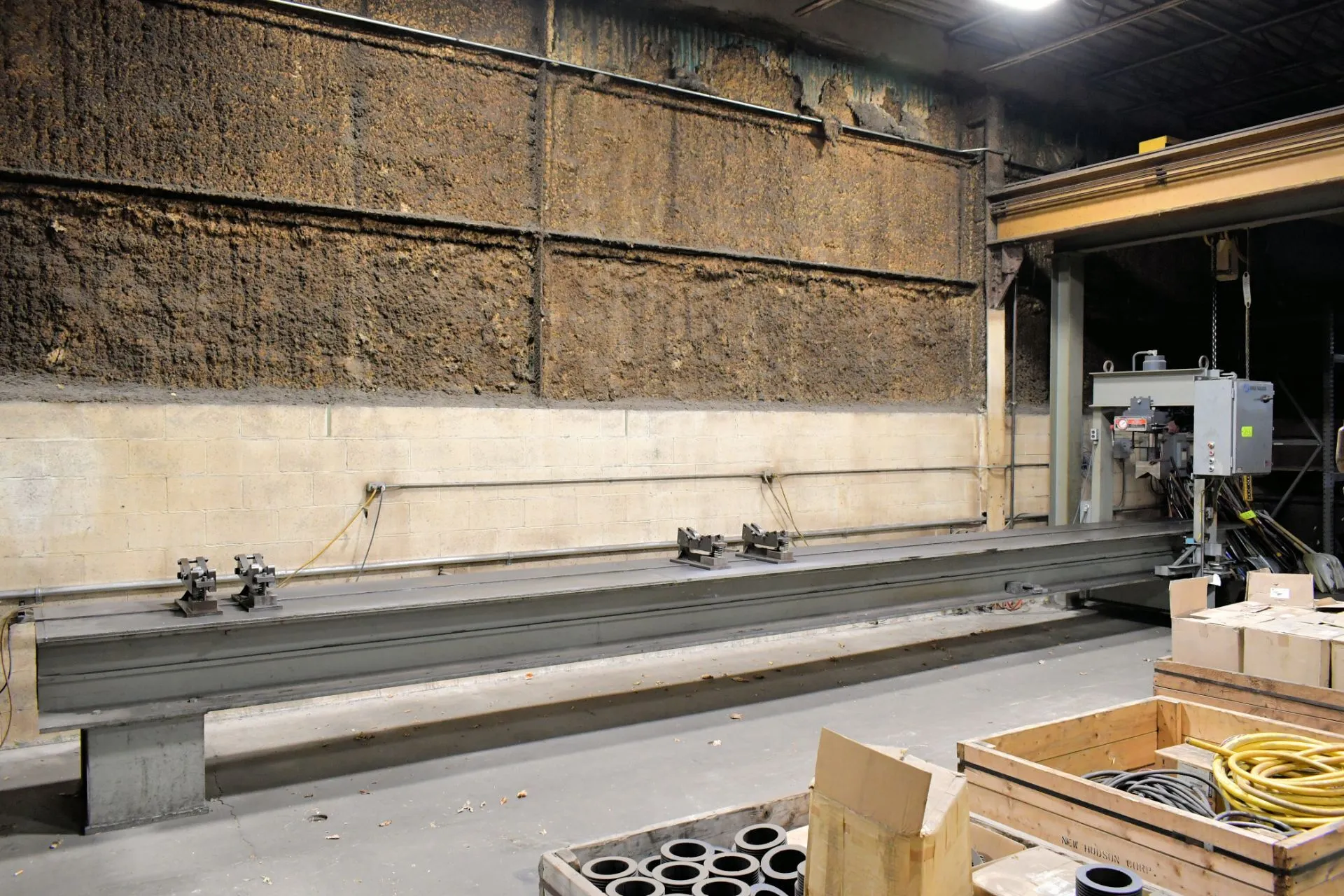

75 TON DAKE "5-075" ELEC-DRAULIC H-FRAME TRAVELING COLUMN HYDRAULIC STRAIGHTENING PRESS - 31" X 30' (360”) Work-Table w/Supports
| Dimensions | 360" x 64" x 96"H | 360" x 64" x 96"H |
75 TON DAKE ELEC-DRAULIC H-FRAME TRAVELING-COLUMN HYDRAULIC
STRAIGHTENING PRESS
Model 5-075
EQUIPPED WITH:
Power Column Traverse
2 HP Elec-Draulic Moveable Workhead
Variable Ram Speed
(3) Adjustable Work Supports
CATAOG SPECIFICATIONS:
Tonnage Capacity 75 TON
Stroke Length 10"
Distance Between Housings 35"
Worktable Dimensions, L x W 360" (30') x 31"
Ram Speed, Pressing 5 IPM
Ram Speed, Advancing 28 IPM
Motor, Horsepower 2 HP/1745 RPM
Electrical System 230-460/3/60
Overall Dimensions, L x W 360" x 64"
Overall Height 96"
F.O.B. OUR WAREHOUSE
