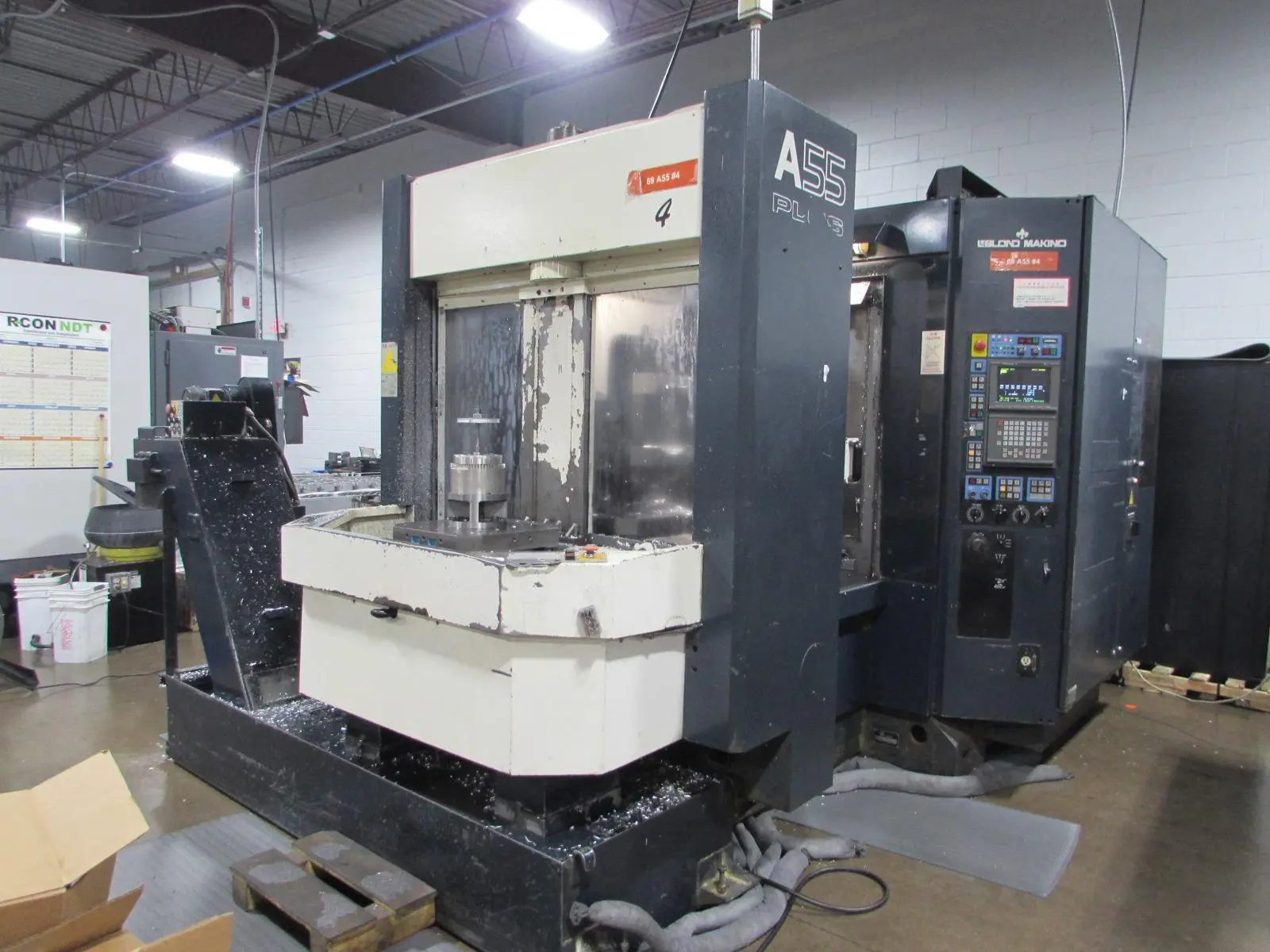

PREOWNED MAKINO CNC HORIZONTAL MACHINING CENTER WITH THRU SPINDLE COOLANT, MODEL #: A55, S/N: A93-441
| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 22" | 558.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 40 | 40 |
| Taper | BT-40 | BT-40 |
| Pallet-W | 16" | 406.4 mm |
| Pallet-L | 16" | 406.4 mm |
X 22.05 inches
Y 22.05 inches
Z 22.05 inches
X-Axis Rapid Feedrate 944.88
Y-Axis Rapid Feedrate 944.88
Z-Axis Rapid Feedrate 944.88
Cutting Rate .04 - 314.96 IPM
Spindle Speed 120-12,000 RPM
Spindle Taper Cat 40
Tool Changer Capacity 40
Coolant Through Spindle yes
Power 25 horsepower
Dimensions 112" X 148" X 115"
Weight 18519 pounds
CNC Control yes
Type of CNC Control Fanuc OM CNC Control
Pallet-W 15.75 inches
Pallet-L 15.75 inches
Pallet Capacity 882 pounds
