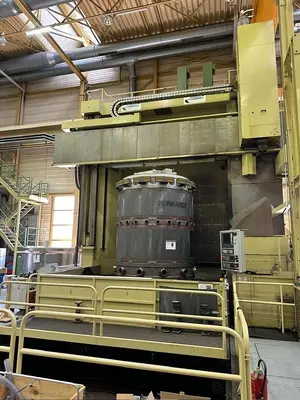

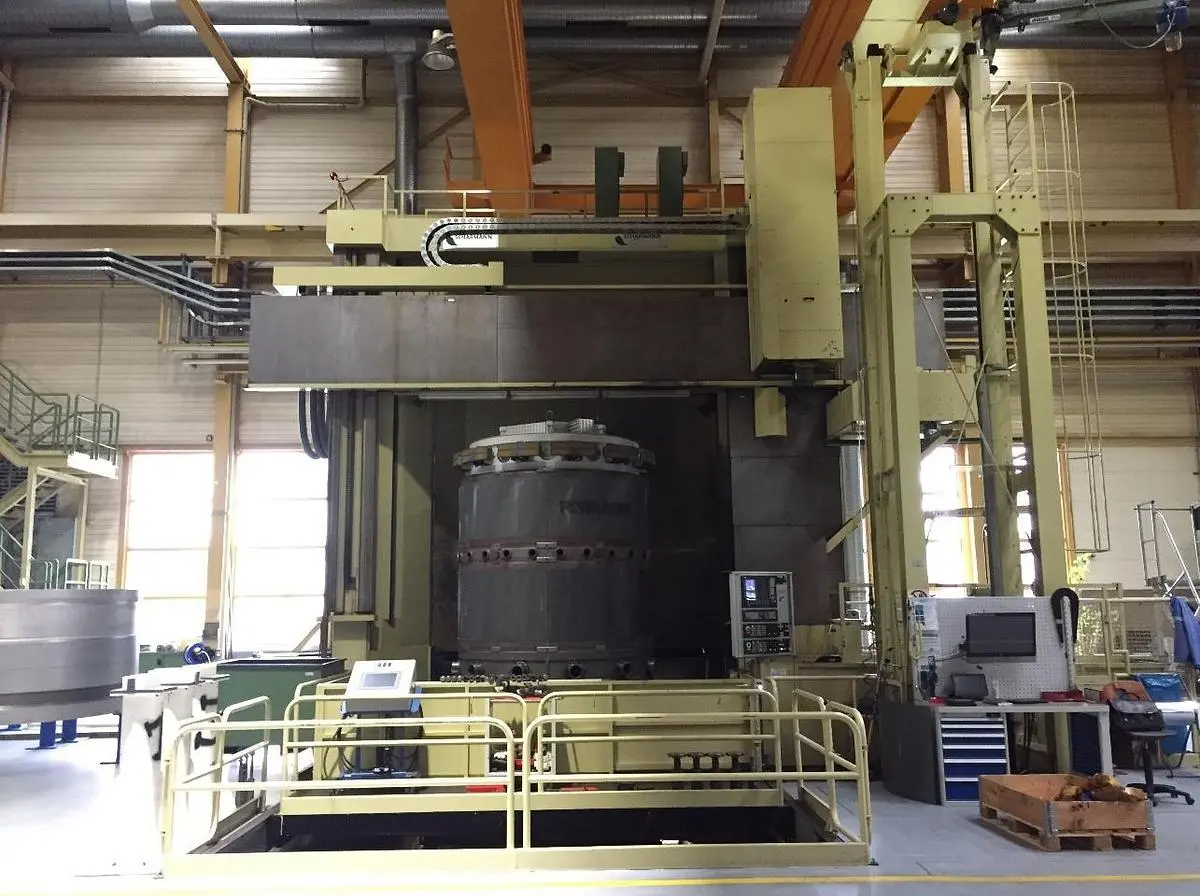

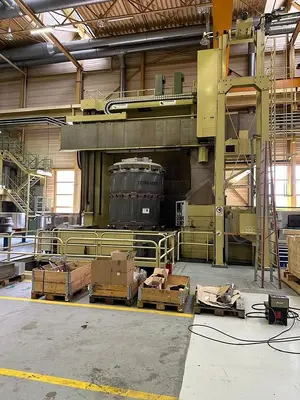

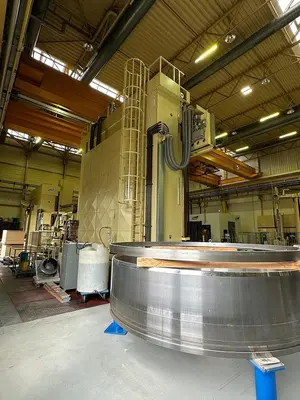

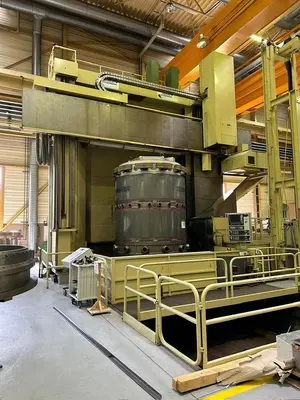

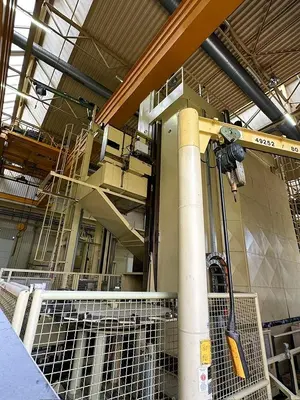

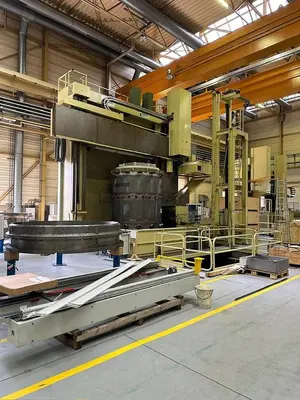

USED DORRIES SCHARMANN CONTUMAT 3 MC: VC 4600/400
Overview
Description

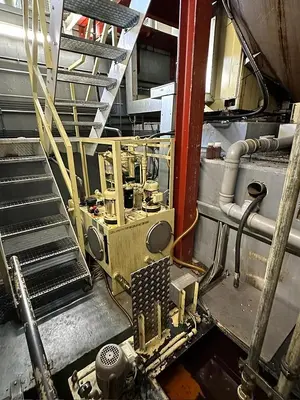

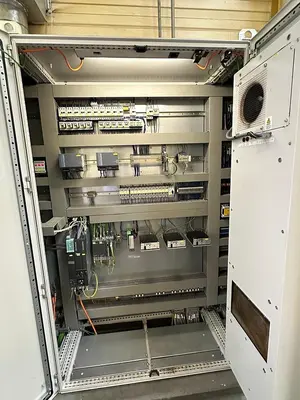

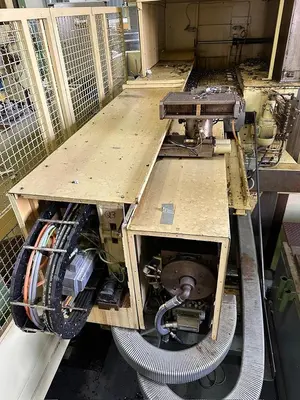

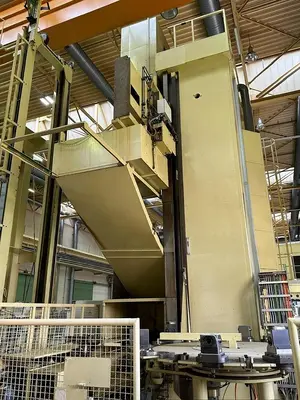

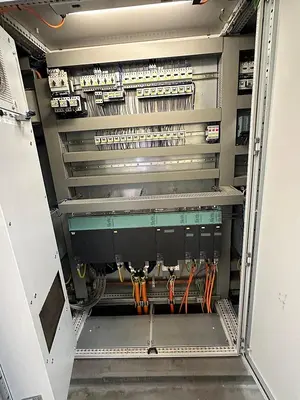

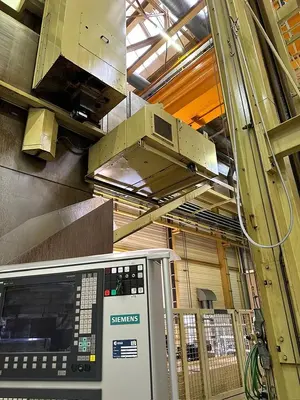

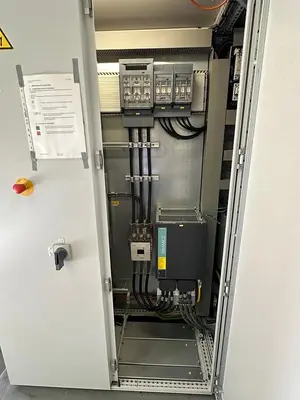

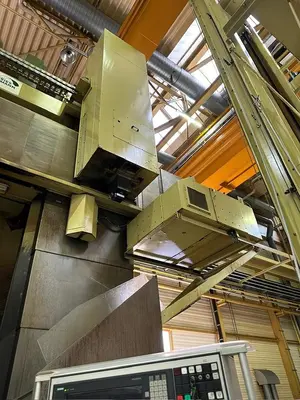

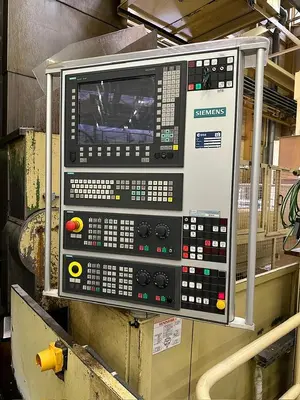

Rebuilt & Retrofitted In 2015Complete With:New Electrics & New Siemens 840 DSL CNC Control Operator Lifting PlatformChip ConveyorCoolant UnitTool ChangeRENISHAW ProbeSIEMENS 840 D SL CNC ControlVertical Ram (right)Horizontal travel Support 2.500 mmVertical travel of the RAM 1.800 mmCross-section of the RAM 240x240 mmTool changer placesSide Support Horizontal RamVertical travel of the Support 3.000 mmHorizontal movement of RAM 1.000 mmTurning diameter (max./min.) 4400/2400 mmTool changer
Specifications
Manufacturer: Dorries Scharmann
Model: Contumat 3 MC: VC 4600/400
Condition: Refurbished
Stock Number: 5654232

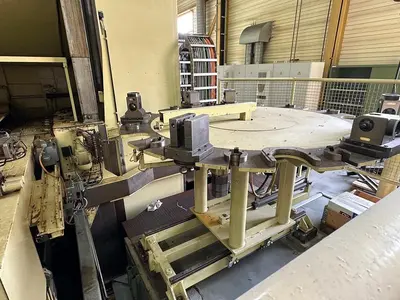

Table diameter: 4,000 mm
Swing: 4,200 mm
Turning height: 4,800 mm
Table capacity: 80 Ton
Table turn speed: 90 rpm
Crossrail travel: 3,700 mm (in 100 mm steps)
Y axis table travel: 2,000 mm
Side head live spindle motor: 22.5 kW
Side head live spindle torque: 900 Nm
Ram size: 240 x 240 mm
Main drive: 105 kW
Machine height above floor: 9,000 mm
