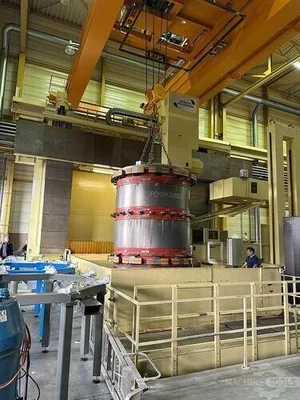

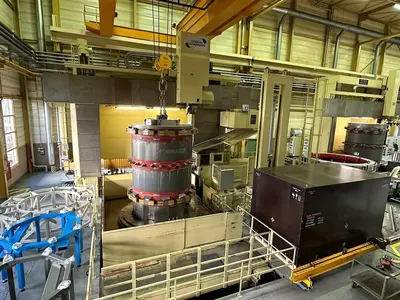

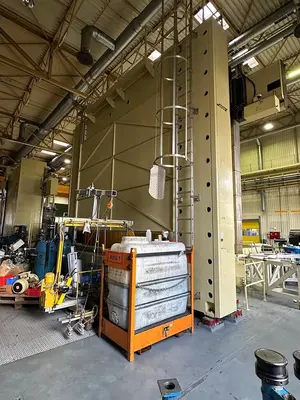

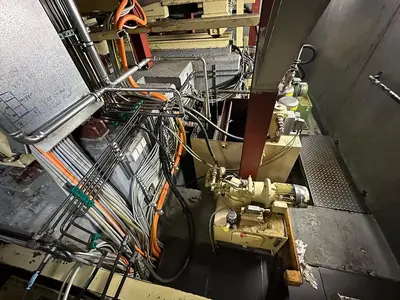

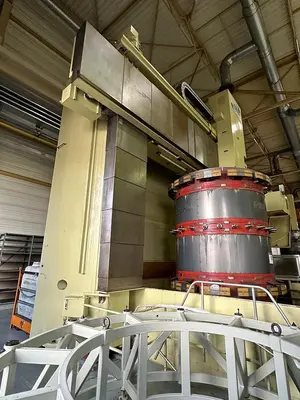

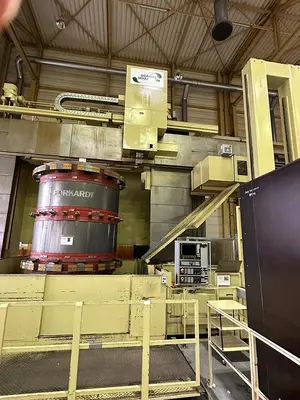

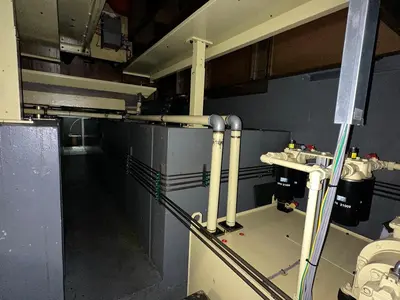

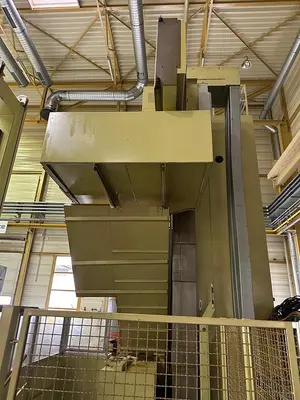

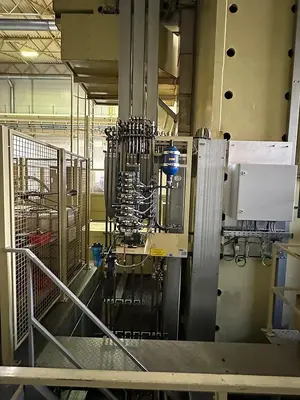

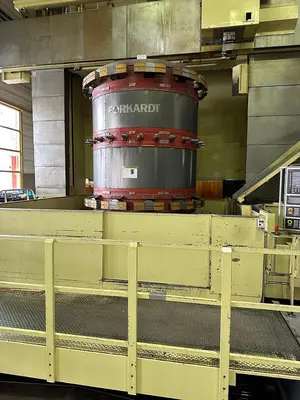

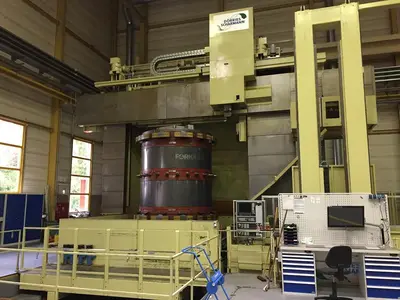

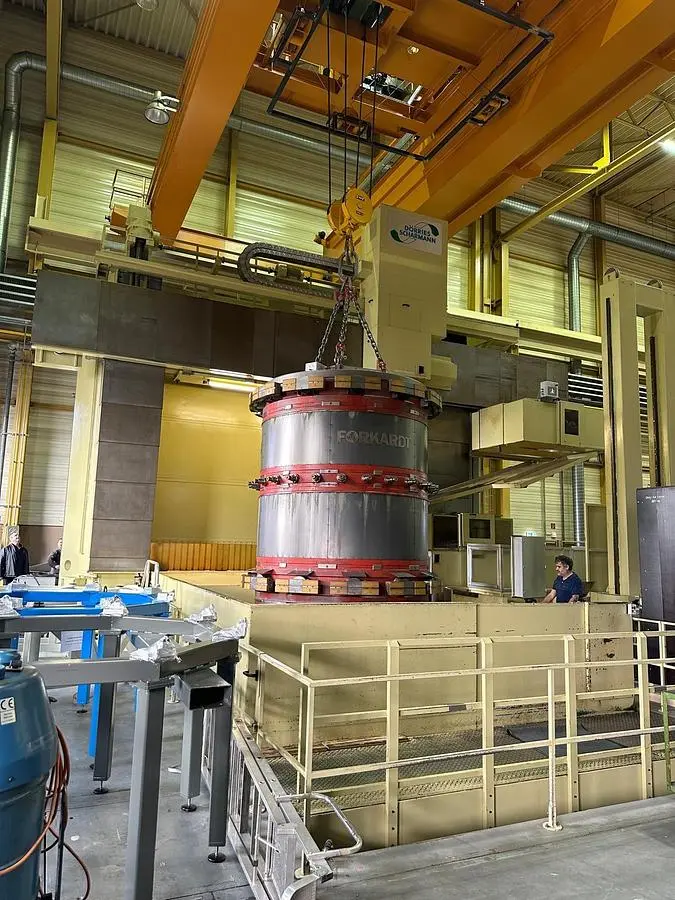

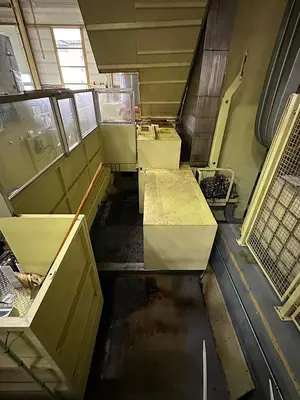

USED DORRIES SCHARMANN CONTUMAT 3 MC: VC 4200/360

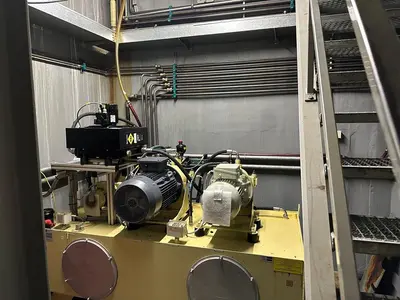

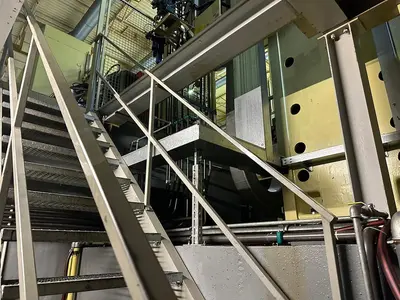

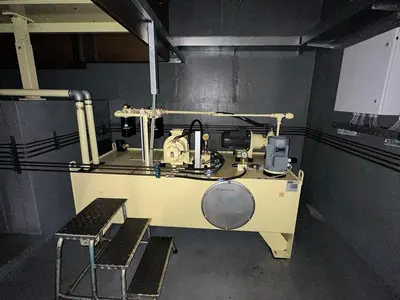

Fully Rebuilt & Retrofitted in 2015Complete New Electrics & New Siemens 840 Dsl CNC Control Operator Lifting PlatformChip ConveyorCoolant UnitTool ChangerRENISHAW ProbeSiemens 840D D SL CNC ControlVertical Ram Horizontal travel Support - 1800 bis + 2200 mmVertical travel of the RAM 1.500 mmCross-section oft he RAM 240x240 mmTool changer places 20 Pc.Side Head with Live SpindleVertical travel of the Ram 2.800 mmHorizontal movement of RAM 1.000 mmTurning diameter (max./min.) 4500/2500 mmTool changerLive Spindle Side Support:Motor Power 22,5 kWMax. Torque 900 Nm

Manufacturer: Dorries Scharmann
Model: Contumat 3 MC: VC 4200/360
Condition: Refurbished
Stock Number: 5654233
Table diameter: 3,600 mm
Swing: 4,200 mm
Turning height: 4,800 mm
Table capacity: 80 Ton
Table turn speed: 90 rpm
Y axis table travel: 2,000 mm
Crossrail travel: 2,800 mm (in 100 mm steps)
Ram size: 240 x 240 mm
Main drive: 105 kW
Machine height above floor: 8,700 mm
Connection to power: 380V / 50 Hz - 220V AC / 24V DC - 150 kVA - 400 A
