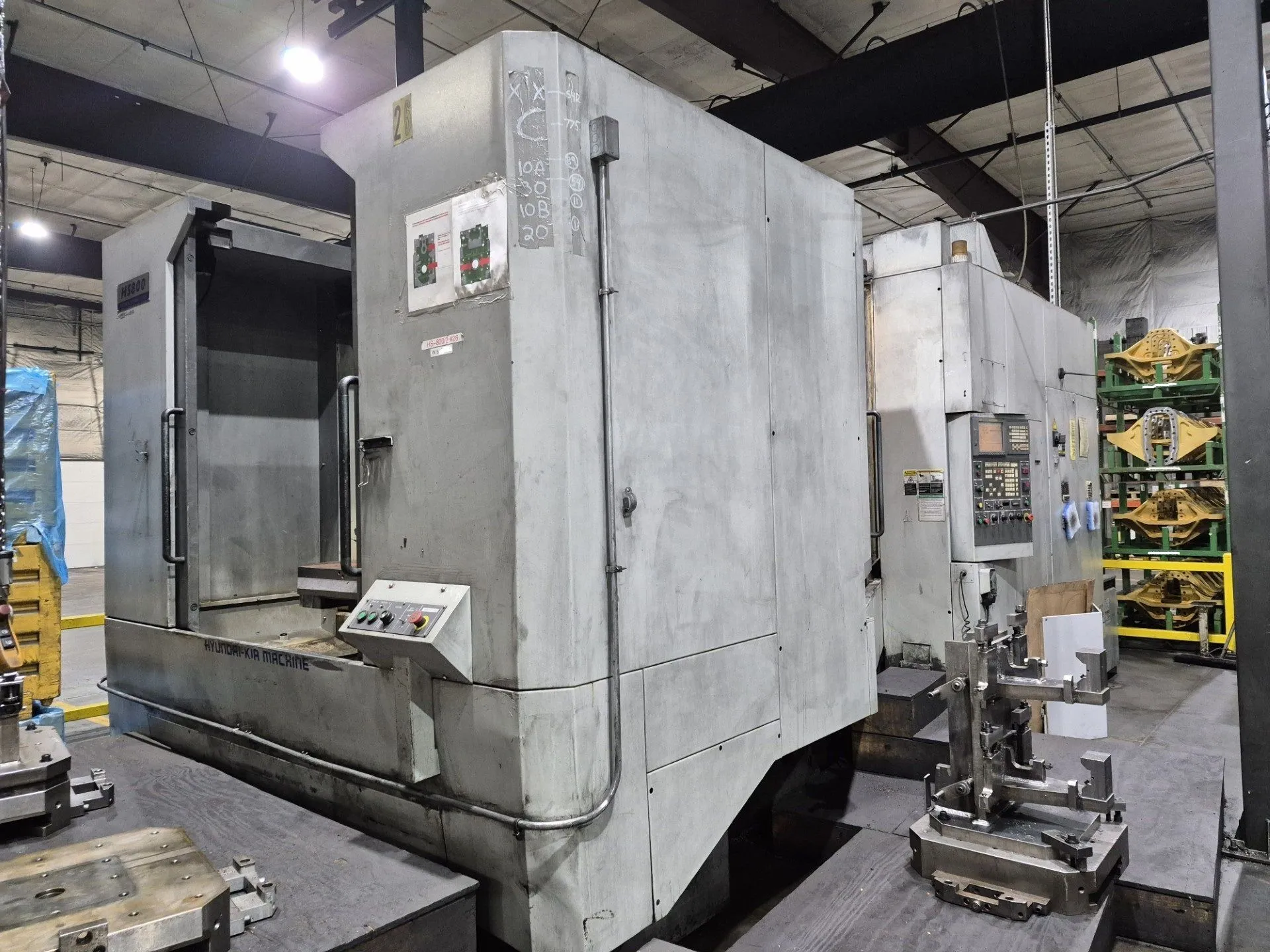

2012 Hyundai Kia HS800 Horizontal Machining Center with Fanuc 18i-MB Control, 8,000 RPM, CAT-50, Geared Spindle, Through Spindle Coolant, 1 Degree Indexing, 120 ATC, Renishaw Probe. (2) Machines Available. The second machine is a 10,000 RPM Model.
| X | 41.3" | 1,049 mm |
| Y | 34.4" | 873.76 mm |
| Z | 33.5" | 850.9 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT-50 | CAT-50 |
| Pallet-W | 31.5" | 800.1 mm |
| Pallet-L | 31.5" | 800.1 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 18i-MB) | CNC (Fanuc 18i-MB) |
| Weight | 55,115 LBS | 55,115 LBS |
Pallet Size..........................31.5" x 31.5"
Max. Workpiece Weight................3,527 LBS
B-Axis Indexing......................1°
Distance Between Table & Spindle.....3.2" - 37.6"
X-Axis Travel........................41.3"
Y-Axis Travel........................34.4"
Z-Axis Travel........................33.5"
Spindle Motor........................40 HP
Spindle Taper........................CAT-50
Spindle Speed........................8,000 RPM
Tool Changer.........................120 ATC
Machine Weight.......................55,115 LBS
Fanuc 18i-MB CNC Control
8,000 RPM, CAT-50 Spindle
Through Spindle Coolant
1 Degree 4th Axis
120 Station ATC
Renishaw Probe
Cooljet
Transformer
Belt Feed Chip Conveyor
HOURS:
Operating Time..........38,798
Cutting Time............21,478
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
