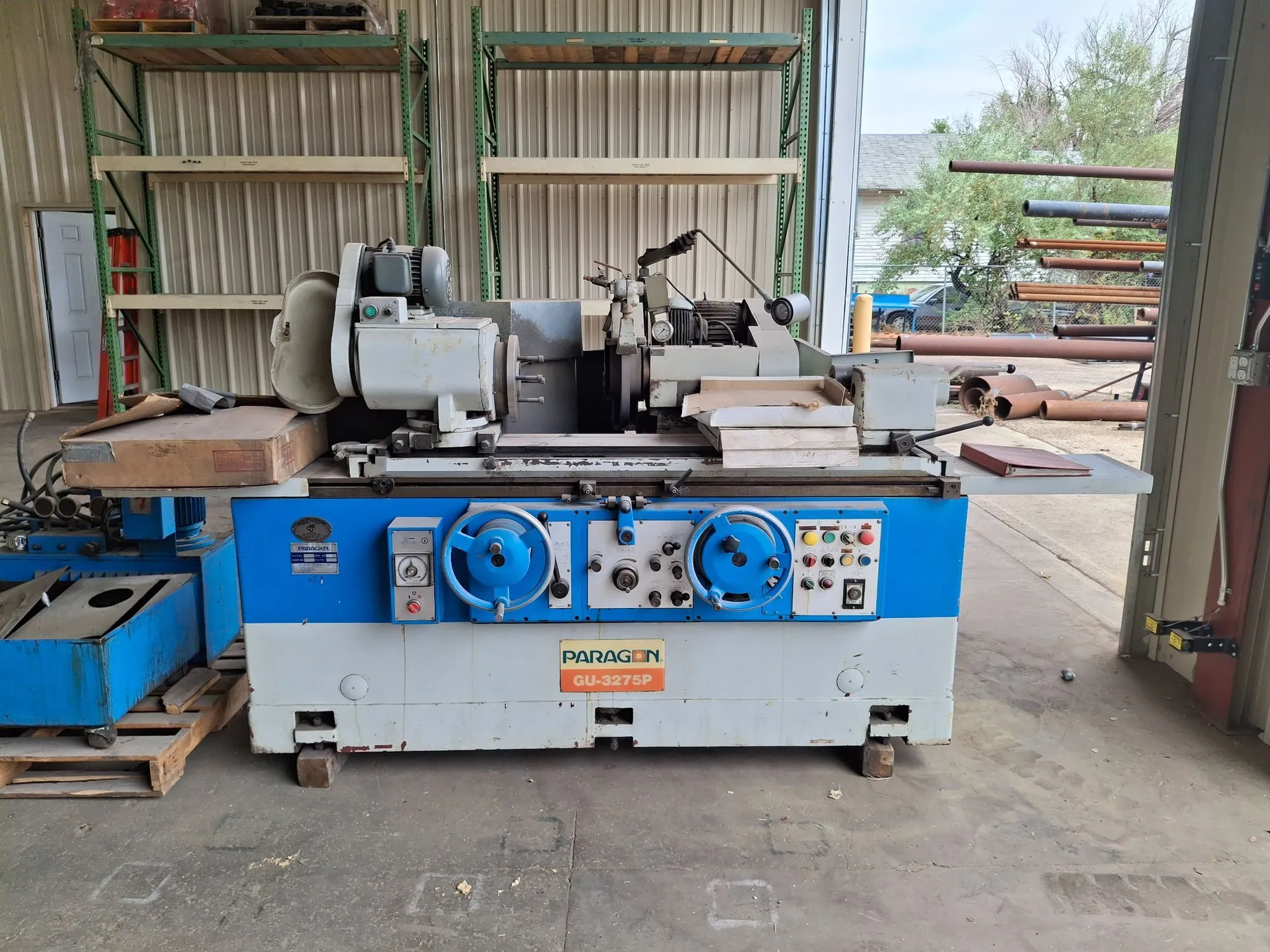

1992 Paragon GU-3275P Universal Cylindrical Grinder with Internal Grinding Wheel, Coolant System, and 12.59" x 29.5" Capacities.
| Swing | 320 mm | 12.598" |
| Centers | 750 mm | 29.528" |
| Power | 5 hp | 3.7 kW |
| Workhead Power | 1 kW | 1.3 hp |
| Workhead Speed | 750 RPM | 750 RPM |
| Grinding Wheel Dia. | 405 mm | 15.945" |
| Max Weight Between Centers | 150 kg | 330.7 lb |
| Dimensions | 145" x 90" x 71" | 145" x 90" x 71" |
| Weight | 8,157 LBS | 8,157 LBS |
Swing.........................................12.59"
Center Distnce................................29.5"
Max. Grinding Diameter........................11.02"
Max. Grinding Wheel...........................16" x 2" x 5"
Max Weight Capacity...........................330 LBS
Max. Grinding wheel speed.....................1,550 RPM
Wheelhead handwheel feed stroke...............160
Wheelhead automatic rapid feed stroke.........40
Wheelhead automatic infeed stroke.............0.001"
X-axis min. resolution increment..............0.001"
X-axis rapid traverse speed...................6
Z-axis min. resolution increment (mm).........0.01
Z-axis can be swiveled manually in deg........0 ~ +5 Degree
Z-axis min. automatic reciprocating stroke....10 - 14
Workhead spindle speed........................5 - 750 RPM
Workhead swiveling angle......................90° - 30°
Tailstock hyd. Sleeve retraction..............1.37"
Tailstock center..............................MT-4
Wheel spindle motor...........................5 HP
Workhead spindle servo........................1 KW
Internal grinding motor.......................1 HP
Machine dimensions............................145" x 90" x 71"
Machine weight................................8,157 LBS
Internal Grinding Attachment
Coolant System
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
