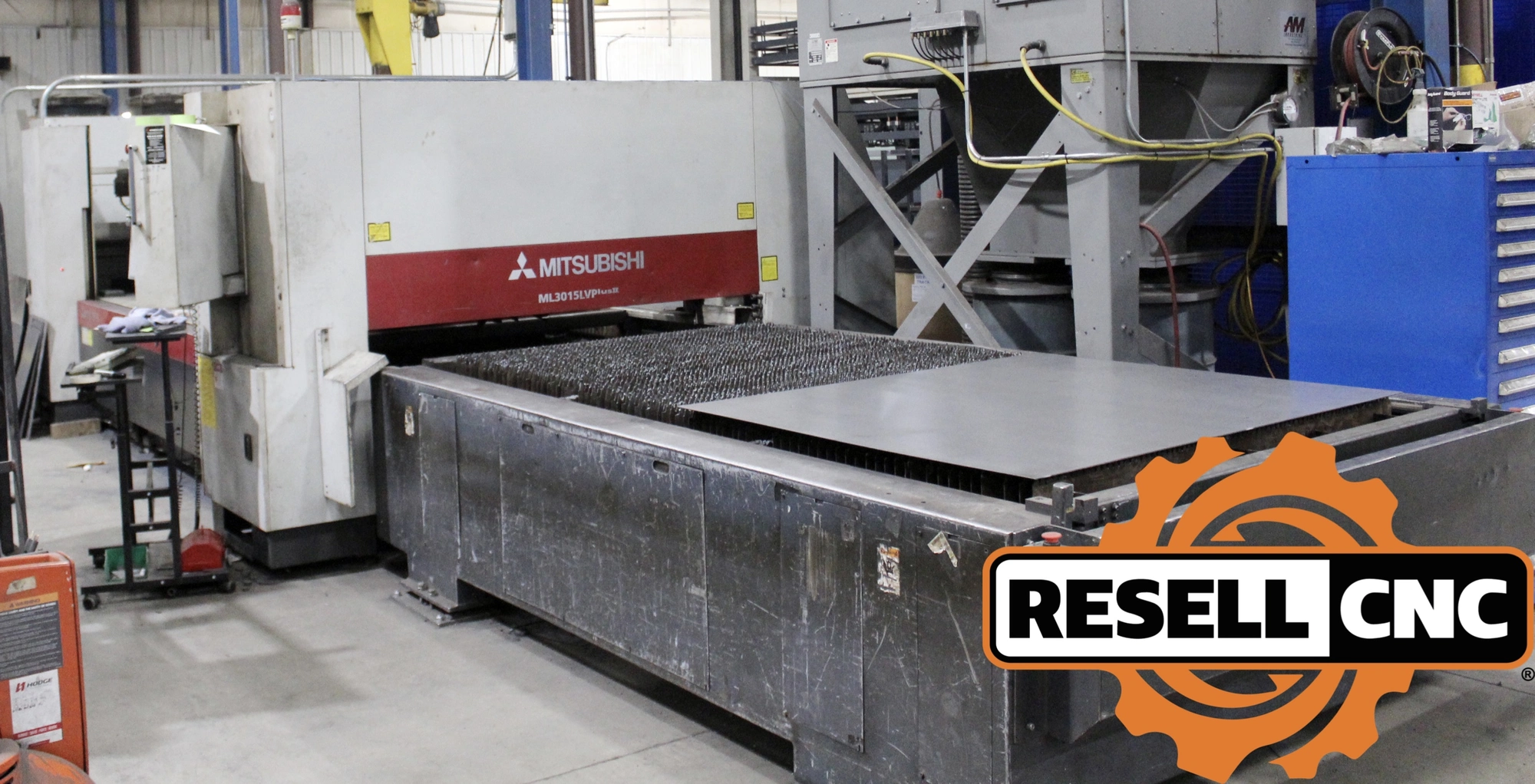

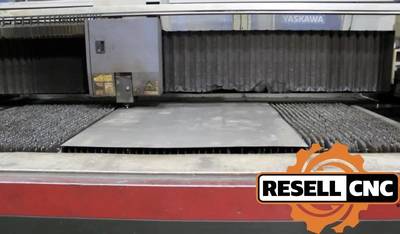

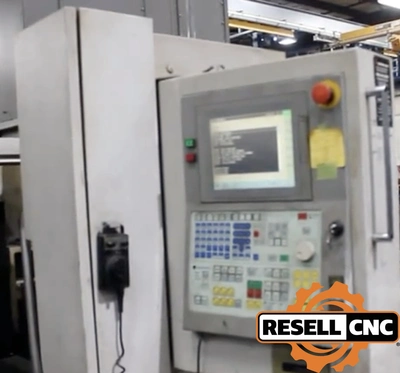

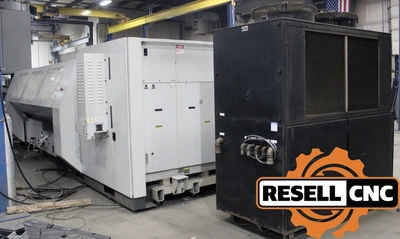

USED 2010 Mitsubishi ML3015LVPlus

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Software Interface:

Minimum Command Input: 0.001mm/.0001”

Additional Machine Specs: Laser Specs:

Machine Structure: Precision Rack and Pinion, Direct Drive

Travel drive Method: X,Y, Z Simultaneous 3 Axes

Control method: X,Y, Z Simultaneous 3 Axis Control

X-Axis stoke: 122.05”

Y-Axis stroke: 61.02”

Z-Axis Stroke: 3.54”

Maximum Work Piece Size: 120.08” x 60.04”

Maximum Processing Feed Rate: 1180 Inches per Minute

Maximum Workpiece Weight: 2050 Lbs.

Table Pass Height: 33.5”

Rapid Travel Speed

Single Axis: 3345 Inches per Minute

Simultaneous: 4730 Inches per Minute

Drive Motor Type: Intelligent AC Servo

Electrical Requirements: 208 VAC +/- 5%, 3 phase, 60 Hz

Motion System, CNC Control: 71 KVA (Total Machine Usage)

Laser Resonator: 202 (Full Load Amps)



Pallet Change Time: Approximately 25 seconds

Pallet Changer Drive Mechanism: Chain



Approx Weight And Dims Of Accessories: Pallet Changer

Installation Dimensions: 473.4” x 227.7"

Floor Space Requirement: 750 sq. ft.

Pallet Changer Weight: 4500 Lbs.

B Axis: false
C Axis: false
Control Options: G-Code
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
