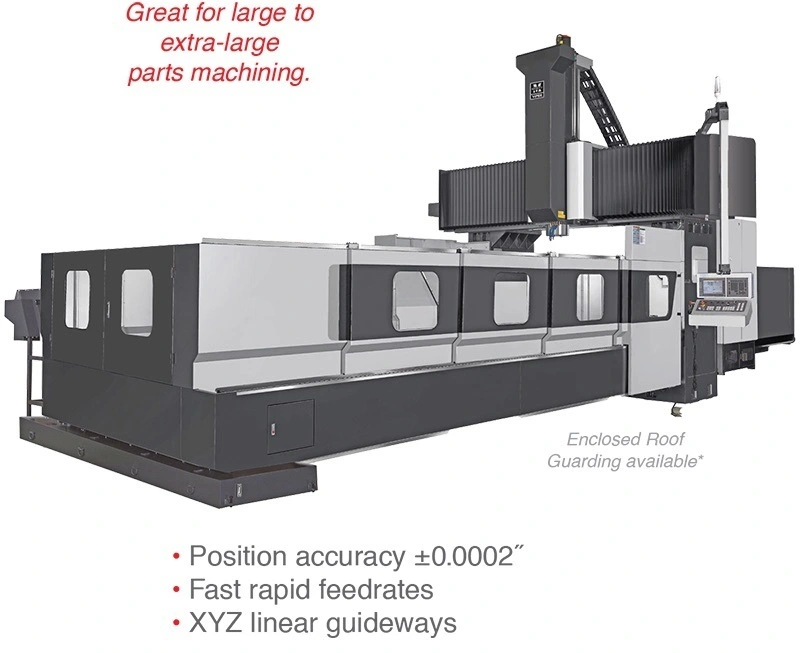

NEW MIGHTY VIPER PRL

Fast axial movement with linear guideways on X and Y travels. Provides a wider work table-up to 14.8 feet in width. Features a rigid structure with multiple guideways that ensure stable axial movement. Excellent for the die/mold, automotive, and aerospace industries.

X-Travel 87~402
Y-Travel 63~177
Z-Travel 31 / 39 / 47* / 59*
Nose Taper #50 / #40*
Speed (Gear) rpm 4500 / 6000*
Speed (DDS) rpm 8000 / 10,000
Drive Motor** (hp) 25 / 30 / 35*
CNC Control Fanuc / Mitsubishi*

Unit= inch | *Optional accessory | **30 minute rating

Available Models: PRL-2216, PRL-2716, PRL-3216, PRL-4216, PRL-2220, PRL-2720, PRL-3220, PRL-4220, PRL-3223~PRL-6223, PRL-3226~PRL-10226, PRL-4230~PRL-10230, PRL-4235~PRL-10235, PRL-4240~PRL-10240, PRL-4245~PRL-10425
