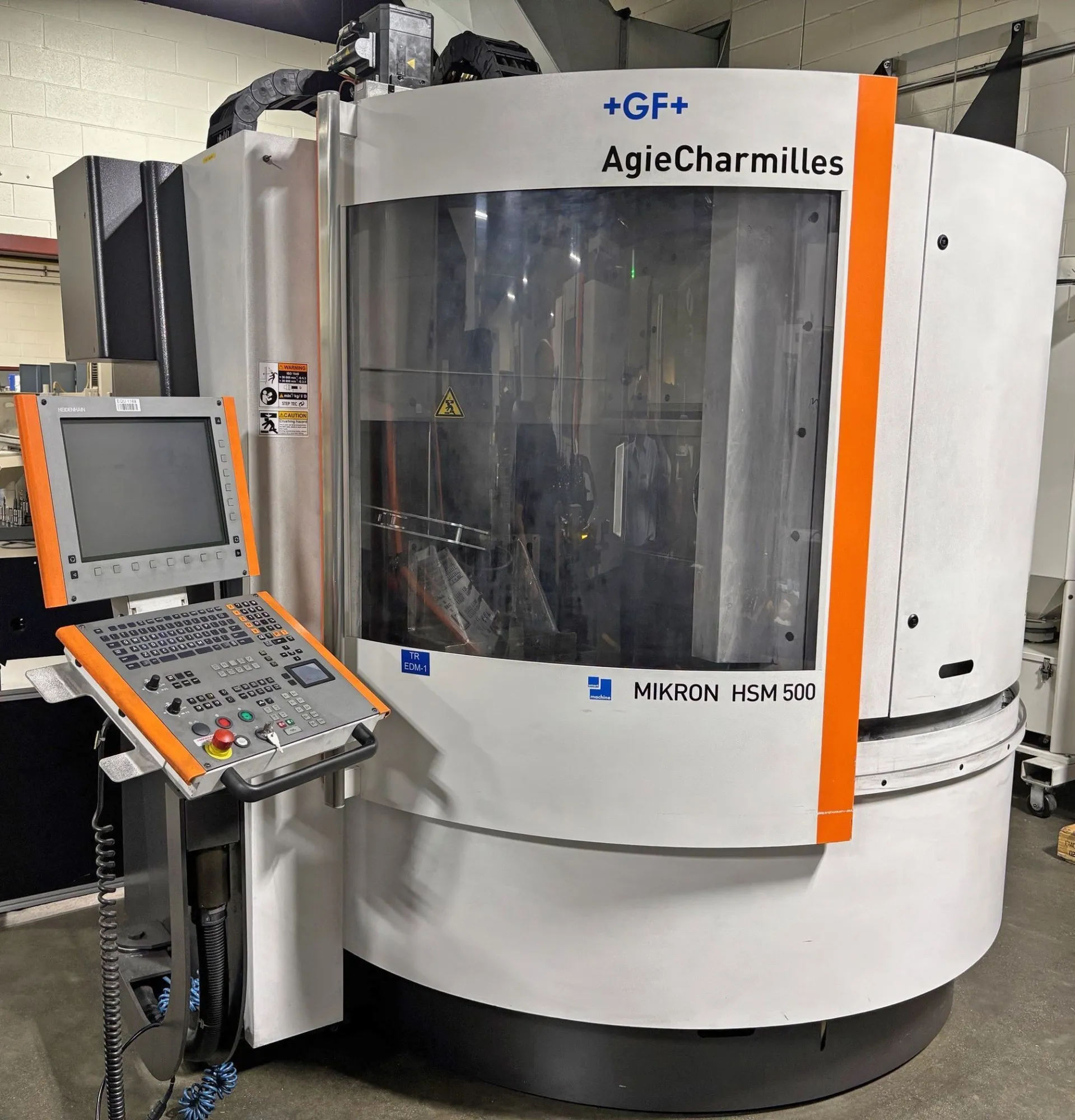

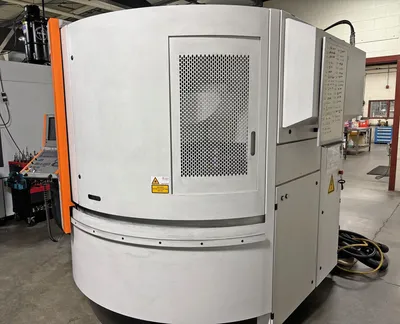

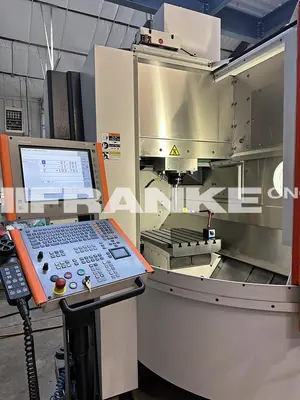

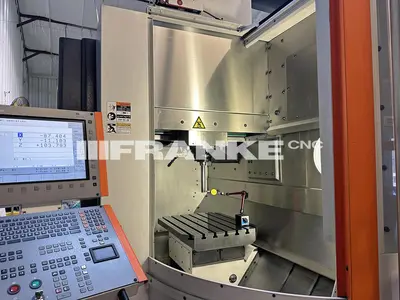

USED 2010 UNITED MACHINING MIKRON MILL HSM 500
Overview
Machine was manufactured at +GF+ in Nidau, Switzerland 3/2010
First installed new in the USA 5/2010
**This machine is set up for both graphite and hard milling**
EQUIPPED WITH
STEP TEC Swiss made spindle 100-30,000 rpm, HSK-E40 taper

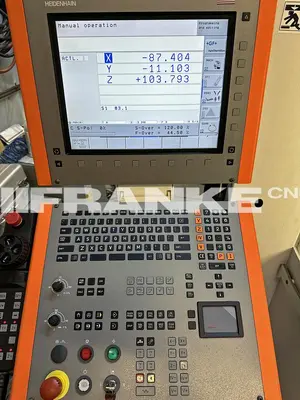

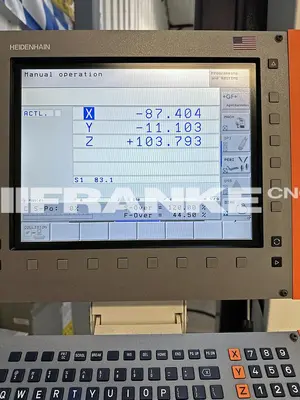

HEIDENHAIN iTNC 530 CNC control
Electronic movable handwheel for control
Interface Ethernet
25 GB Harddisk capacity

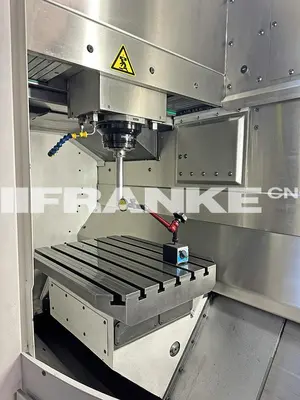

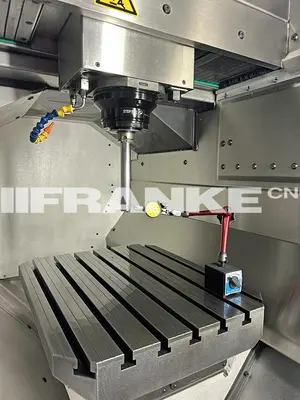

T-slot work surface 550 x 450 mm
Machine enclosure with polycarbon
Work area light
Safety switches
Vector drive spindle (high torque)
Rigid tapping
HEIDENHAIN optical linear scales with compressed air protection
Liquid cooled spindle, drives, electrical cabinet
3 user-definable M codes
ITC (Intelligent Thermal Control)
APS (Advanced Process System)
Laser tool measuring
M&H measuring touch probe
Chip sump
Tool blow-off unit
Oil mist minimum lubrication spray unit
Preparation for graphite dust removal

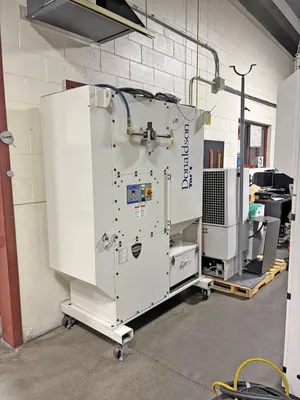

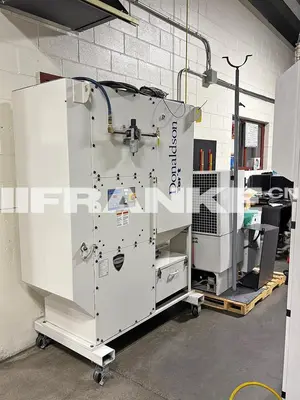

Donaldson Torit dust collection unit
External spindle chiller
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted in United States Dollars.
Price quoted is FOB Purchase Point (Jackson, WI)
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specs
Work Area Longitudinal, X: 500 mm (19.7")
Work Area Lateral, Y: 450 mm (17.7")
Work Area Vertical, Z: 350 mm (13.8")
Working Spindle RPM: 100-30,000 RPM
Working Spindle Taper: HSK-E40
Working Spindle Power: 12 kW (16.09 hp)
Working Spindle Torque: 8.8 Nm (6.5 lb/ft)
Feed rate/Rapid Traverse (X,Y): 20/40 m/min (787/1,575 IPM)
Feed rate/Rapid Traverse (Z): 40/40 m/min (1,575 IPM)
Dynamic: 1.7 G
Work Table Clamping Surface: 550 mm x 450 mm (21.7" x 17.7")
Work Table Max Table Load: 200 kg (441 lbs)
Height of table top from floor: 980 mm (38.6")
T-slot on table (nominal size x pitch x quantity): 14 x 63 x 7 mm
Optional Extended Tool Changer: 36 positions (standard on this machine is 18 stations)
Machine Dimensions (W X D X H): 1750 mm x 2250 mm x 2100 mm (69" x 89" x 83")
Machine Weight: 5500 kg (12,125 lb)
