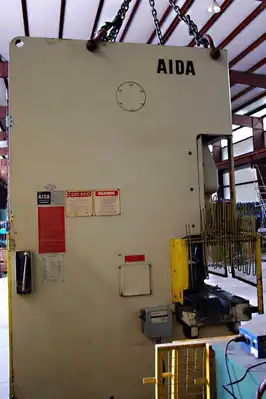

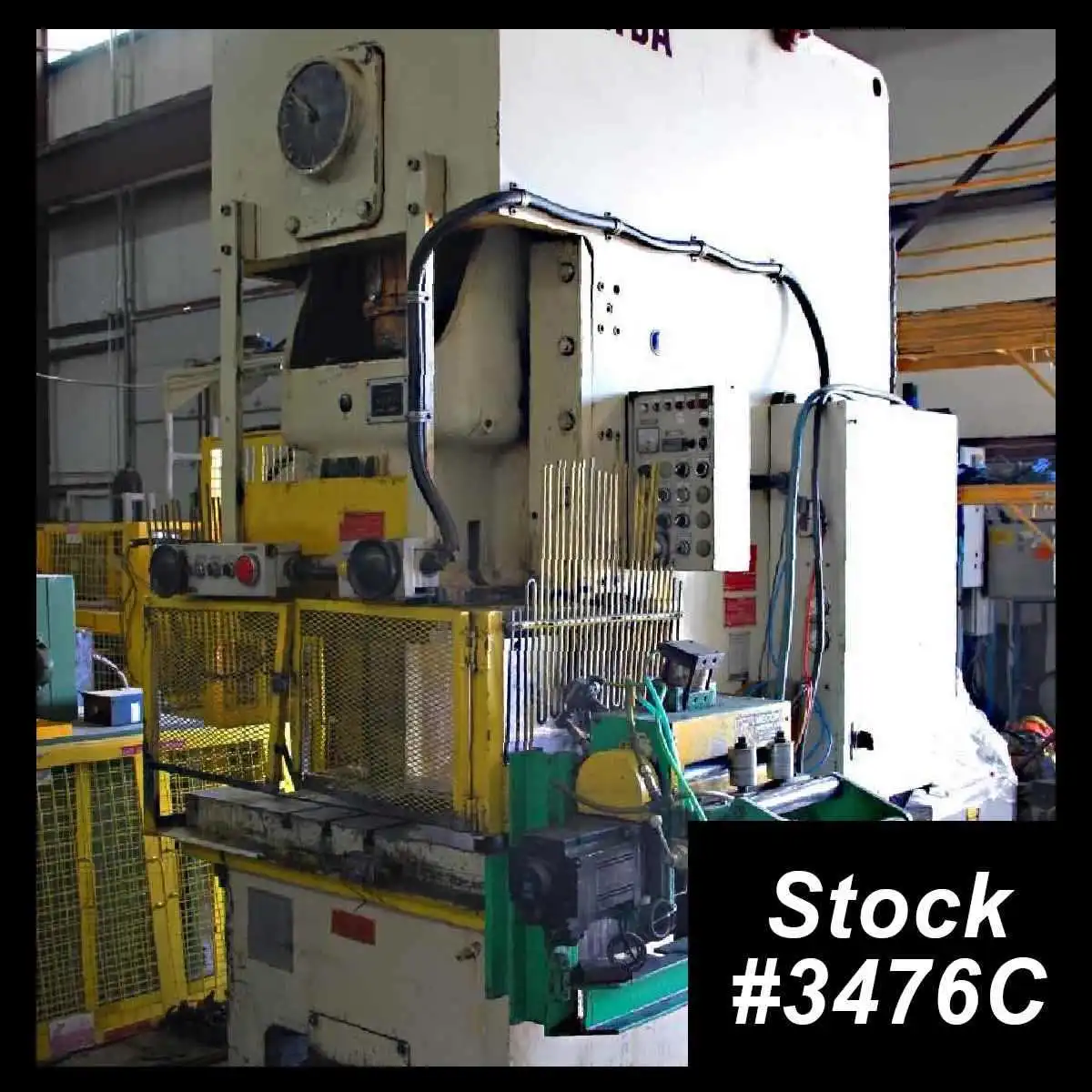

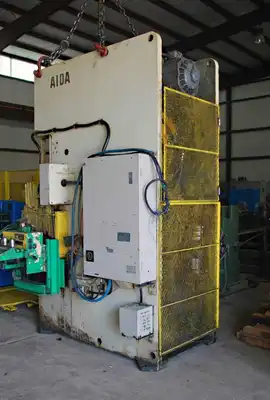

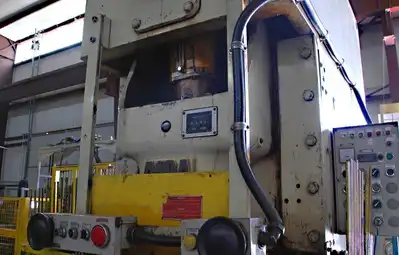

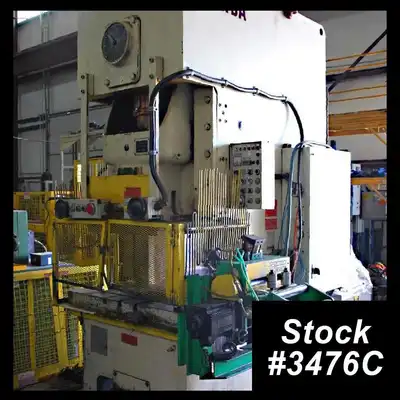

USED AIDA NC1-15(1)

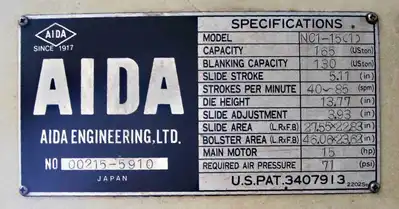

SPECIFICATIONS:
Capacity: 165 Ton
Blanking Capacity: 130 Ton
Slide Stroke: 5.11" (130 mm)
Strokes Per Minute: 40 – 85
Die Height: 13.77" (350 mm)
Slide Adjustment: 3.93" (100 mm)
Slide Area: 27.55" (700 mm) (Left – Right), 22.83" (580 mm) (Front – Back)

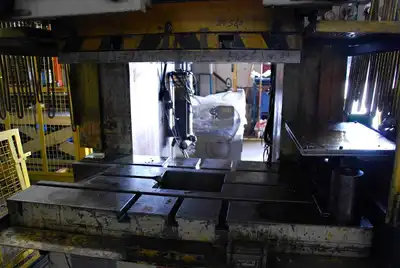

Bolster Area: 46.06" (1170 mm) (Left – Right), 23.62" (600 mm) (Front – Back)
EQUIPPED WITH:

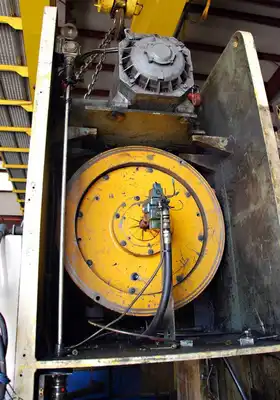

15 HP Motor: 460 / 3 / 60

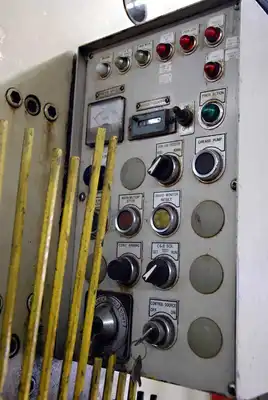

Push Button Panel
Servo Feeder
OVERALL DIMENSIONS: 7′ x 6.5′ x 10′
APPROXIMATE WEIGHT: 18,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
