USED 2007 HYUNDAI KIA SKT21LMS
USD $33,500.00
Overview
Description

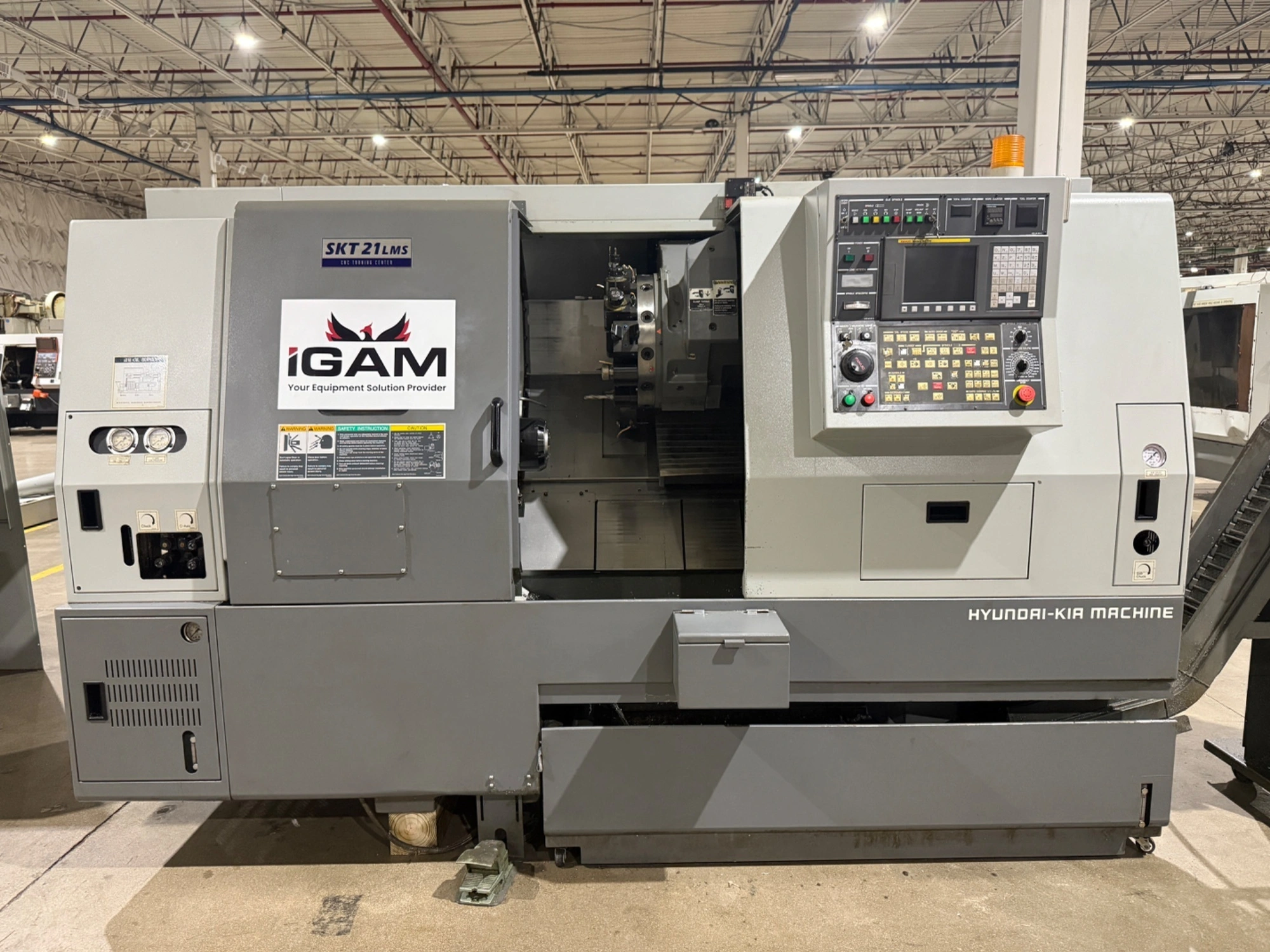

2007 HYUNDAI KIA SKT21LMS CNC Lathe

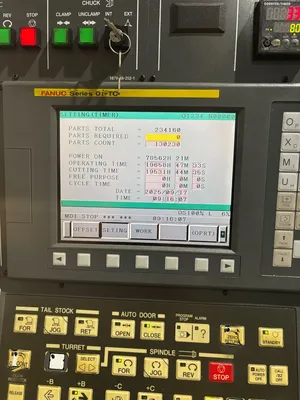

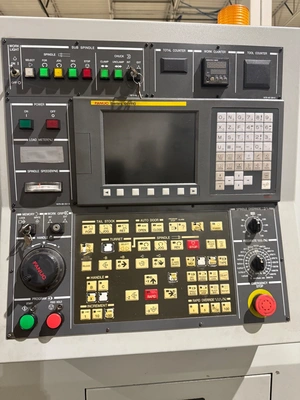

Fanuc Oi-TC Control

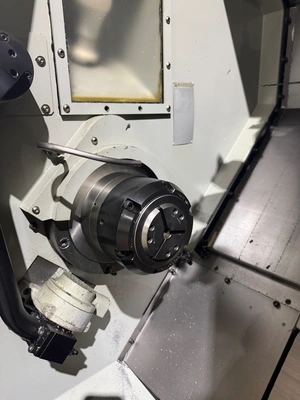

Main Spindle Micro Centric CB65-MD Collet Chuck
Main Spindle C axis

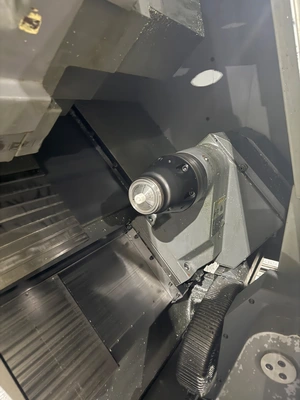

Sub Spindle Collet Chuck
RS-232
Tool Eye

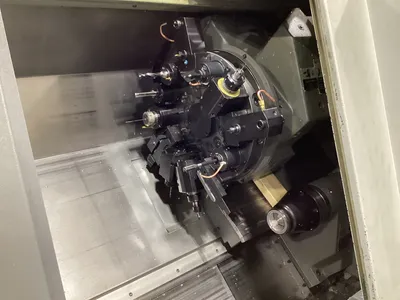

Live Tooling
Live Tooling Holders

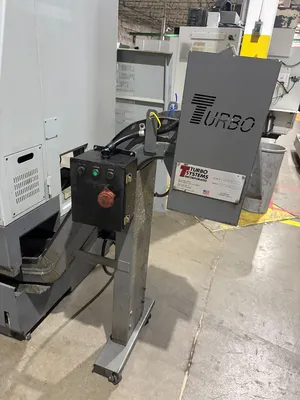

Sub Spindle Parts Catcher
Chip Conveyor, coolant tank with pump

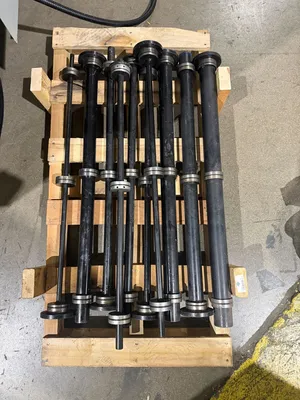

Various Diameter Spindle Liners
Machine Voltage: 208
Machine KVA: 30
Specifications
| CNC Control | Fanuc Oi-TC | Fanuc Oi-TC |
|---|---|---|
| # of Axes | 4 | 4 |
| Swing | 21.6" | 548.64 mm |
| Turning Dia | 10" | 254 mm |
| Center Distance | 20.8" | 528.32 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| X-axis Travel | 8.3" | 210.82 mm |
| Z-axis Travel | 21.65" | 549.91 mm |
| C Axis Indexing | Yes | Yes |
| B-axis Travel | 29.5 | 29.5 |
| Rapid Traverse Rate (X/Y/Z) | 1417 IPM | 1417 IPM |
| Spindle Nose | A2-8 | A2-8 |
| Spindle Speed (rpm) | 4,000 RPM | 4,000 RPM |
| Spindle Motor (hp) | 20 hp | 14.9 kW |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Live Tooling Speed (rpm) | 4,000 RPM | 4,000 RPM |
| Live Tooling Motor (hp) | 5 hp | 3.7 kW |
| Sub Spindle | Yes | Yes |
| Sub Spindle Speed (rpm) | 5,000 RPM | 5,000 RPM |
| Sub Spindle Motor (hp) | 5 hp | 3.7 kW |
| Turret Capacity | 12 | 12 |
| Machine Dimensions | 115" x 65" x 74" | 115" x 65" x 74" |
| Machine Weight | 9,500 lb | 4,309.1 kg |
| Control | CNC (Fanuc Oi-TC) | CNC (Fanuc Oi-TC) |
| Dimensions | 115" x 65" x 74" | 115" x 65" x 74" |
| Weight | 9500 lbs | 9500 lbs |
