USED 2009 HYUNDAI KIA SKT 15 LMS
USD $29,500.00
Overview
Description

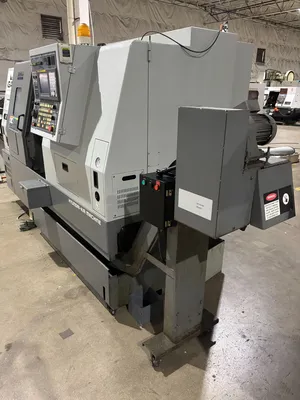

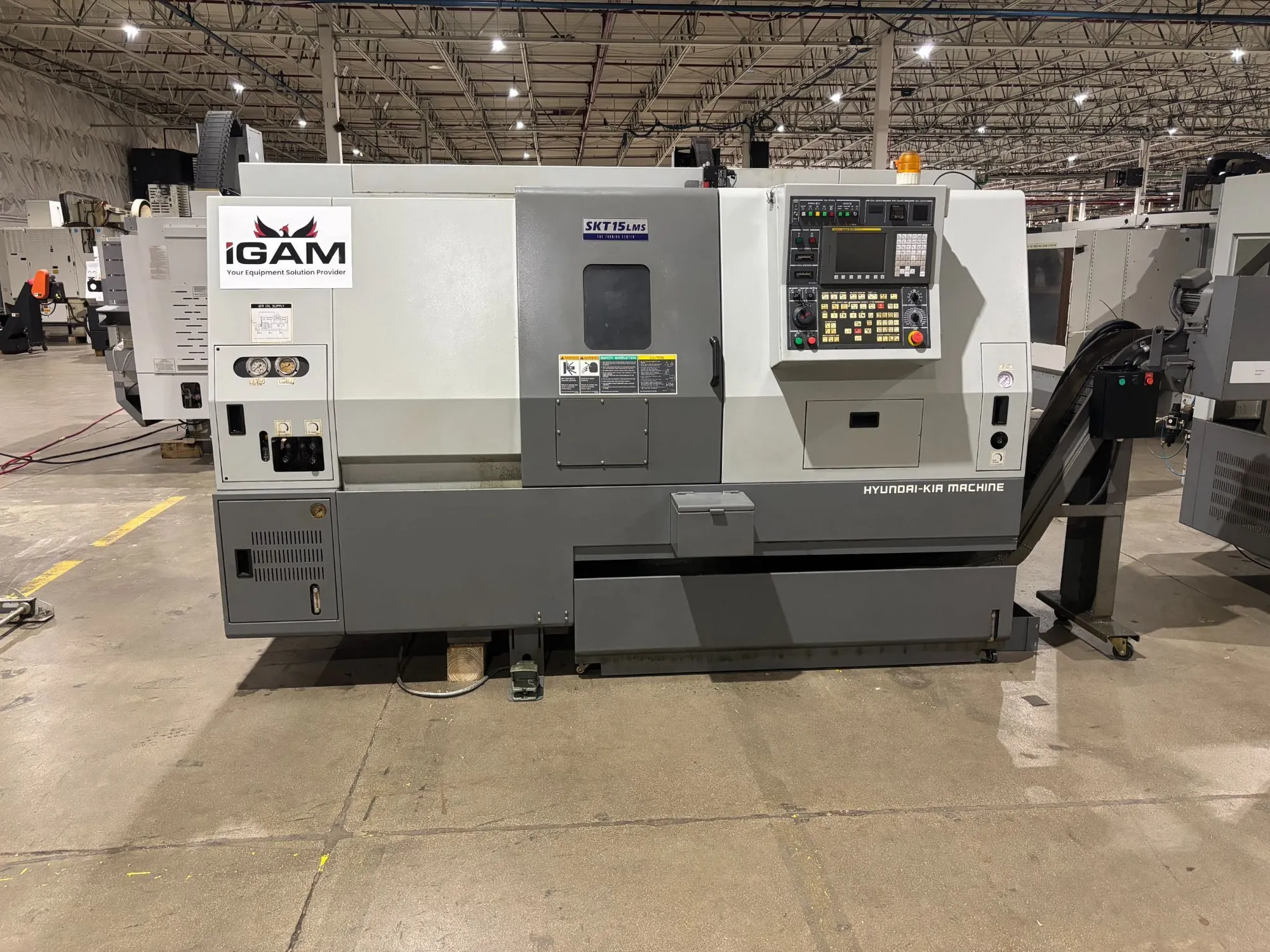

2009 HYUNDAI KIA SKT15LMS CNC Lathe

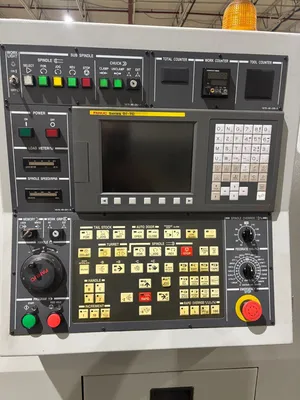

Fanuc Oi-TC Control
Main Spindle Micro Centric CB42-ND Collet Chuck
Main Spindle C axis
Sub Spindle ATS Work Holding Collet Chuck
RS-232
Tool Eye

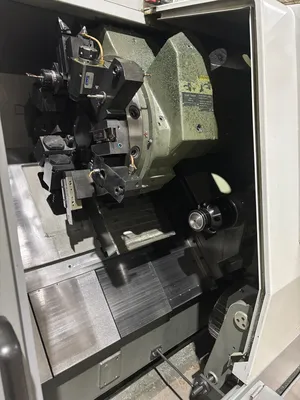

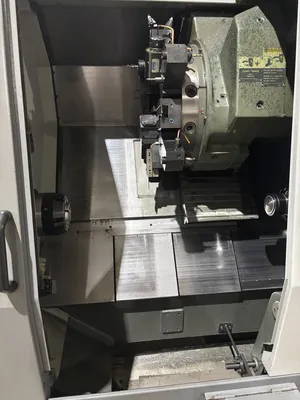

Live Tooling
Live Tooling Holders
Sub Spindle Parts Catcher
Chip Conveyor, coolant tank with pump

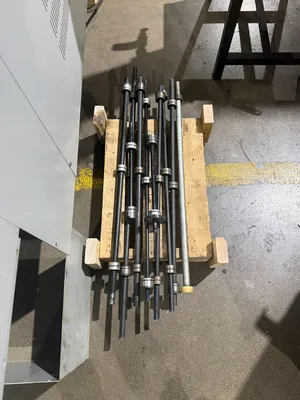

Various Diameter Spindle Liners
Machine Voltage: 208
Machine KVA: 30
Specifications
| CNC Control | Fanuc Oi-TC | Fanuc Oi-TC |
|---|---|---|
| # of Axes | 4 | 4 |
| Swing | 21.6" | 548.64 mm |
| Turning Dia | 10" | 254 mm |
| Center Distance | 20.8" | 528.32 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.7" | 43.18 mm |
| X-axis Travel | 8.3" | 210.82 mm |
| Y-axis Travel | 24.8" | 629.92 mm |
| Z-axis Travel | 21.65" | 549.91 mm |
| C Axis Indexing | Yes | Yes |
| B-axis Travel | 29.5 | 29.5 |
| Rapid Traverse Rate (X/Y/Z) | 1417 | 1417 |
| Spindle Nose | A2-5 | A2-5 |
| Spindle Speed (rpm) | 6,000 RPM | 6,000 RPM |
| Spindle Motor (hp) | 15 hp | 11.2 kW |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Live Tooling Speed (rpm) | 4,000 RPM | 4,000 RPM |
| Live Tooling Motor (hp) | 5 hp | 3.7 kW |
| Sub Spindle | Yes | Yes |
| Sub Spindle Speed (rpm) | 5,000 RPM | 5,000 RPM |
| Sub Spindle Motor (hp) | 5 hp | 3.7 kW |
| Turret Capacity | 12 | 12 |
| Machine Weight | 9,500 lb | 4,309.1 kg |
| Dimensions | 120" x 65" | 120" x 65" |
| Weight | 9500.0 lbs. | 9500.0 lbs. |
