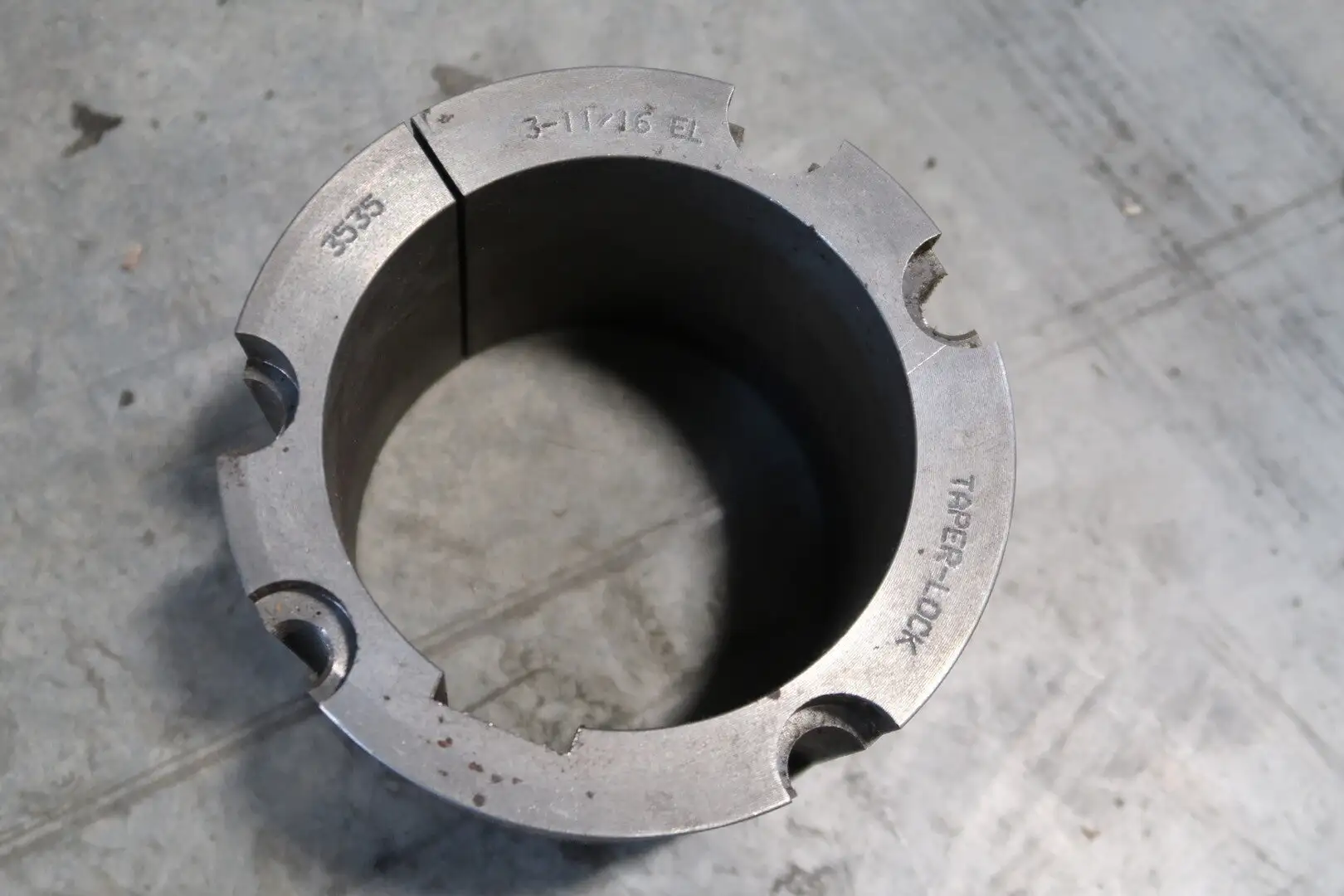

NEW DODGE 3535 X 3-11/16 KW

Type: Taper Lock
Bore Diameter: 3-11/16 "
Bushing Size: 3535
Bore Type: Finished w/ Keyway
Bore Diameter: 3.9375 in.
Keyway Size: 1 x 1/2 in.
Outside Diameter: 5 in.
Length Through Bore: 3-1/2 in.
Material: Sintered Steel
Torque Capacity: 44800 in.
Screw Torque: 1000 in.
Maximum Hub Outside Diameter: 6-1/2 (Steel), 7 (Class 30 Gray Iron) in,
Bolt Circle Diameter: 4.83 in.
Number of Bolt Holes: 3
Screw Thread Size: 1/2 in.
Screw Length: 1-1/2 in.
