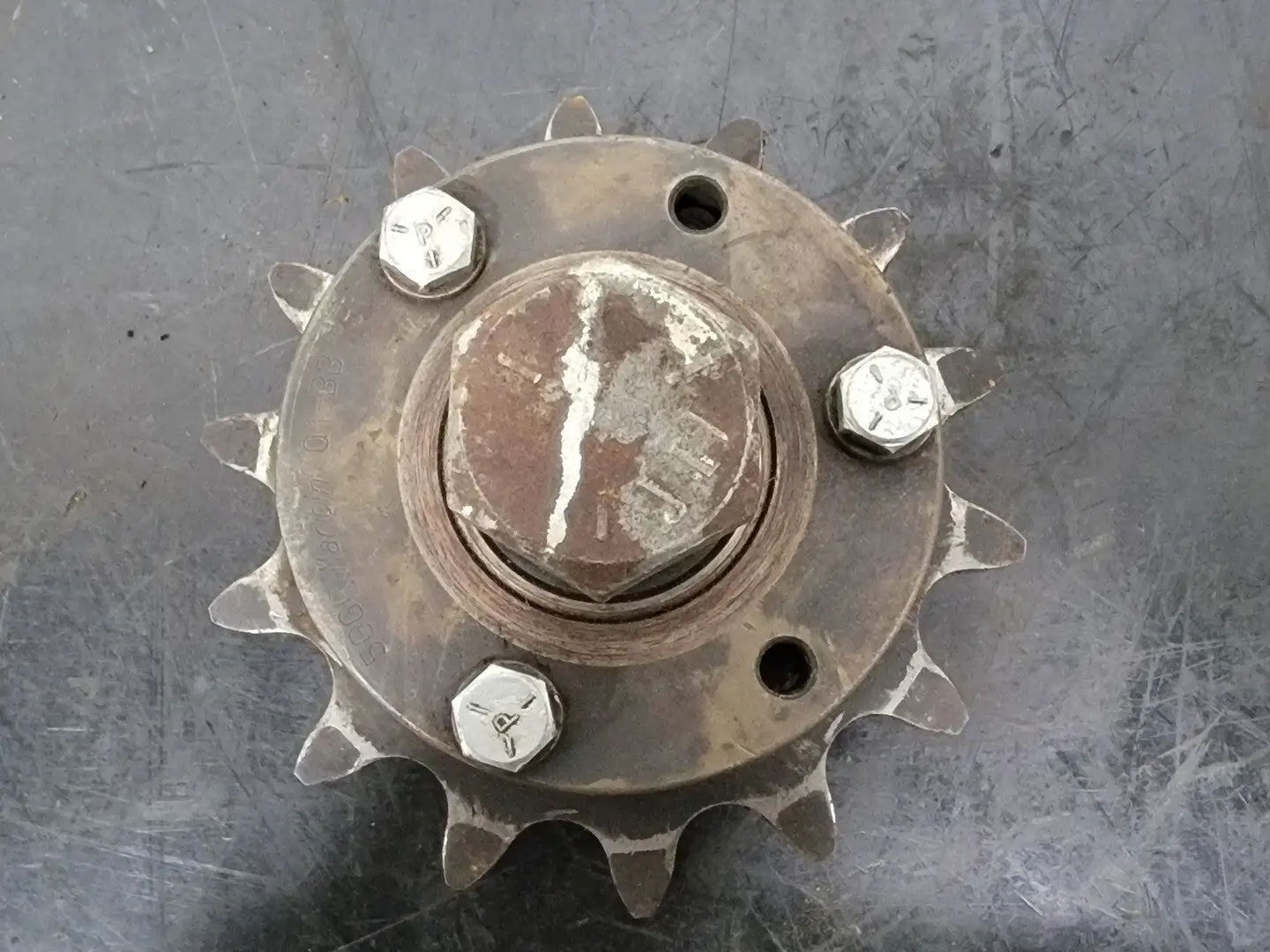

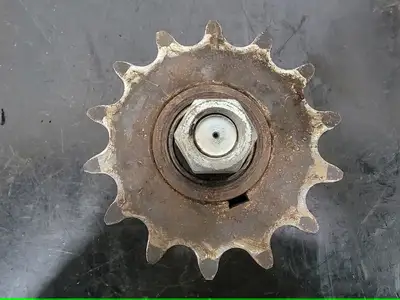

USED MARTIN Q1-BB

Chain Size: 100
No. of Strands: 1
No. of Teeth: 14
Bore Type: Split Taper
Bushing Size: Q1
Shaft Diameter: 1 in.
Flange Outside Diameter: 4.125 in.
Flange Thickness: 0531 in.
Length Through Bore: 2.5 in
Overall Length: 4-39/64 in.
Material: Ductile Iron
Type of Bearing: Ball
Radial Load Capacity: 1116 @ 1260 rpm lb, 1186 @ 1000 rpm lb, 1494 @ 500 rpm lb, 2555 @ 100 rpm lb, 975 @ 1800 rpm lb
Number of Bolt Holes: 4
Sprocket:- 100Q14
Material: Steel
Pitch Diameter: 5.618 in.
Sprocket Style: B
