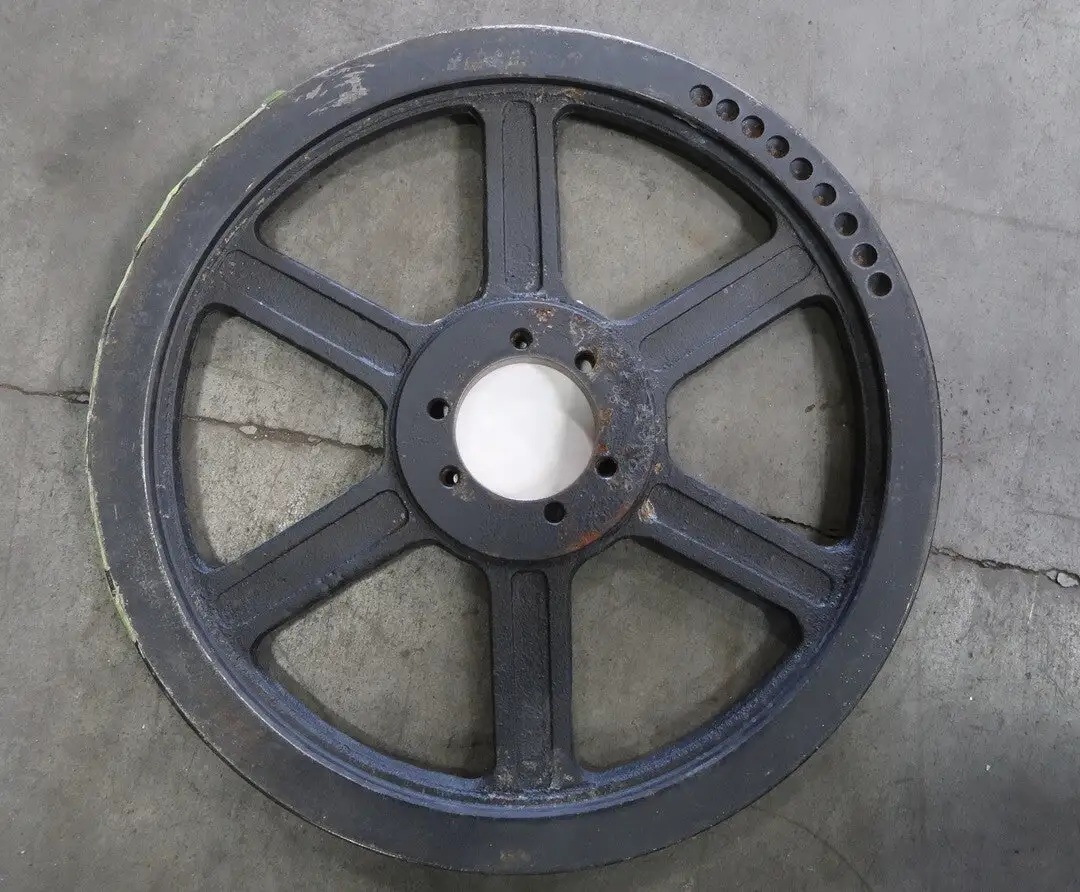

NEW TB WOOD'S 1241B

# of Grooves: 1
Series: SDS
Outside Diameter (Imperial): 12.75 in
Belt Section Size: A, B
Bore Type: QD Bushed
Bore Diameter: Bushing Required
Keyway Size: 1/2 x 1/16 (1-7/8 to 1-15/16 Bore) in, 1/2 x 1/8 (1-13/16 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 1/8 (1-3/4 Bore) in, 3/8 x 3/16 (1-3/8 to 1-11/16 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in
Material: Cast Iron
Length Through Bore: 1.3125 in.
Face Width: 1.0000 in.
Bushing Bore Range: 1/2 to 2 in.
Pitch Diameter: 12 (A) in., 12.4 (B) in.
Overall Width: 1-1/2 in.
Pulley Construction: Spoked
