NEW ANDERSON AMERICA MASS 5

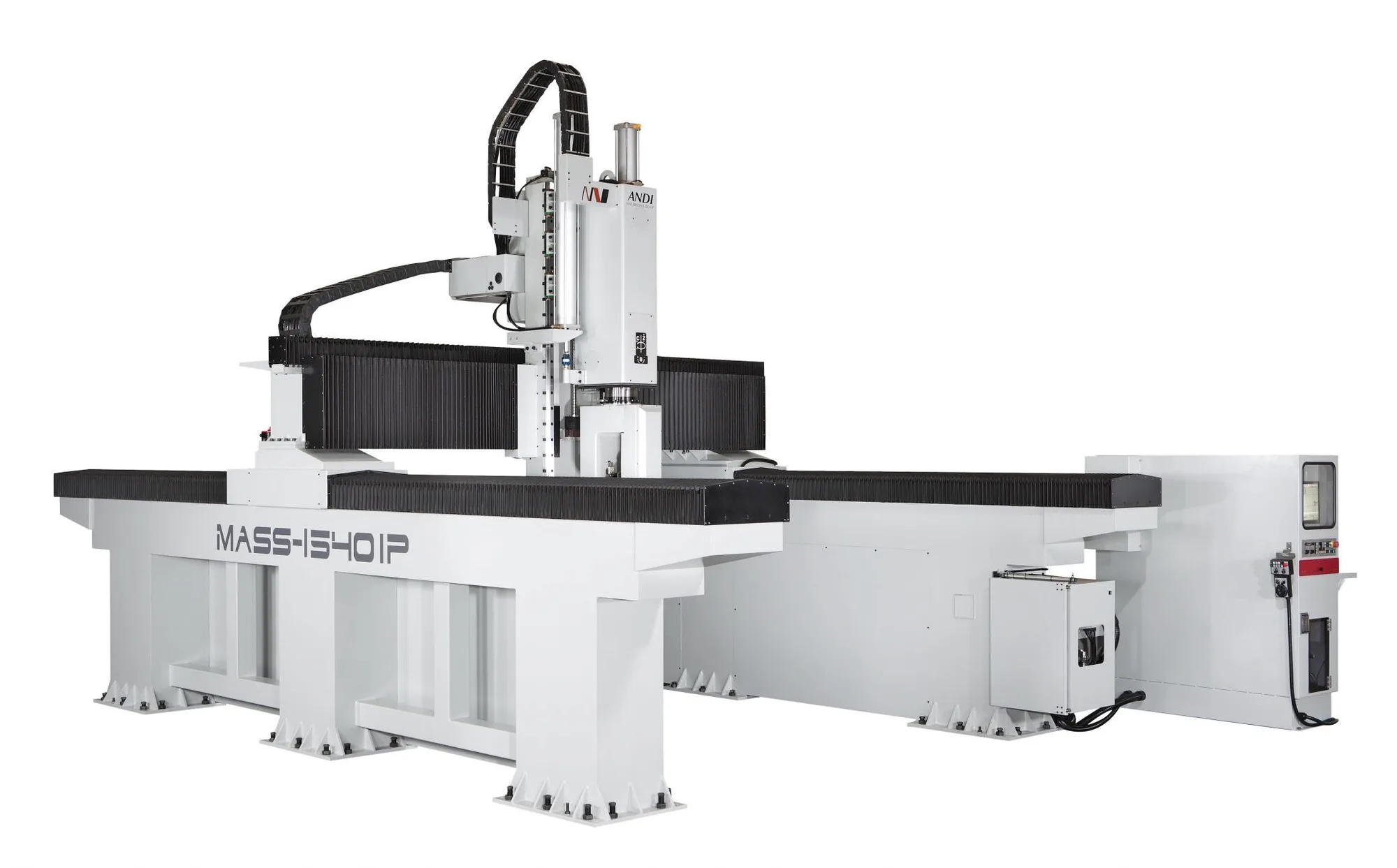

The Anderson MASS 5 Heavy Duty Open Gantry series 5-axis CNC machining center set a new level of accuracy and machining performance for large scale open gantry machining centers. It is an ideal choice for large format machining of aluminum and composite materials. The Anderson Open Gantry design allows for maximum work envelope flexibility that can handle very large parts.

Modular Design

Machine frame sizes are available in a number of large format sizes. The open frame allows for easy access and is configured as a full open bridge design or with an optional steel table or grid vacuum table.

The solid base and substructure remain smooth and rigid while all 5-axis are in full 5-axis machining mode. The highly rigid C and B gearbox are designed for smooth motion and high tensional stability throughout the range of motion. The large open format and high Z-axis creates a large machining envelop for machining surfaces, pockets, holes and other key machining surfaces to high level of tolerance on all sides. World class five CNC controls are available on the Anderson MASS 5 HD, as well as optional high precision glass reference scales. Control access from both Ethernet that includes Internet remote technical support.

Work piece holding flexibility is provided by optional clamping, grid or manifold vacuum systems. The MASS 5 HD has an industry standard G-code platform that allows easy interface with all major CAD/CAM software packages. Additional options include work piece dimension probing, both single and multiple zone capabilities and custom configurations upon request.

Basic configuration MASS 5
Table Style         open,
                        flat steel, T slot
Zones                 1 zone
Table size (metric) width : 3,000mm to 6,000mm
                        length : 6,000mm to 16,000mm
Table Height         individual
Standard Z (stroke) #1 1,000mm to 3,000mm
Standard Z (stroke) #2
B and C-axis         B : ± 100°
                        C : ± 200°
Control                 SIEMENS 840D
                        FANUC 31i series
Router spindle         15 HP(HSK 63F, 22000rpm)
                        20HP, 25HP (HSK 63E, 18000 rpm)
Type ATC         Ranrob : 16, 20, 32
Barriers         n/a
Included         Vac. Prep Kit
Pump Size         BECKER 250cbm
Safety fence         enclosure
X Drive System         rack/optional linear
Y Drive System         rack/optional linear
v_drive_sys
Z Drive System         Ball Screw
rapids/cutting C, B X;Y;Z=36/36/12m/m
rapids/cutting C, B B&C=60°/sec 24m/m
                        n/a
Tool Holders         n/a
Touch-Off Device n/a
Positioning Tolerance
 (No Scales X, Y, Z) ± 0.05mm/M
Repeatabilty Tolerance
 (No Scales X, Y, Z) ± 0.03mm/M
Positioning Tolerance
 (No Scales C, B) ± 18 arcseconds
Positioning Tolerance
 (Scales X, Y, Z) ± 0.03mm/M
Repeatabilty Tolerance
 (Scales X, Y, Z) ± 0.02mm/M
Positioning Tolerance
 (Scales C, B)         ± 30 arcseconds
laser_calibration
HSSB RISC Look Ahead optional
vacuum_pump_10hp
vacuum_pump_2_10hp
Vacuum Pump 25 HP optional
Manifold for Vacuum optional
