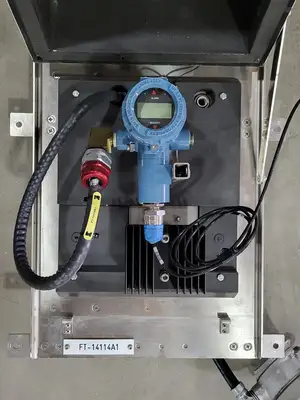

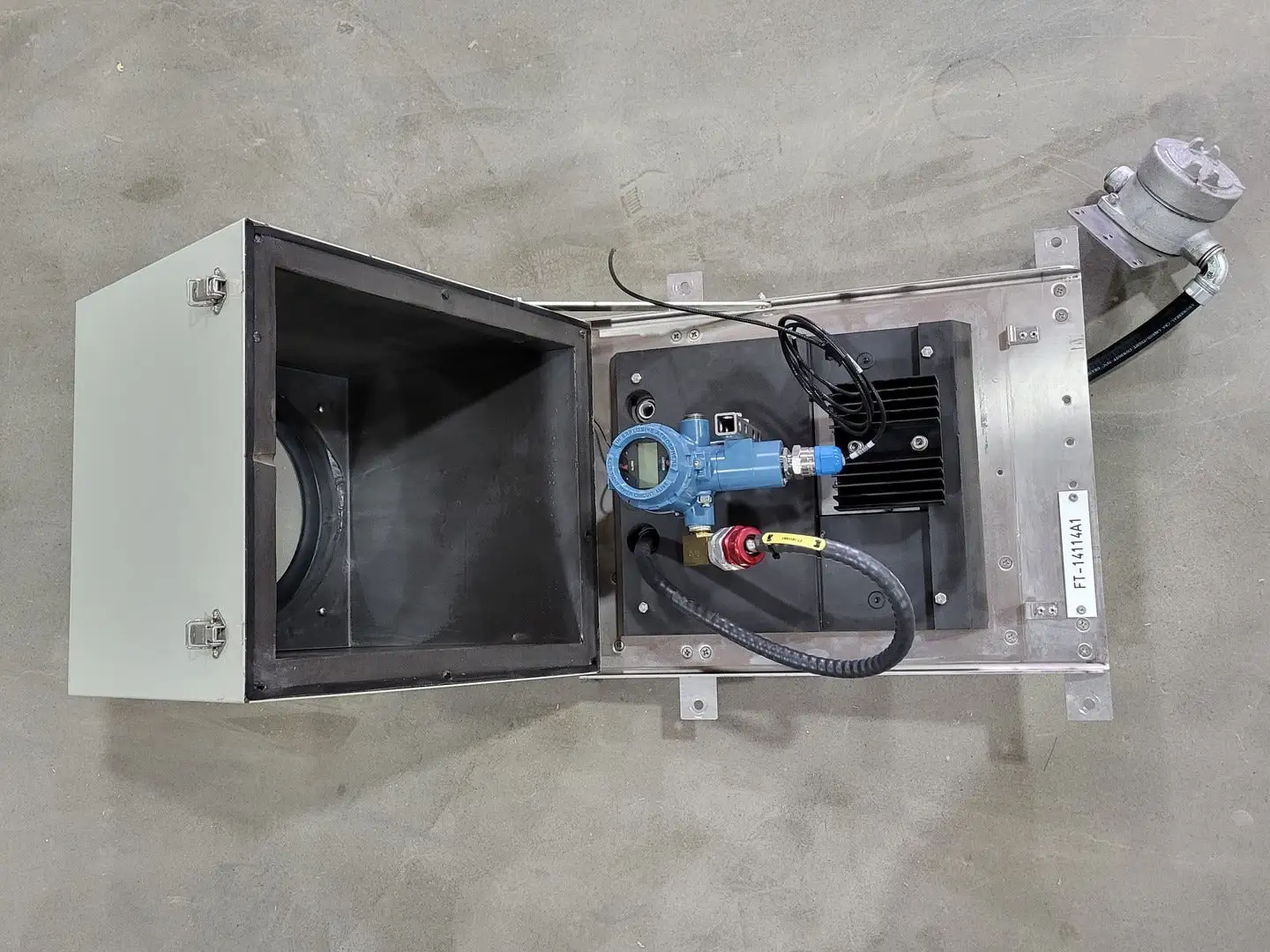

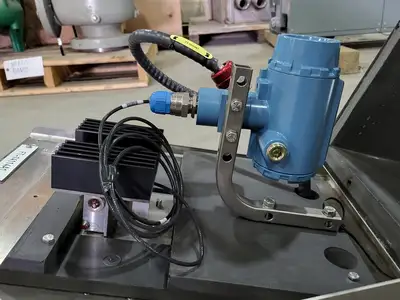

USED 2014 ROSEMOUNT 8800DF100SA1E1D1E6M5R10Q4Q8Q25Q71Q79
Overview
Specifications
Vortex Flow Meter
Meter Style: Standard body style for use with flanged, welded, and threaded process connections
Line Size: 10"
Wetted Materials: 316 wrought stainless and CF-3M cast stainless; Material of construction is 316/316L
Process Connection Style & Pressure Rating: ASME B16.5 RF Class 150
Sensor Process Temperature Range: -330 to +800 deg. F (-200 to +427 deg. C)
Housing Material & Conduit Entries: Aluminum housing, two 1/2-14 NPT conduit entries
Outputs: 4-20 mA digital electronics (HART protocol)
Calibration: Flow calibration
Hazardous Area Approvals: US/Canadian Approvals Explosion-proof and Dust Ignition-proof
Display Type: LCD indicator
Remote Electronics: With 10 ft. (3 m) cable
Supply: 10.8 - 30 VDC
Enclosure Type: 4X
Protection Rating: IP66
Contact Heater
Brand: Multi Instruments
Type Number: EX.MI.03C.S
Power Supply: 100 - 300 VAC / 42 - 60 Hz / 48 W max.
