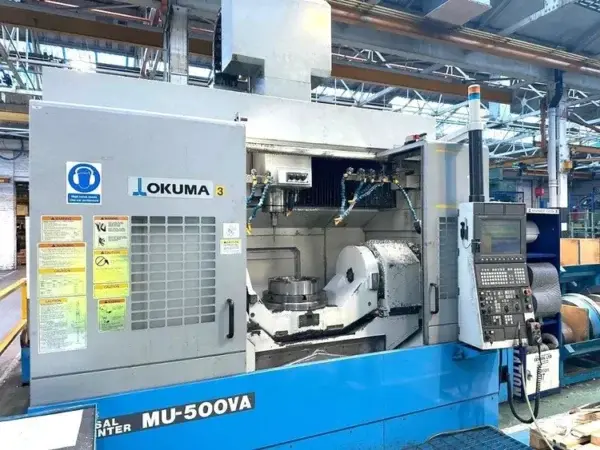

OKUMA MU-500VA 5-Axis – 2007

OKUMA MU-500VA

5-Axis CNC Mill

Travels

X-axis (saddle left/right) – 49.21”

Y-axis (pallet front/back) – 25.98”

Z-axis (spindle up/down) – 21.25”

A-axis – +20~-110 deg.

C-axis – 360 deg.

Table surface to spindle nose – 5 – 26.26”

Table size – ø19.68”

Max work size – ø 28.7”730 x h19.68”

Floor to table top – 1073mm

Max load capacity – 500kg

Spindle speed – 15,000rpm

Turning specification – C-axis table 1000rpm

No. of spindle ranges – Infinitely variable

Tapered bore – 7/24 taper No.40

Rapid traverse – X-Y: 40m/min, Z:32m/min

Rapid traverse (A-C) – 18,000 deg/min

Cutting feed rate – X-Y-Z: 32m/min

Motors Spindle (10min/cont) – 11/7.5kW

ATC Tool shank type – MAS BT40 Big plus

Retention knob type – MAS 2

Tool capacity – 32

OKUMA OSP P200M-H CNC CONTROL

20″ ROTARY PLATEN

4TH AND 5TH AXIS BUILT IN TRUNION

32 POSITION AUTOMATIC TOOL CHANGER

COOLANT THRU SPINDLE

TOOL LENGTH MEASURING
