| Swing | 20" | 508 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 9.6" | 243.84 mm |

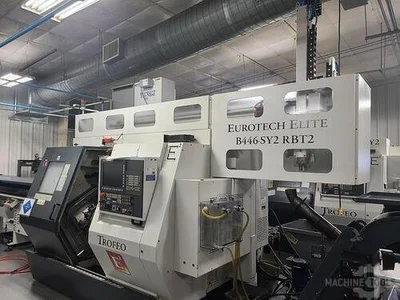

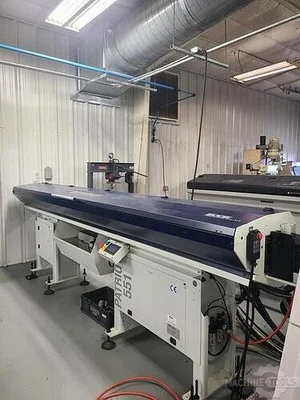

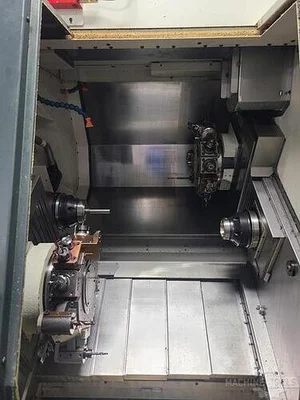

2.56” X 37.5” CNC Lathe with Fanuc 31iB Control, Tri - Mist 850 G2 Mist Collector, 12’ Edge Patriot Magazine Barfeeder, LNS Magnetic Chip Conveyor, 1000 PSI HP Dual Pump Coolant System Coolant Thru Sub-Spindle, Royal QG-65 Main Spindle Collet Chuck, Royal QG-42 Sub-Spindle Collet Chuck, 200mm Ejector Option and Fargo DA 51XN1/FE TransformerGENERAL SPECIFICATIONS Bar Capacity: 2.56”Chuck Diameter: 8”Distance Between Centers: 37.5”Swing Over Diameter: 20”Main Spindle Speed: 4,000 RPMMain Spindle Nose: 6”Main Spindle Bore: 3.15”Main Spindle Chuck Diameter: 10”Main Spindle Motor: 35HPMain Spindle C - Axis Min. Programmable Values: 0.001°Sub - Spindle Speed: 5,000 RPMSub - Spindle Nose: 5”Sub - Spindle Bore: 2.17”Sub - Spindle Chuck Diameter: 6/8”Sub - Spindle Motor: 15 HPSub - Spindle C - Axis Min. Programmable Values: 0.001°Sub - Spindle Offset Stroke: 4.72”B - Axis Stroke (Rapid Traverse): 26.35 - 1181 IPMNumber of Turrets: 3Number of Stations: 12Number of Tools: 192 Turret Indexing: 15 SecondsNumber of Live Tool Stations: 36Number of Live Tools: 72Live Tool Speed: 4,000 RPMMotor Powered: 5 GearedRapid Traverse (X1 / X2 / X3): 708 IPMRapid Traverse (Z1 / Z2 / Z3): 1181 IPMRapid Traverse (Y1 / Y2 / Y3): 3.54 (-1.57 / +2.32) - 354 IPMINCLUDES: Fanuc 31iB Control, Tri - Mist 850 G2 Mist Collector, 12’ Edge Patriot Magazine Barfeeder, LNS Magnetic Chip Conveyor, 1000 PSI HP Dual Pump Coolant System Coolant Thru Sub-Spindle, Royal QG-65 Main Spindle Collet Chuck, Royal QG-42 Sub-Spindle Collet Chuck, 200mm Ejector Option and Fargo DA 51XN1/FE Transformer
