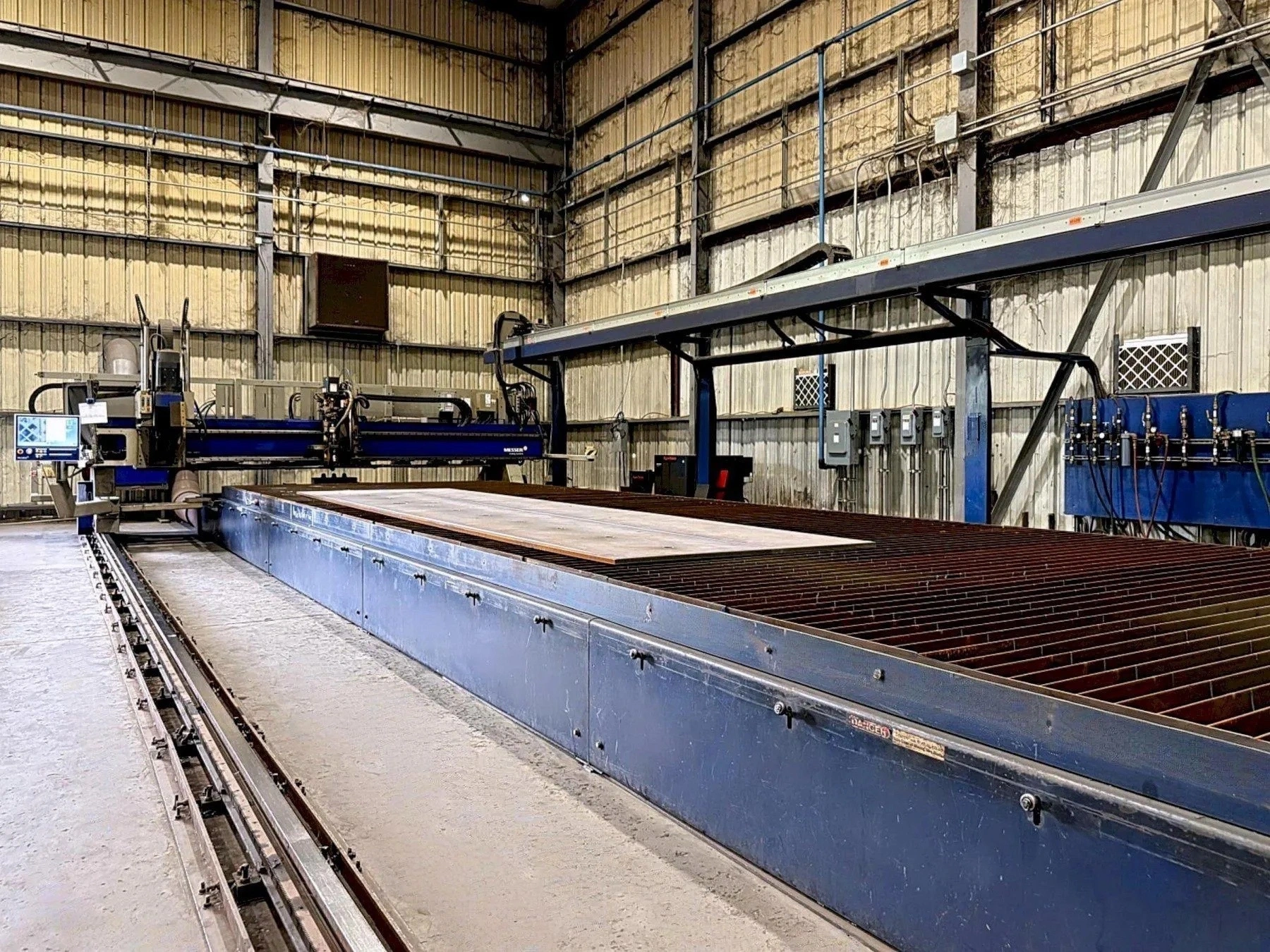

Messer MPC 2000 10' x 42' Plasma/Oxy Cutting System in exceptional condition.
| Cut-Width | 12' | 3,657.6 mm |
| Cut-Length | 40' | 12,192 mm |
| Plasma Power | 400 a | 400 A |
| # Plasma Torches | 4 | 4 |
| Rapid Traverse Speed | 1200 ipm |
Make : MESSER
Model: MPC 2000
Year: 2018
Type: Plasma Cutters, CNC
Control: Global Control Plus
Cutting Capacity: W 10’ x L 42’
Mach. Min Profile: 180"
Max Table Width: 112"
Mach. Rail Gauge: 132"
Min Mach. Clearance: 240"
Overall Clearance: 258"
Power Source: Hypertherm HPR400
Mild Steel Cut Capacity: 3.2”
Cut Speed (Mild Steel): 0.5” @ 170 IPM
Materials: Mild Steel, Stainless & Aluminum
Motion Accuracy: +/- .010”
Repeatability: +/- .003”
Contouring Speeds: Up To 400 IPM
Positioning Speeds: Up To 1400 IPM
Acceleration: Up To 32 IPS
Max Output Current: 400 Amps
OXY + Plasma Cutting Heads
Drilling Unit * Verifying
Global Control Plus
24” Touch Screen
Multiple Process Databases
Hyperformance Plasma HPR400
Linear Motion Ways
State-Of-The-Art AC Servo Drives
SureStop Collision Sensor
Slagger® Cutting Table
Dust Collector
TERMS:
Location Southeast USA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
