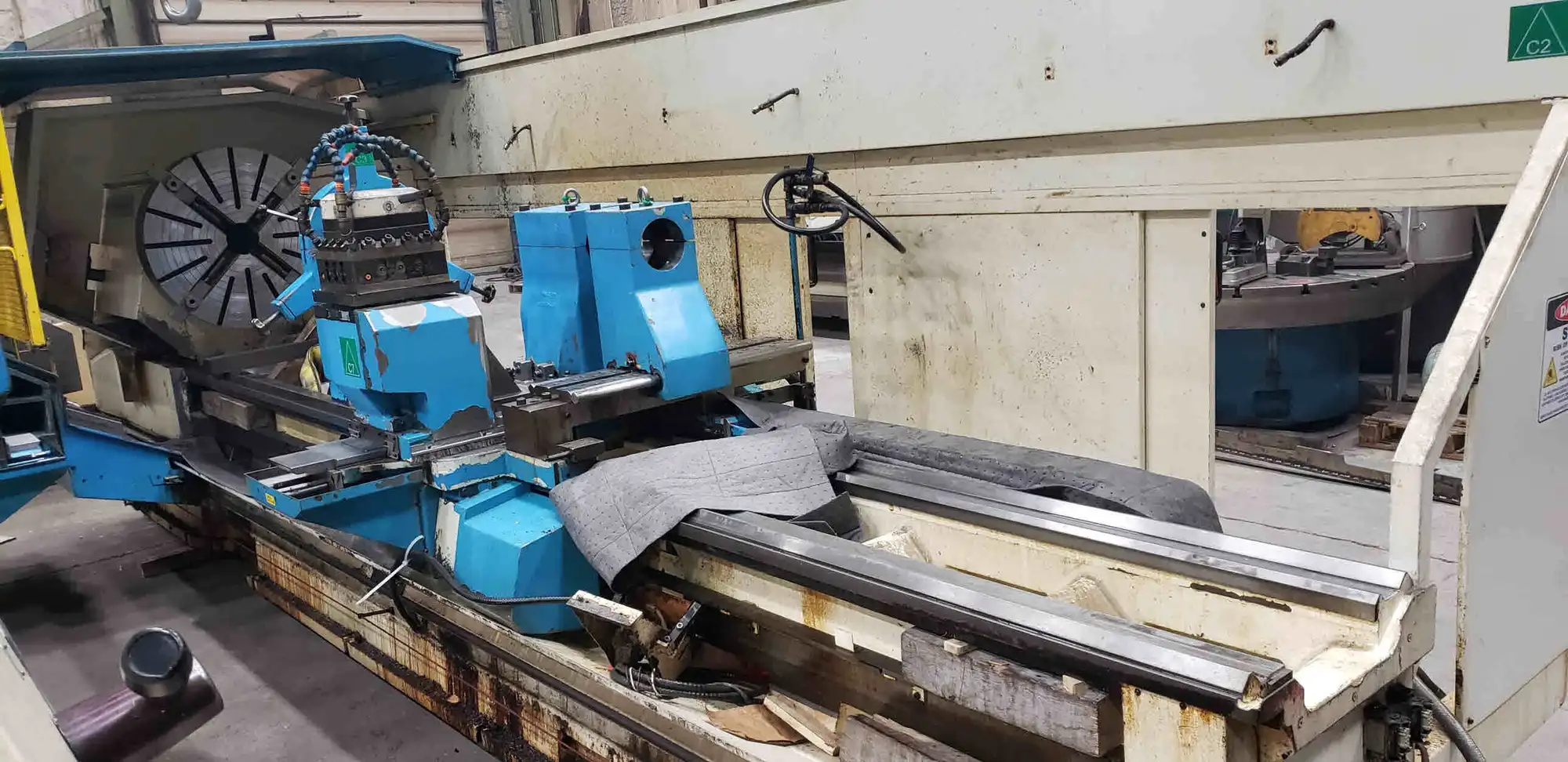

Machine is in Excellent Condition & Ready For Inspection.
| Swing | 48" | 1,219.2 mm |
| Machining Length | 168" | 4,267.2 mm |
| Chuck Size | 32" | 812.8 mm |
| Bar Capacity | 5.1" | 129.54 mm |
| Power | 37 kW | 49.6 hp |
| Max RPM | 1,120 RPM | 1,120 RPM |
| Tailstock | 'No' | 'No' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (Siemens Sinumerik 840C) | CNC (Siemens Sinumerik 840C) |
| Dimensions | 324”L x 96”W x 99”H | 324”L x 96”W x 99”H |
| Weight | 33,500 LBS | 33,500 LBS |
Specifications:
Model - DUS 1110
Year - 1997
Swing Over Bed - 48”
Over Carriage - 30”
Between Center - 168”
Chuck Diameter (4 Jaw) - 32”
Spindle Bore - 5.1”
Width Of Bed - 23”
Max Spindle Speed - 1120 RPM
Control - Siemens
Main Motor - 37 KW
Electrics - 400V/3PH/60HZ
Made In - Germany
Approximate Weight - 33,500 LBS
Approximate Overall Dimension - 324”L x 96”W x 99”H
Equipped With:

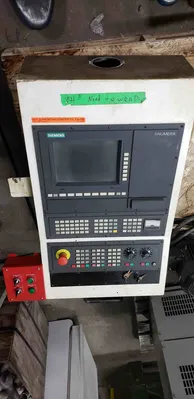

Siemens Sinumerik 840C CNC Control
Sauter Tool Turret “Head Type” W/Electric Drive
Two Bar Supports For Line Boring
32” Four Jaw Manual Chuck
Chip Conveyor

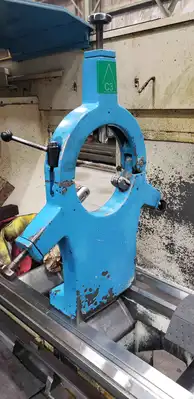

11.5” Steady Rest
Hand Pendant
Coolant System
Work Light
Foot Pedal
No Tailstock
Note: Machine Is Not Under Power & In Dry Storage Facility
