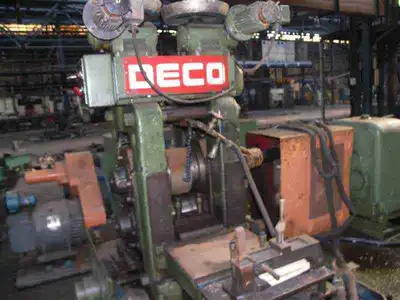

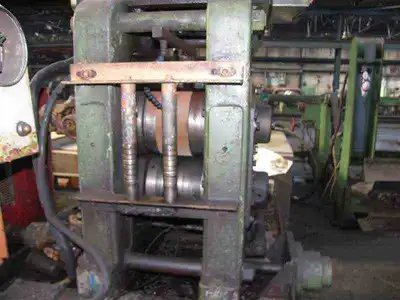

7-3/8″ x 7″ DECO MACHINERY Embossing Rolling Mill Line

SPECIFICATIONS:
Roll Diameter: 7-3/8″ (187 mm)
Roll Width Maximum: 7″ (177.8 mm)
Screw Down: Motorized with Push Buttons
Strip Tensioning Rolls: Entry and Exit Tensioning Rolls
EQUIPPED WITH:
Upper Embossing Rolls
Coolant Pump
Entrance Guide
Emergency Stop
Push Button Start / Stop Controls

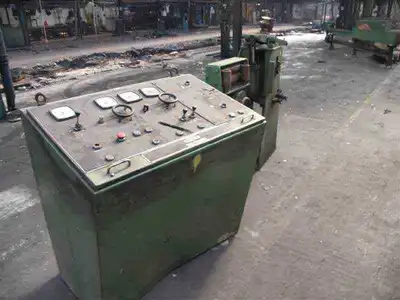

Control Panel

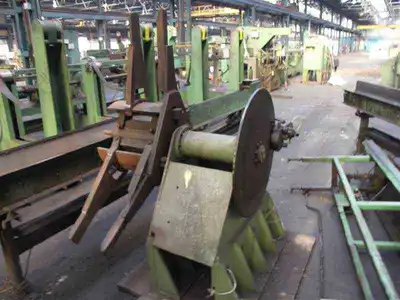

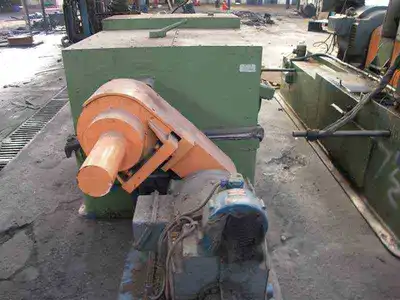

Uncoiler: 12″ Width, 60″ OD, 16-20″ ID with Air Brakes

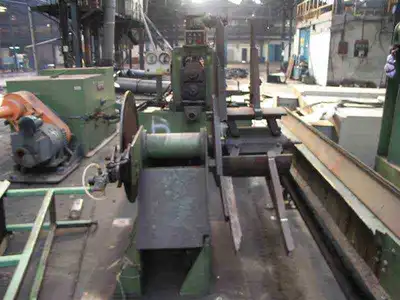

Recoiler: 12″ Width, 60″ OD, 18 3/4″ ID with 15 HP DC Motor
MAIN DRIVE:

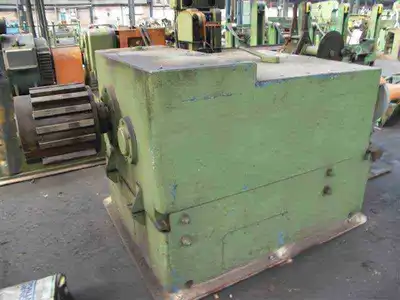

DC Motor through Renold 40 To 1 Worm Reduction Gearbox (to be Confirmed)
Double Helical Splitter to Roll Drive Spindle

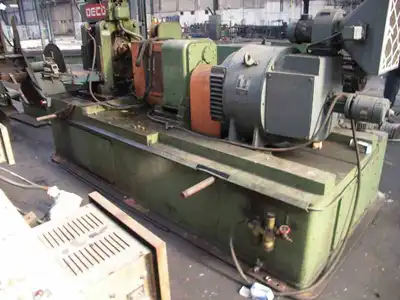

MAIN DRIVE MOTOR:
75 HP DC, 114 / 1140 RPM (Separate Excitation)
NOTE: This Machine was Embossing the Strip for the ID of Tubing.
OVERALL DIMENSIONS: 12′ x 6′ 4″ x 6′ 8″
APPROXIMATE WEIGHT: 20,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
