22″ x 4″ x 10,000 Lb. TACKE OLALDE Slitting Line
Overview
Specifications
| Dimensions | Multiple Pieces, 1 truckload | Multiple Pieces, 1 truckload |
|---|---|---|
| Weight | 40,000 Lbs. | 40,000 Lbs. |
SPECIFICATIONS:
Materials: Mild Steel
Shear Strength: 50,000 PSI (22,679 kgs.)
Maximum Coil Weight: 10,000 Lbs. (4,535 kgs.)
Coil I.D.:
Entry: 16″ – 24″ (406 – 609 mm)
Recoiler: 20″ (508 mm)
Line Direction: Right to Left
Uncoiler:
Maximum Strip Width: 24″ (609 mm)
Maximum Coil Weight: 10,000 Lbs. (4,535 kgs.)
Coil I.D. Range: 16″ – 20″ (406 – 508 mm)
Coil O.D.: 72″ Maximum (1828 mm)
Hydraulic Feed Up Drive
Air Brake
Manual Expansion

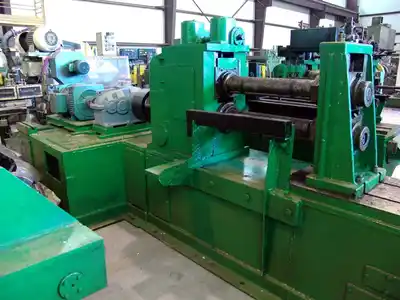

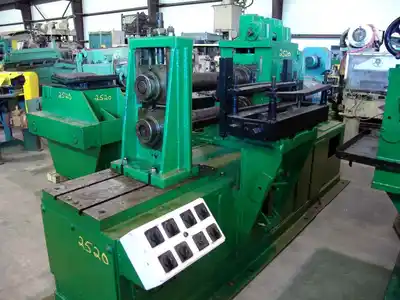

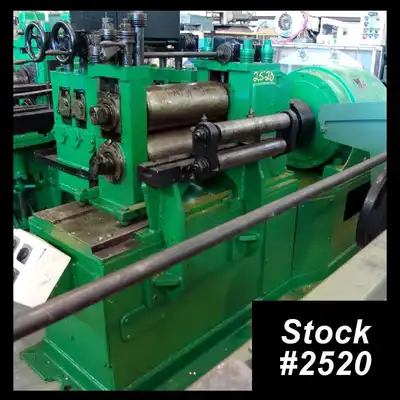

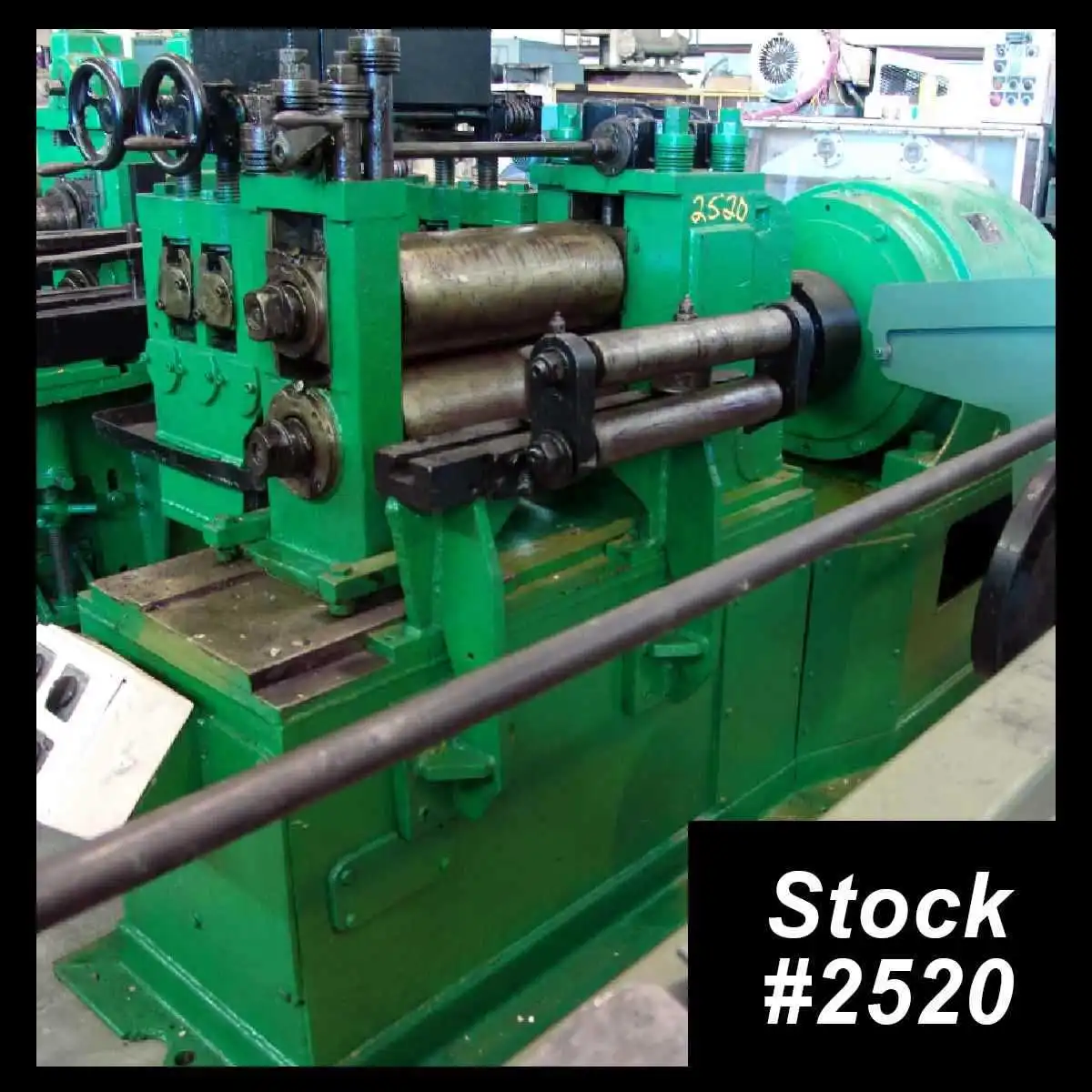

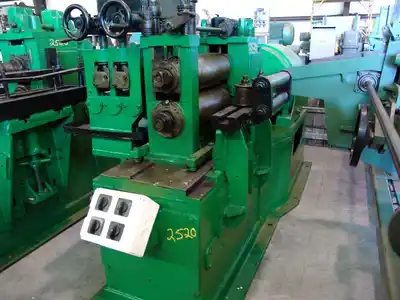

TACKE OLADE Slitter:
Arbors: 4″ Diameter x 22″ Long
Entry Guide
Driven Pinch Rolls
Motor With Reducer

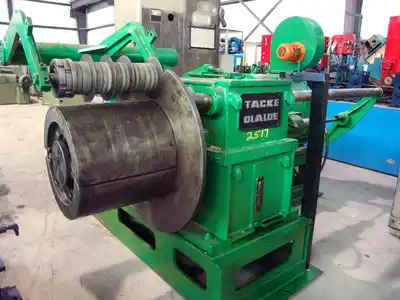

TACKE OLADE Recoiler:
Drum for 20″ I.D. 508 mm)
Width: 16″ 406 mm)
Manual Gripper Slot and Expansion
Overarm Separator
Hydraulic Push Off Plate
Drive: 60 HP, 1175 RPM D.C. 100 HP, DC Motor
ELECTRICAL:
Operator Control Console
Electrical Panels

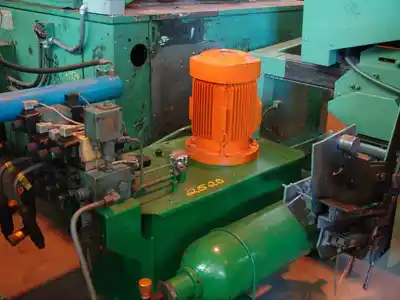

(2) Hydraulic Power Packs
CONDITION: Good as Taken From Service
OVERALL DIMENSIONS: Multiple Pieces, 1 truckload
APPROXIMATE WEIGHT: 40,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
Equipped With

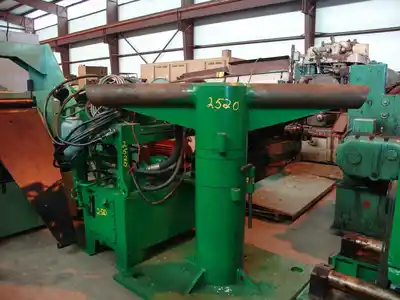

EQUIPPED WITH: Turnstyle, 2-Arm: Maximum Coil Width: 24″ (609 mm) Maximum Coil OD: 72″ (1828 mm) Coil Car Lifter
